145-0701 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Beta
⌘K

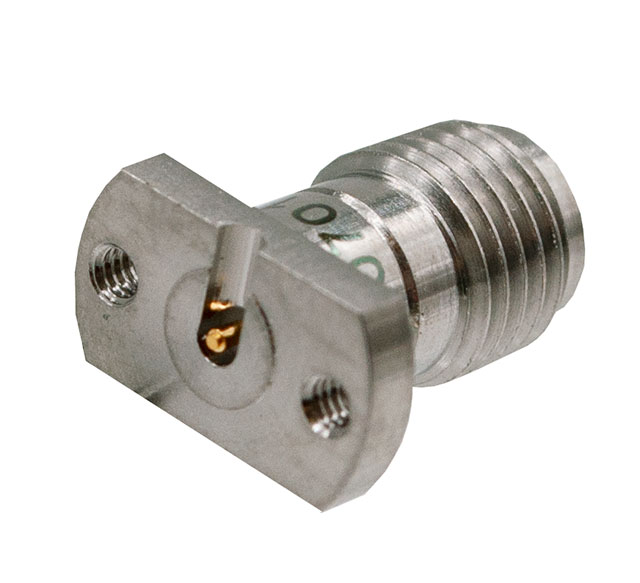

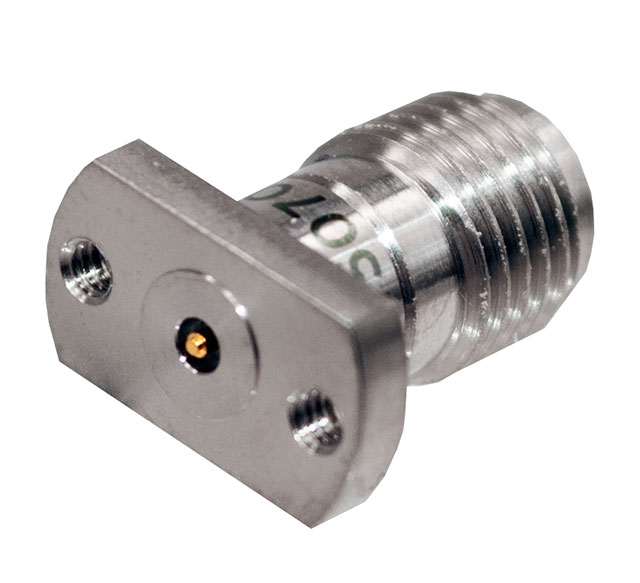

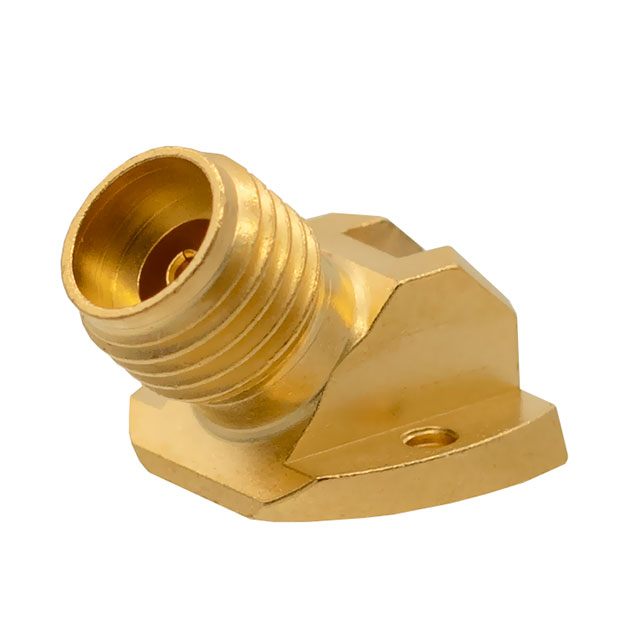

CONN 2.92MM JACK STR 50OHM 40GHZ
| Part | Body Material | Dielectric Material | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Features | Frequency - Max [Max] | Shield Termination | Number of Ports | Center Contact Material | Mounting Type | Impedance | Connector Type | Contact Termination | Mounting Feature | Fastening Type | Connector Style [x] | Housing Color | Body Finish | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Johnson | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | 500 | -55 C | 125 °C | Mounting Hardware | 40 GHz | Screw | 1 | Beryllium Copper | Panel Mount | 50 Ohms | Female Socket Jack | Compression | Flange | Threaded | 2.92 mm | Silver | ||
 Cinch Connectivity Solutions Johnson | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | -40 C | 85 °C | Mounting Hardware | 40 GHz | Solder | 1 | Beryllium Copper | Surface Mount Through Hole | 50 Ohms | Female Socket Jack | Solder | Threaded | 2.92 mm | Gold | Gold | 250 V | |
 Cinch Connectivity Solutions Johnson | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | 500 | -55 C | 125 °C | Mounting Hardware | 40 GHz | Screw | 1 | Beryllium Copper | Panel Mount | 50 Ohms | Female Socket Jack | Compression | Flange | Threaded | 2.92 mm | Silver |
