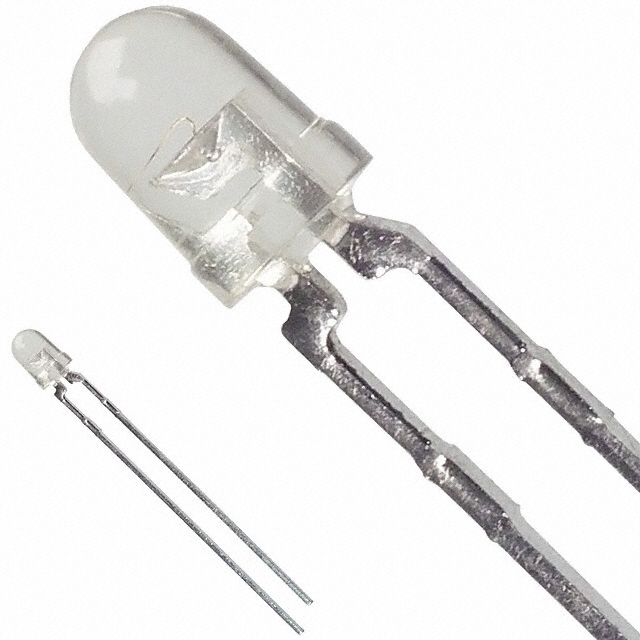

HLMP-1440 Series

Catalog

LED YELLOW CLEAR T-1 T/H

Part	Color	Viewing Angle	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Test	Millicandela Rating	Wavelength - Peak	Lens Transparency	Wavelength - Dominant	Lens Color	Supplier Device Package	Package / Case	Lens Style	Configuration	Lens Size	Lens Size	Height (Max) [z]
Broadcom Limited HLMP-1440	Yellow	24 °	Through Hole	2.1 V	20 mA	45 mcd	583 nm	Clear	585 nm	Colorless	T-1	Radial	Round with Domed Top	Standard	3 mm	T-1	6.35 mm
Broadcom Limited HLMP-1440-H00A2	Yellow	24 °	Right Angle Through Hole	2.1 V	20 mA	45 mcd	583 nm	Clear	585 nm		T-1	Radial	Round with Domed Top	Standard	3 mm	T-1	6.35 mm
Broadcom Limited HLMP-1440-HIB00	Yellow	24 °	Through Hole	2.1 V	20 mA	45 mcd	583 nm	Clear	585 nm		T-1	Radial	Round with Domed Top	Standard	3 mm	T-1	6.35 mm
Broadcom Limited HLMP-1440-HI000	Yellow	24 °	Through Hole	2.1 V	20 mA	45 mcd	583 nm	Clear	585 nm		T-1	Radial	Round with Domed Top	Standard	3 mm	T-1	6.35 mm
