896-100 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 100POS 0.125

Part	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Contact Finish	Read Out	Termination Rows	Termination	Features	Card Type	Gender	Number of Positions/Bay/Row [custom]	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Contact Material	Pitch [x]	Pitch [x]	Mounting Type	Flange Feature	Flange Feature

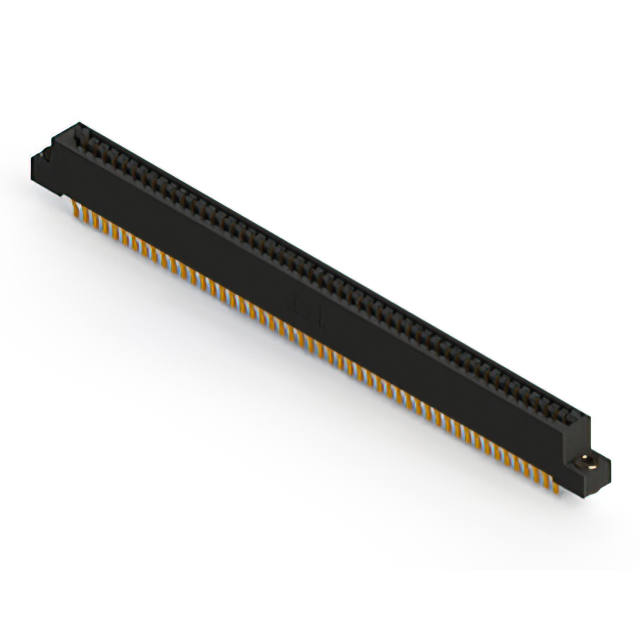

EDAC Inc. 896-100-560-203	Cantilever	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Flush Mount	2.95 mm	125 °C	-40 °C	Black	100	Gold	Dual	2	Solder	Card Extender	Non Specified - Dual Edge	Female	50	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Copper Alloy	0.125 in	3.18 mm	Board Edge Straddle Mount

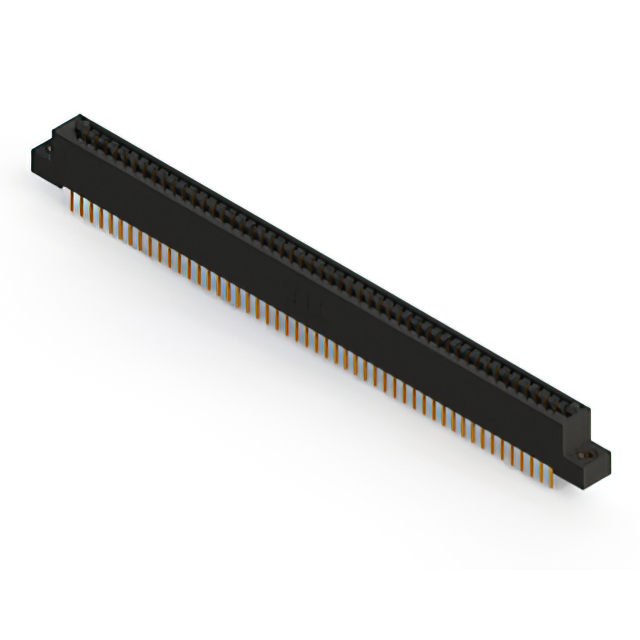

EDAC Inc. 896-100-540-207	Cantilever	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening		125 °C	-40 °C	Black	100	Gold	Dual	2	Wire Wrap		Non Specified - Dual Edge	Female	50	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Copper Alloy	0.125 in	3.18 mm	Through Hole
EDAC Inc. 896-100-560-807	Cantilever	10 Áin	0.25 Ám		M3 Threaded Insert Top Mount Opening		125 °C	-40 °C	Black	100	Gold	Dual	2	Solder	Card Extender	Non Specified - Dual Edge	Female	50	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Copper Alloy	0.125 in	3.18 mm	Board Edge Straddle Mount

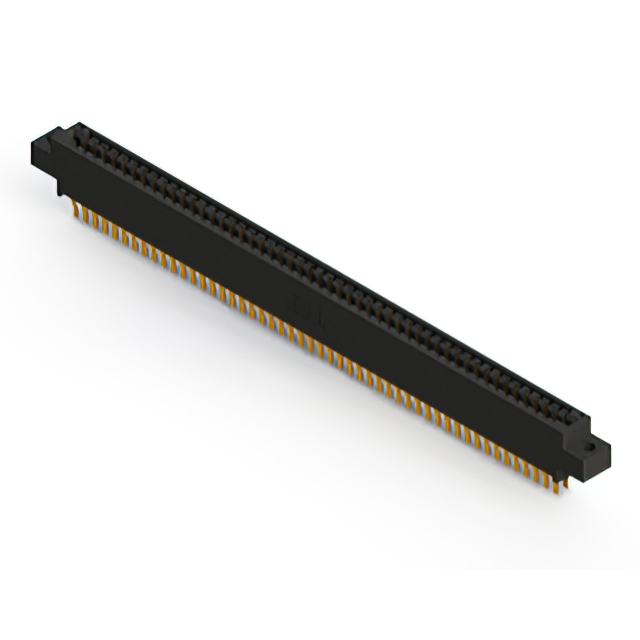

EDAC Inc. 896-100-560-804	Cantilever	10 Áin	0.25 Ám	0.156 in	Top Mount Opening Unthreaded	3.96 mm	125 °C	-40 °C	Black	100	Gold	Dual	2	Solder	Card Extender	Non Specified - Dual Edge	Female	50	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Copper Alloy	0.125 in	3.18 mm	Board Edge Straddle Mount
EDAC Inc. 896-100-559-812	Cantilever	10 Áin	0.25 Ám		Side Mount Opening Unthreaded		125 °C	-40 °C	Black	100	Gold	Dual	2	Solder		Non Specified - Dual Edge	Female	50	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Copper Alloy	0.125 in	3.18 mm	Through Hole Right Angle	3.25 mm	0.128 in

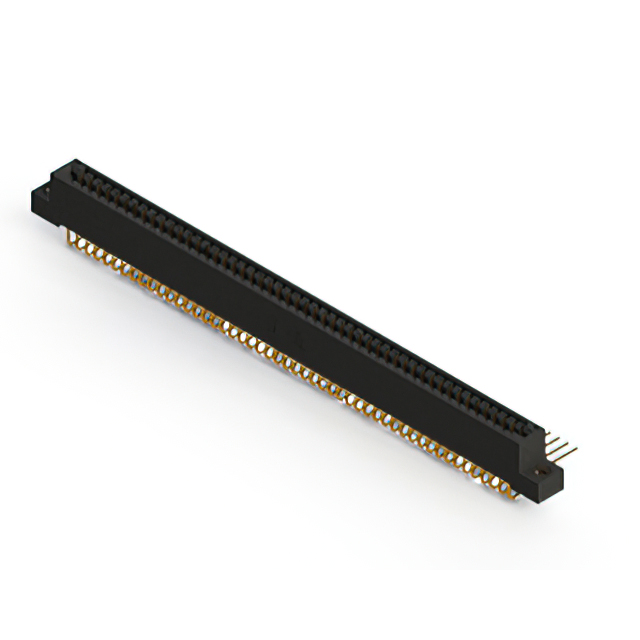

EDAC Inc. 896-100-559-208	Cantilever	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening		125 °C	-40 °C	Black	100	Gold	Dual	2	Solder		Non Specified - Dual Edge	Female	50	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Copper Alloy	0.125 in	3.18 mm	Through Hole Right Angle
EDAC Inc. 896-100-560-812	Cantilever	10 Áin	0.25 Ám		Side Mount Opening Unthreaded		125 °C	-40 °C	Black	100	Gold	Dual	2	Solder	Card Extender	Non Specified - Dual Edge	Female	50	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Copper Alloy	0.125 in	3.18 mm	Board Edge Straddle Mount	3.25 mm	0.128 in

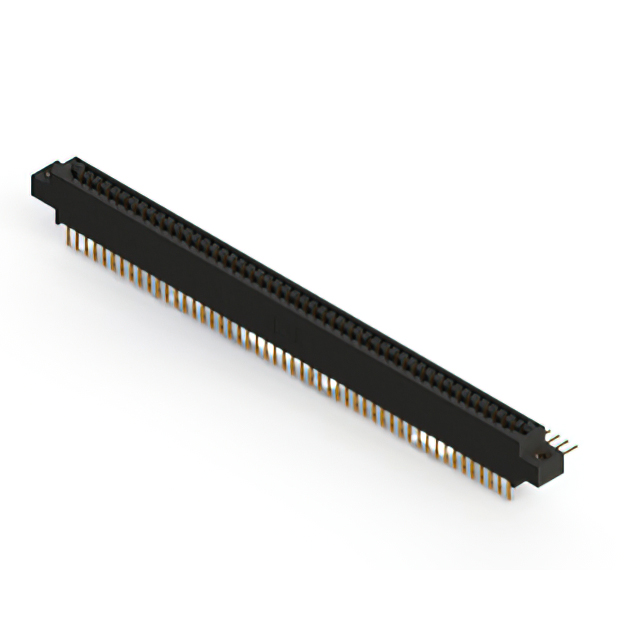

EDAC Inc. 896-100-558-808	Cantilever	10 Áin	0.25 Ám		4-40 Threaded Insert Top Mount Opening		125 °C	-40 °C	Black	100	Gold	Dual	2	Solder		Non Specified - Dual Edge	Female	50	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Copper Alloy	0.125 in	3.18 mm	Through Hole Right Angle
EDAC Inc. 896-100-558-804	Cantilever	10 Áin	0.25 Ám	0.156 in	Top Mount Opening Unthreaded	3.96 mm	125 °C	-40 °C	Black	100	Gold	Dual	2	Solder		Non Specified - Dual Edge	Female	50	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Copper Alloy	0.125 in	3.18 mm	Through Hole Right Angle

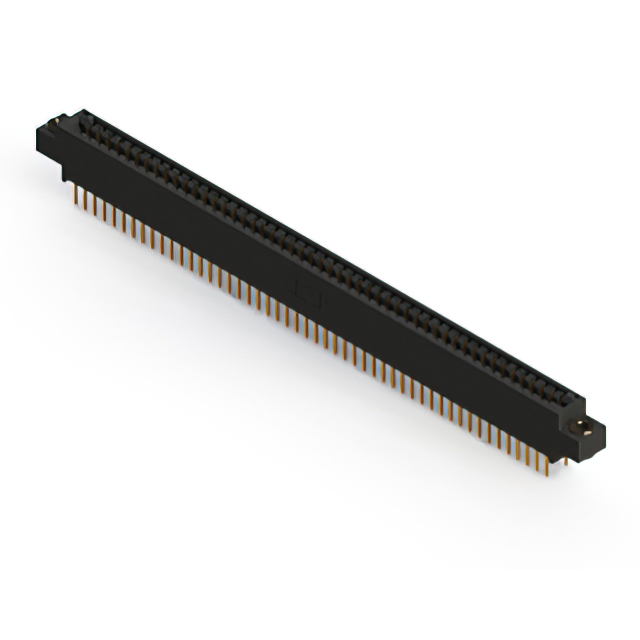

EDAC Inc. 896-100-541-803	Cantilever	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	125 °C	-40 °C	Black	100	Gold	Dual	2	Wire Wrap		Non Specified - Dual Edge	Female	50	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyphenylene Sulfide (PPS)	Copper Alloy	0.125 in	3.18 mm	Through Hole
