50.612 Series

Catalog

CABLE GLAND 3-6MM M12 S STEEL

Part	Material	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Thread Size	Ingress Protection	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Color	Includes	Type	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]

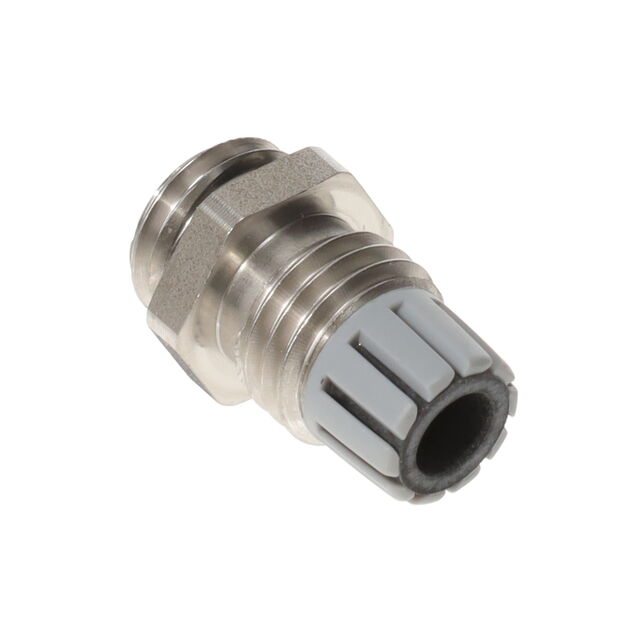

Jacob GmbH 50.612 ES	Stainless Steel	-40 C	100 °C	3 mm	0.118 in	0.197 in	5 mm	M12x1.5	IP68 - Dust Tight Waterproof	6 mm	0.236 in	Silver	O-Ring Seal	Cable Gland

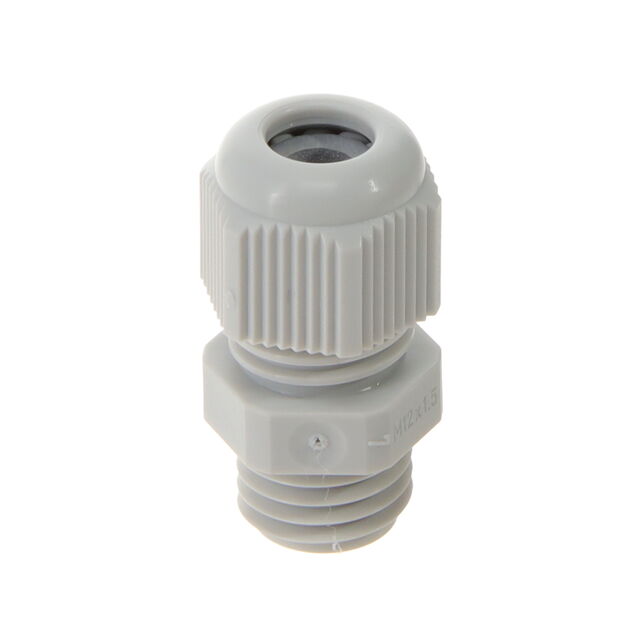

Jacob GmbH 50.612PA/R7035		-40 C	100 °C			0.315 "	8 mm	M12x1.5	IP68 - Dust Tight Waterproof	5 mm	0.197 in	Gray	Sealing Ring	Cable Gland	2 mm	0.079 in

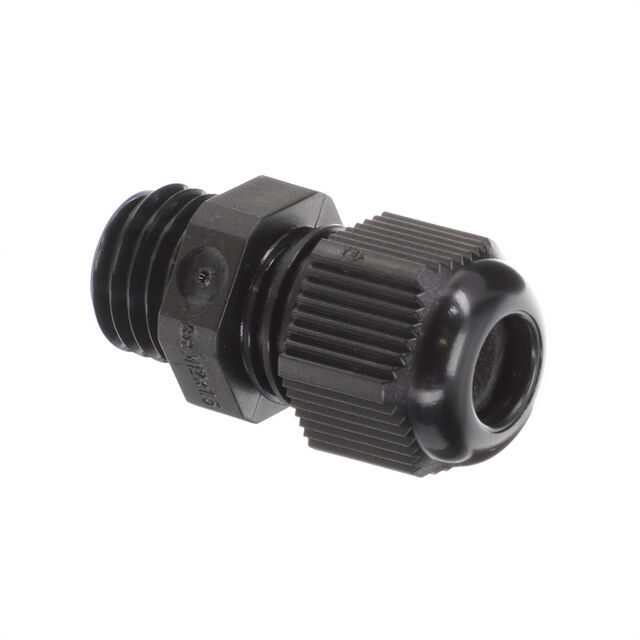

Jacob GmbH 50.612 PA/SW		-40 C	100 °C	3 mm	0.118 in	0.315 "	8 mm	M12x1.5	IP68 - Dust Tight Waterproof	6.5 mm	0.256 in	Black	Sealing Ring	Cable Gland

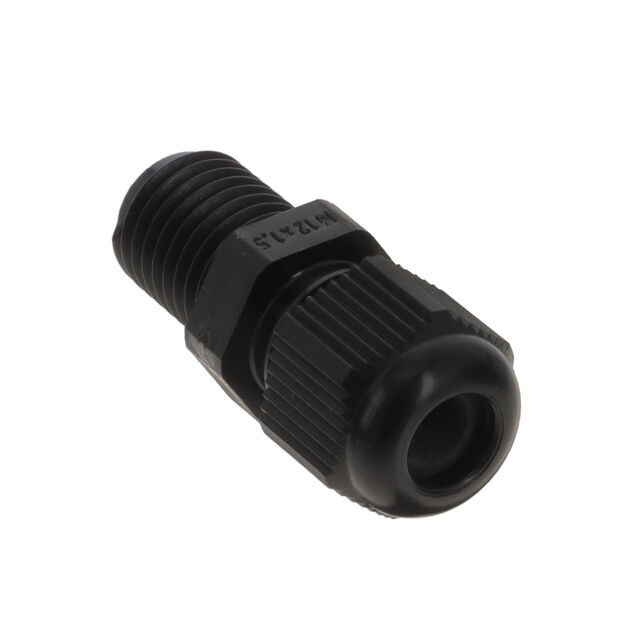

Jacob GmbH 50.612 PA/SWL		-40 C	100 °C	3 mm	0.118 in	0.591 in	15 mm	M12x1.5	IP68 - Dust Tight Waterproof	6.5 mm	0.256 in	Black	Sealing Ring	Cable Gland
Jacob GmbH 50.612 PA7035		-40 C	100 °C	3 mm	0.118 in	0.315 "	8 mm	M12x1.5	IP68 - Dust Tight Waterproof	6.5 mm	0.256 in	Gray	Sealing Ring	Cable Gland
Jacob GmbH 50.612 PA/FL		-40 C	100 °C	3 mm	0.118 in	0.315 "	8 mm	M12x1.5	IP68 - Dust Tight Waterproof	6.5 mm	0.256 in	Gray	Sealing Ring	Cable Gland
Jacob GmbH 50.612 PA/RSW		-40 C	100 °C			0.315 "	8 mm	M12x1.5	IP68 - Dust Tight Waterproof	5 mm	0.197 in	Black	Sealing Ring	Cable Gland	2 mm	0.079 in

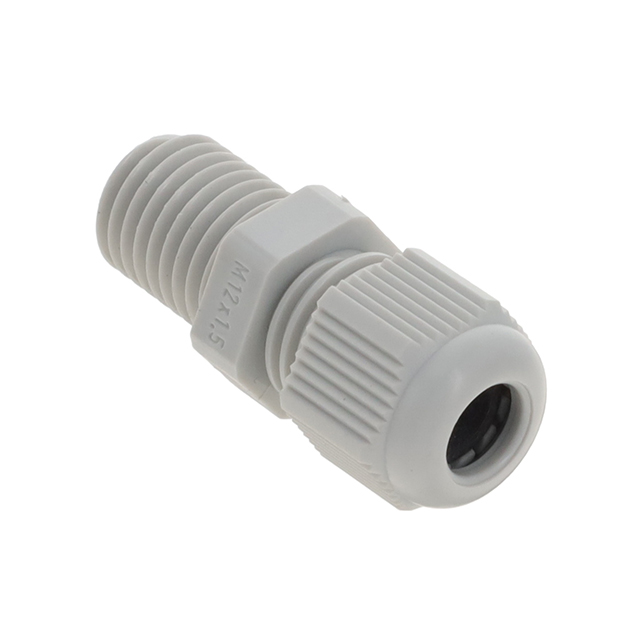

Jacob GmbH 50.612 PA7035L		-40 C	100 °C	3 mm	0.118 in	0.591 in	15 mm	M12x1.5	IP68 - Dust Tight Waterproof	6.5 mm	0.256 in	Gray	Sealing Ring	Cable Gland

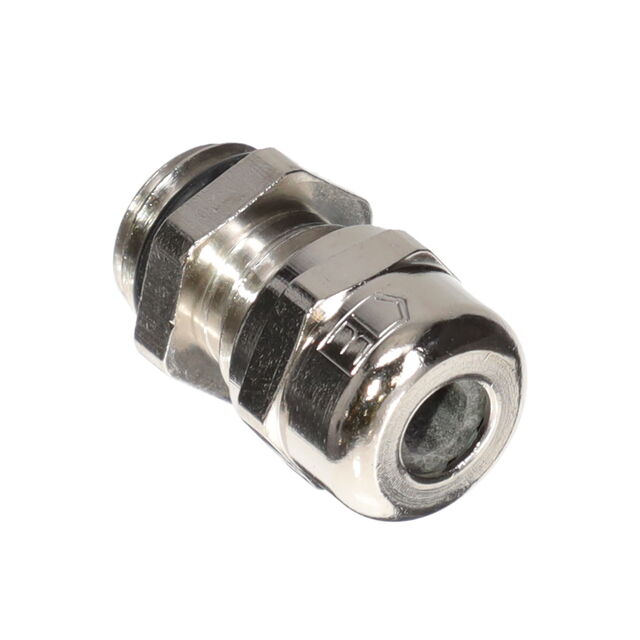

Jacob GmbH 50.612 M	Brass Nickel Plated	-40 C	100 °C	3 mm	0.118 in	0.197 in	5 mm	M12x1.5	IP68 - Dust Tight Waterproof	6 mm	0.236 in	Silver	O-Ring Seal	Cable Gland

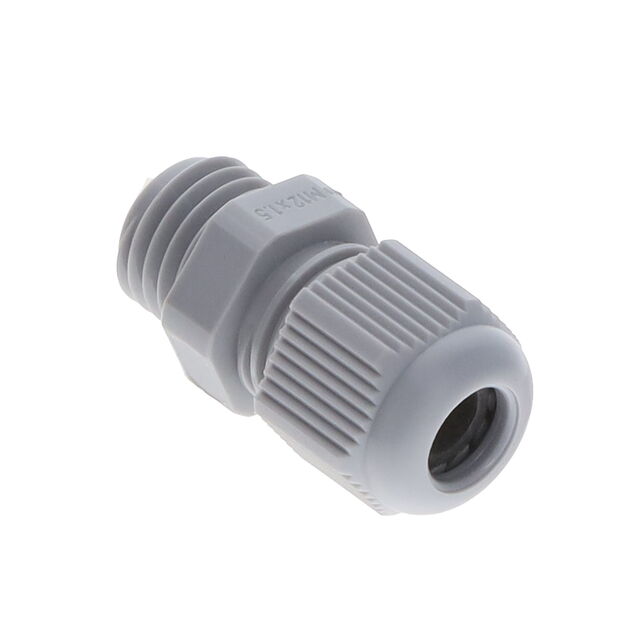

Jacob GmbH 50.612 PA7001		-40 C	100 °C	3 mm	0.118 in	0.315 "	8 mm	M12x1.5	IP68 - Dust Tight Waterproof	6.5 mm	0.256 in	Gray	Sealing Ring	Cable Gland
