25366 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

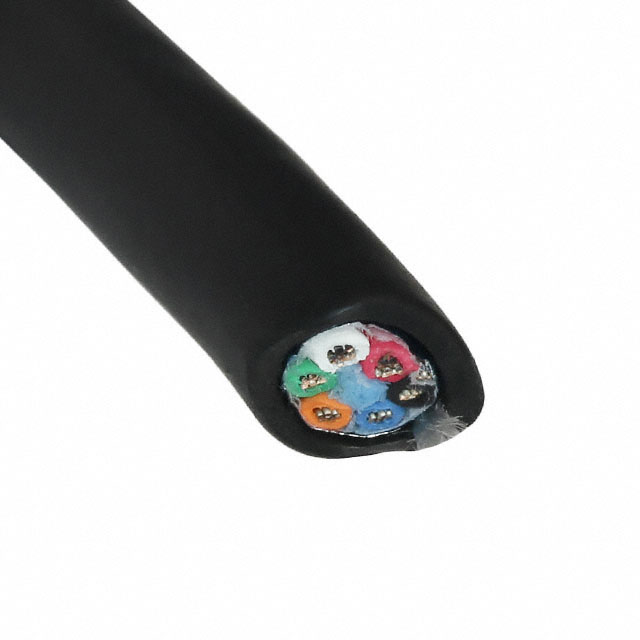

CABLE 6COND 16AWG BLK SHLD 1000'
| Part | Shield Material | Shield Coverage | Features | Conductor Insulation | Shield Type | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Number of Conductors | Conductor Strand [custom] | Conductor Strand [diameter] | Ratings | Wire Gauge | Voltage | Jacket (Insulation) Material | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Foil | Black | 0.813 mm | 0.032 in | Multi-Conductor | -30 ░C | 90 °C | 304.8 m | 1000 ft | 6 | 19 | 0.0117 in | ISO 10993 UL Style 20668 | 16 AWG | 300 VDC | Polyurethane (PU) | Copper Tinned | 0.347 in | 8.81 mm |
 ALPHA WIRE | Aluminum | 100 % | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Foil | Slate | 0.813 mm | 0.032 in | Multi-Conductor | -30 ░C | 90 °C | 304.8 m | 1000 ft | 6 | 19 | 0.0117 in | ISO 10993 UL Style 20668 | 16 AWG | 300 VDC | Polyurethane (PU) | Copper Tinned | 0.347 in | 8.81 mm |
ALPHA WIRE | Aluminum | 100 % | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Foil | Yellow | 0.813 mm | 0.032 in | Multi-Conductor | -30 ░C | 90 °C | 304.8 m | 1000 ft | 6 | 19 | 0.0117 in | ISO 10993 UL Style 20668 | 16 AWG | 300 VDC | Polyurethane (PU) | Copper Tinned | 0.347 in | 8.81 mm |
