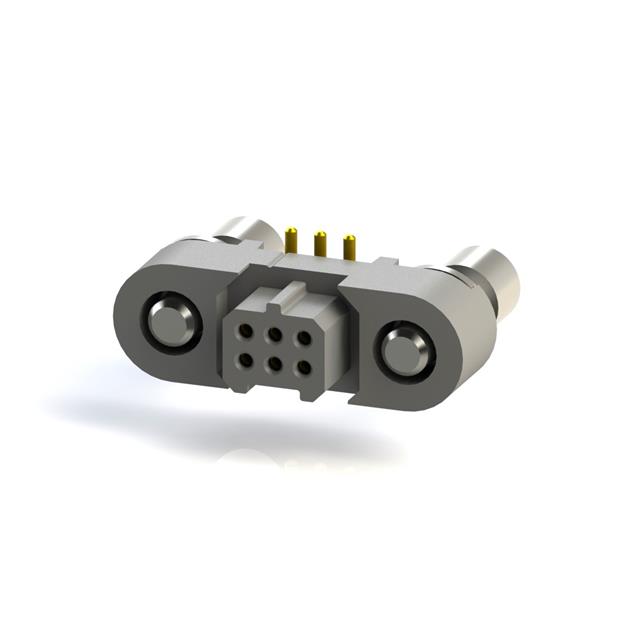

A222T06V Series
Manufacturer: Nicomatic
Beta
⌘K
FEM. 6POS STRAIGHT SMT 1.27MM
| Part | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Insulation Material | Number of Positions | Material Flammability Rating | Current Rating (Amps) | Connector Type | Pitch - Mating | Pitch - Mating | Fastening Type | Voltage Rating | Termination | Insulation Height [z] | Insulation Height [z] | Number of Rows [custom] | Insulation Color | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Type | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Features | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | Circular | 0.15 µm | 5.9 µin | Copper Alloy | Liquid Crystal Polymer (LCP) | 6 | UL94 V-0 | 2.5 A | Receptacle | 1 mm | 0.039 in | Push-Pull | 600 VAC | Solder | 4 mm | 0.157 in | 2 | Black | 5.9 µin | 0.15 µm | Female Socket | All | 0.039 in | 1 mm | Surface Mount | -65 ░C | 200 °C | Gold | Jackscrews Mating Flange Mounting Flange Polarizing Key | Gold |
