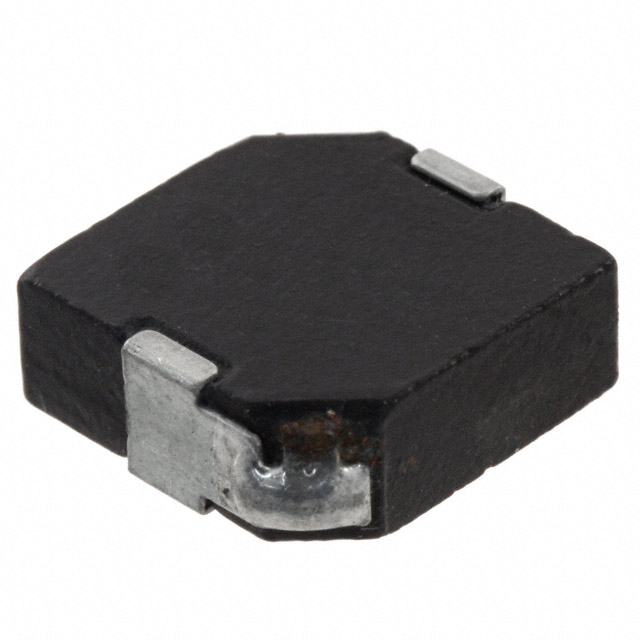

PM12645S Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 1.8UH 21A 4.7 MOHM SMD
| Part | Package / Case | Inductance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Inductance Frequency - Test | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Material - Core | Shielding | DC Resistance (DCR) | Current - Saturation (Isat) | Current Rating (Amps) | Type | Tolerance | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Nonstandard | 1.8 µH | 0.232 " | 5.9 mm | Surface Mount | 100 kHz | 0.547 in | 13.9 mm | 0.531 in | 13.5 mm | -55 C | 150 °C | Iron | Shielded | 4.7 mOhm | 40 A | 21 A | Drum Core Wirewound | 20 % | |
Bourns Inc. | Nonstandard | 2.7 µH | 0.232 " | 5.9 mm | Surface Mount | 100 kHz | 0.547 in | 13.9 mm | 0.531 in | 13.5 mm | -55 C | 150 °C | Iron | Shielded | 32 A | 17 A | Drum Core Wirewound | 20 % | 7.3 mOhm |
