ED110 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 3POS SIDE ENT 7.5MM PCB
| Part | Clamp Material - Plating [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Contact Material - Plating | Screw Thread | Torque - Screw | Torque - Screw | Current | Number of Levels | Features | Positions Per Level | Wire Gauge [Min] | Wire Gauge [Max] | Pitch | Pitch | Wire Termination | Mating Orientation | Color | Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

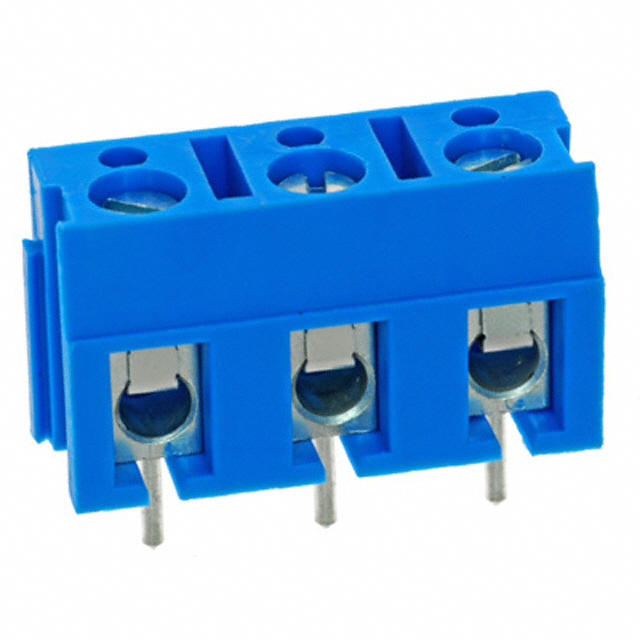

 On Shore Technology Inc. | Stainless Steel | -30 ░C | 105 ░C | Polyamide (PA) Nylon | Brass | M3 | 4.4 Lb-In | 0.5 Nm | 20 A | 1 | Interlocking (Side) | 3 | 14 AWG | 22 AWG | 0.295 in | 7.5 mm | Screw - Leaf Spring Wire Guard | Horizontal with Board | Blue | 300 VDC | Through Hole |

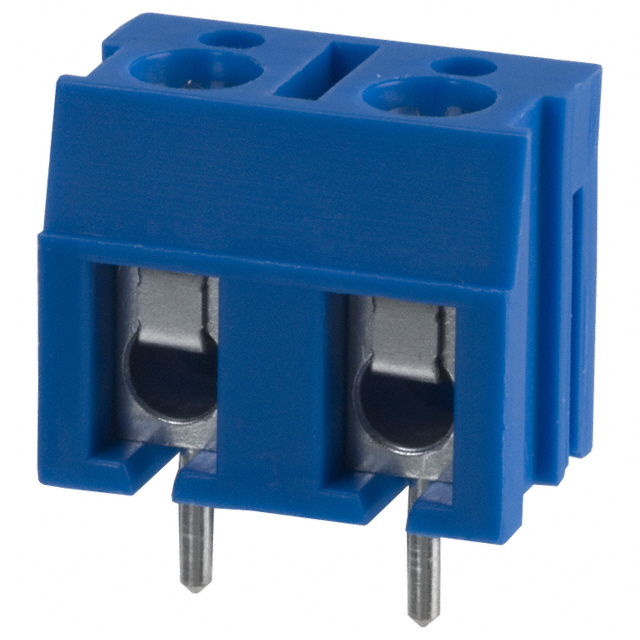

 On Shore Technology Inc. | Stainless Steel | -30 ░C | 105 ░C | Polyamide (PA) Nylon | Brass | M3 | 4.4 Lb-In | 0.5 Nm | 20 A | 1 | Interlocking (Side) | 2 | 14 AWG | 22 AWG | 0.295 in | 7.5 mm | Screw - Leaf Spring Wire Guard | Horizontal with Board | Blue | 300 VDC | Through Hole |
