LME49720 Series

Catalog

LME49720 OP AMP EVALUATION BOARD

Part	Slew Rate	Supplied Contents	Board Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Current - Supply (Main IC)	Channels per IC	Amplifier Type	Output Type	Utilized IC / Part	Voltage - Input Offset	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Supply Span (Max) [Max]	Gain Bandwidth Product	Voltage - Supply Span (Min) [Min]	Mounting Type	Package / Case	Current - Input Bias	Current - Supply	Number of Circuits	Package / Case	Package / Case

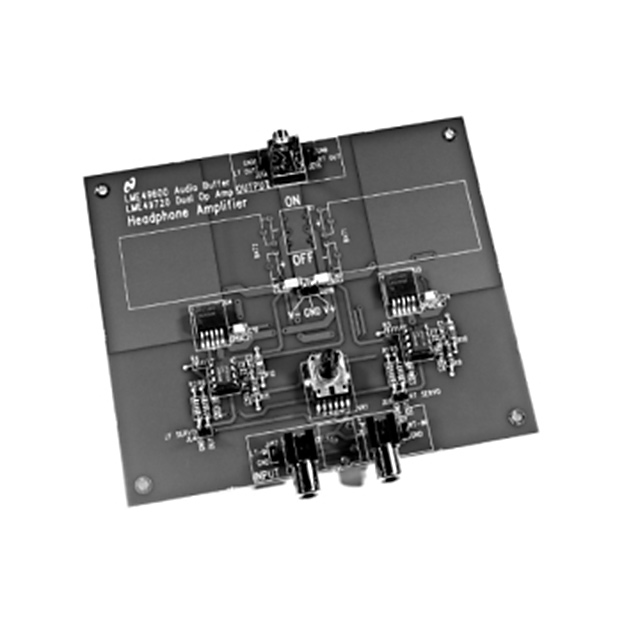

Texas Instruments LME49720HABD	20 V/çs	Board(s)	Fully Populated	17 V	-2.5 V	10 mA	2 - Dual	Audio	Single-Ended	LME49720
Texas Instruments LME49720MABD	20 V/çs	Board(s)	Fully Populated	17 V	-2.5 V	10 mA	2 - Dual	Audio	Single-Ended	LME49720
Texas Instruments LME49720HA/NOPB	20 V/çs							Audio			100 çV	85 °C	-40 °C	TO-99-8	34 V	55 MHz	5 V	Through Hole	TO-99-8 Metal Can	10 nA	10 mA	2
Texas Instruments LME49720NA/NOPB	20 V/çs							Audio			100 çV	85 °C	-40 °C	8-PDIP	34 V	55 MHz	5 V	Through Hole	8-DIP	10 nA	10 mA	2	0.3 in	7.62 mm

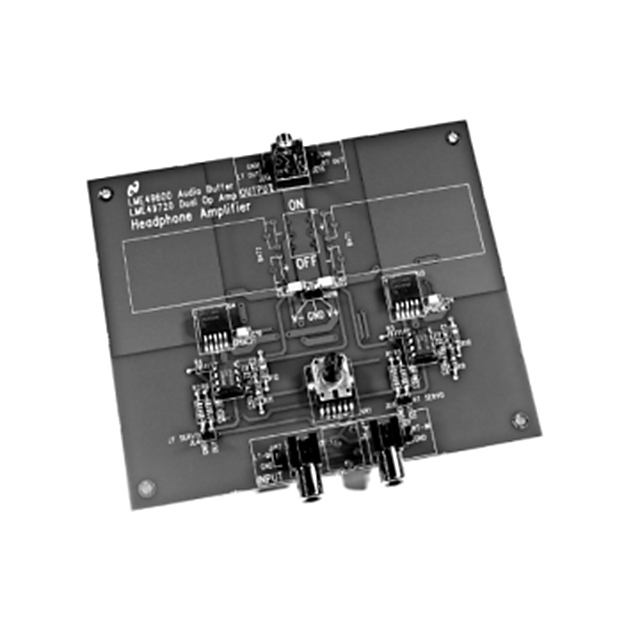

Texas Instruments LME49720NABD	20 V/çs	Board(s)	Fully Populated	17 V	-2.5 V	10 mA	2 - Dual	Audio	Single-Ended	LME49720
