MS8038 Series

Catalog

FAN AXIAL 80X38MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Material - Frame	Static Pressure	Static Pressure	Features	Termination	Air Flow	Air Flow	Weight [custom]	Weight [custom]	Width [y]	RPM	Ingress Protection	Fan Type	Noise	Bearing Type	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]
Mechatronics Fan Group MS8038L24B1+6-FHR-2EM	0.28 A	Plastic	Plastic	184.3 Pa	0.74 in H2O	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	80.7 CFM	2.26 m³/min	177.35 g	0.391 lb	38 mm	6000 RPM	IP68 - Dust Tight Waterproof	Tubeaxial	50 dB(A)	Ball	24 VDC	80 mm	80 mm

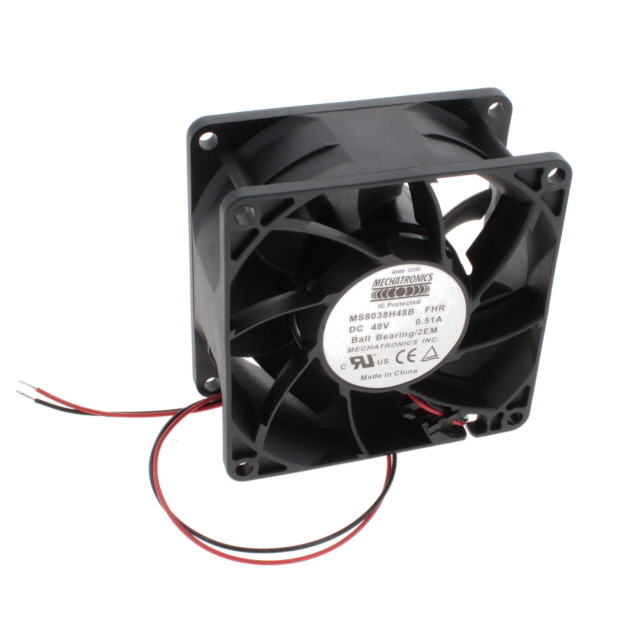

Mechatronics Fan Group MS8038H48B-FHR	0.51 A	Plastic	Plastic	385 Pa	1.55 in H2O	Auto Restart	2 Wire Leads	120.5 CFM	3.37 mł/min	177.35 g	0.391 lb	38 mm	10000 RPM		Tubeaxial	77 dB	Ball	48 VDC	80 mm	80 mm
Mechatronics Fan Group MS8038M24B1+6-FHR-2EM	0.72 A	Plastic	Plastic	303.9 Pa		Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	109.2 CFM	3.06 m³/min	177.35 g	0.391 lb	38 mm	8000 RPM	IP68 - Dust Tight Waterproof	Tubeaxial	62 dB(A)	Ball	24 VDC	80 mm	80 mm	1.22 in H2O
Mechatronics Fan Group MS8038H12B-FHR	2.24 A	Plastic	Plastic	385 Pa	1.55 in H2O	Auto Restart	2 Wire Leads	120.5 CFM	3.37 mł/min	177.35 g	0.391 lb	38 mm	9000 RPM		Tubeaxial	62 dB(A)	Ball	12 VDC	80 mm	80 mm

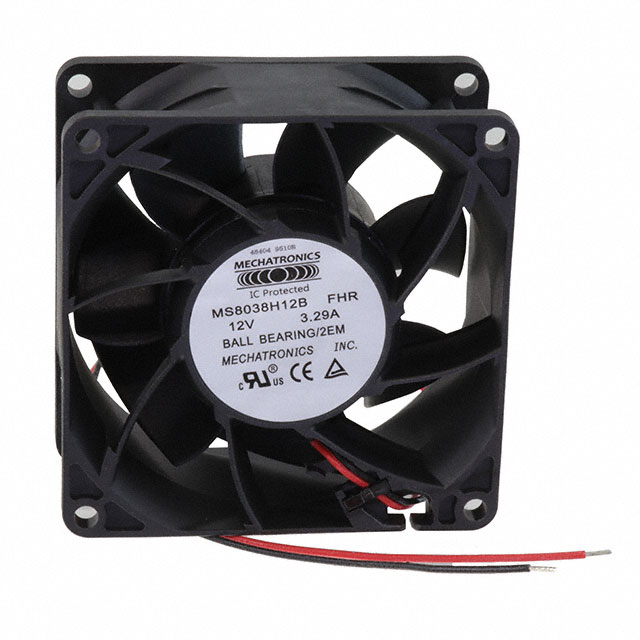

Mechatronics Fan Group MS8038H12B-FHR-2EM		Plastic	Plastic	385 Pa	1.55 in H2O	Auto Restart	2 Wire Leads	120.5 CFM	3.37 mł/min	177.35 g	0.391 lb	38 mm	9000 RPM	IP68 - Dust Tight Waterproof	Tubeaxial	62 dB(A)	Ball	12 VDC	80 mm	80 mm
Mechatronics Fan Group MS8038H48B1+6-FHR	0.51 A	Plastic	Plastic	385 Pa	1.55 in H2O	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	120.5 CFM	3.37 mł/min	177.35 g	0.391 lb	38 mm	10000 RPM		Tubeaxial	77 dB	Ball	48 VDC	80 mm	80 mm
Mechatronics Fan Group MS8038H48B1+6-FHR-2EM	0.51 A	Plastic	Plastic	385 Pa	1.55 in H2O	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	120.5 CFM	3.37 mł/min	177.35 g	0.391 lb	38 mm	10000 RPM	IP68 - Dust Tight Waterproof	Tubeaxial	77 dB	Ball	48 VDC	80 mm	80 mm
Mechatronics Fan Group MS8038M48B-FHR-2EM	0.34 A	Plastic	Plastic	303.9 Pa		Auto Restart	2 Wire Leads	109.2 CFM	3.06 m³/min	177.35 g	0.391 lb	38 mm	8000 RPM	IP68 - Dust Tight Waterproof	Tubeaxial	62 dB(A)	Ball	48 VDC	80 mm	80 mm	1.22 in H2O

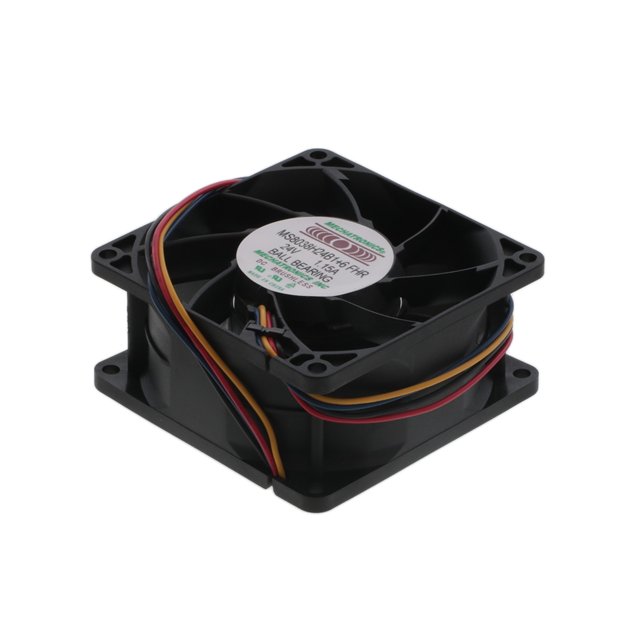

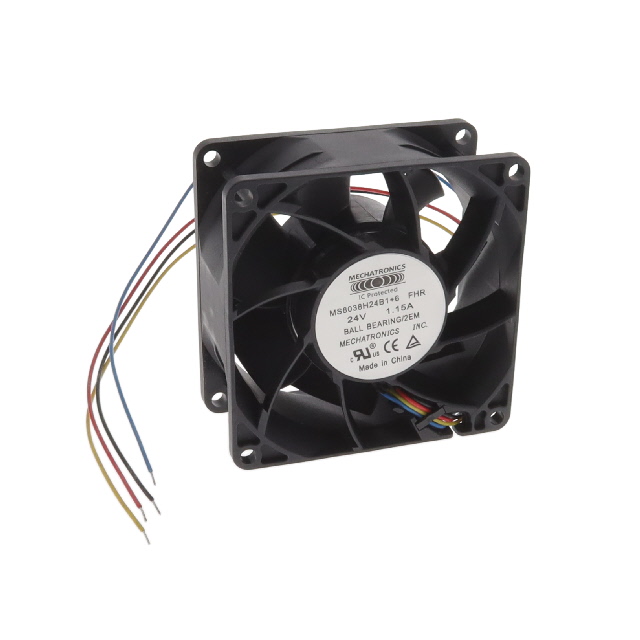

Mechatronics Fan Group MS8038H24B1+6-FHR-2EM	1.07 A	Plastic	Plastic	385 Pa	1.55 in H2O	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	120.5 CFM	3.37 mł/min	177.35 g	0.391 lb	38 mm	10000 RPM	IP68 - Dust Tight Waterproof	Tubeaxial	77 dB	Ball	24 VDC	80 mm	80 mm		70 °C	-10 °C
Mechatronics Fan Group MS8038H24B-FHR-2EM	1.07 A	Plastic	Plastic	385 Pa	1.55 in H2O	Auto Restart	2 Wire Leads	120.5 CFM	3.37 mł/min	177.35 g	0.391 lb	38 mm	10000 RPM	IP68 - Dust Tight Waterproof	Tubeaxial	77 dB	Ball	24 VDC	80 mm	80 mm
