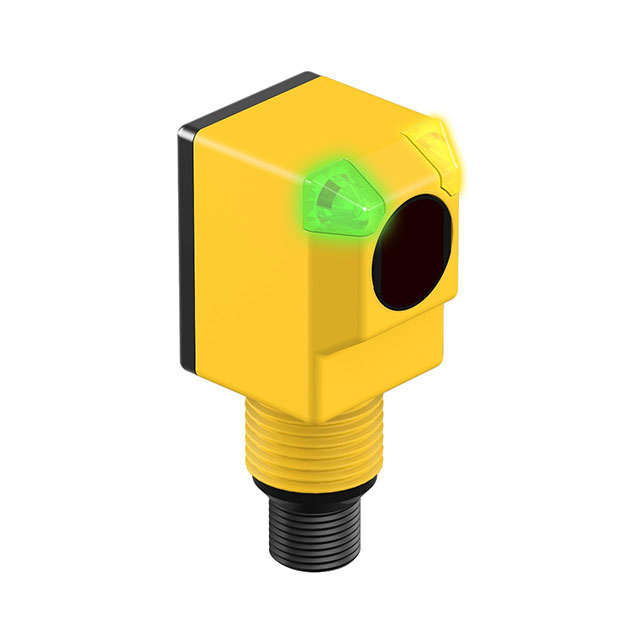

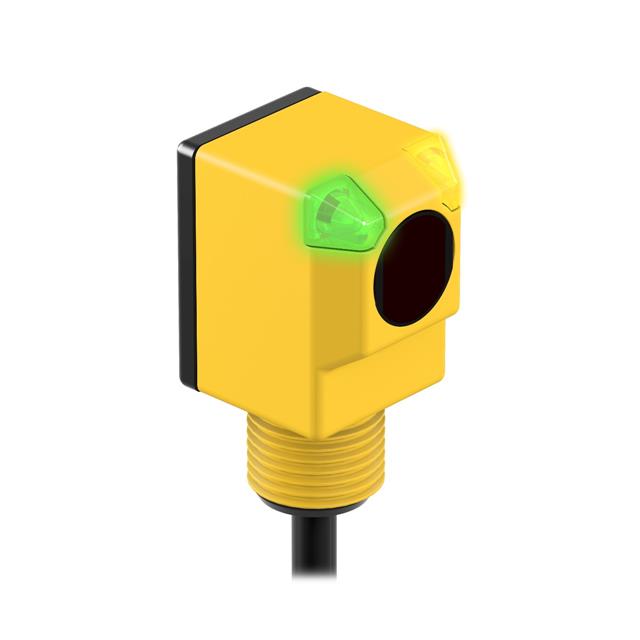

Q25SP6 Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
EZ-BEAM Q25 SERIES: POLARIZED RETRO
| Part | Ingress Protection | Light Source | Connection Method | Output Configuration | Sensing Distance | Sensing Distance | Voltage - Supply [Min] | Voltage - Supply [Max] | Cable Length | Cable Length | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Sensing Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | IEC IEC IP67 IP67 NEMA 6P | Red (680nm) | Cable | PNP - Dark-ON/Light-ON - Selectable | 2 m | 78.74 in | 10 VDC | 30 VDC | 78.74 " | 2 m | 3 ms | 70 °C | -40 C | Polarized Retroreflective |
 BANNER ENGINEERING | IEC IEC IP67 IP67 NEMA 6P | LED | Connector | PNP | 10 cm | 3.937 in | 10 VDC | 30 VDC | 3 ms | 70 °C | -40 C | Reflective | ||
BANNER ENGINEERING | IEC IEC IP67 IP67 NEMA 6P | LED | Connector | PNP - Dark-ON/Light-ON | 2000 cm | 787.402 in | 10 VDC | 30 VDC | 3 ms | 70 °C | -40 C | Through-Beam | ||
 BANNER ENGINEERING | IEC IEC IP67 IP67 NEMA 6P | LED | Connector | PNP - Dark-ON/Light-ON | 2 m | 78.74 in | 10 VDC | 30 VDC | 3 ms | 70 °C | -40 C | Polarized Retroreflective |
