CI4403M1 Series
Manufacturer: Cvilux USA
Beta
⌘K
3 POS 1.25MM(.049) WIRE TO BOARD
| Part | Contact Material | Style | Termination | Contact Type | Voltage Rating | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Connector Type | Shrouding | Insulation Height | Insulation Height | Material Flammability Rating | Number of Rows | Number of Positions Loaded | Mounting Type | Contact Finish - Post | Features | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

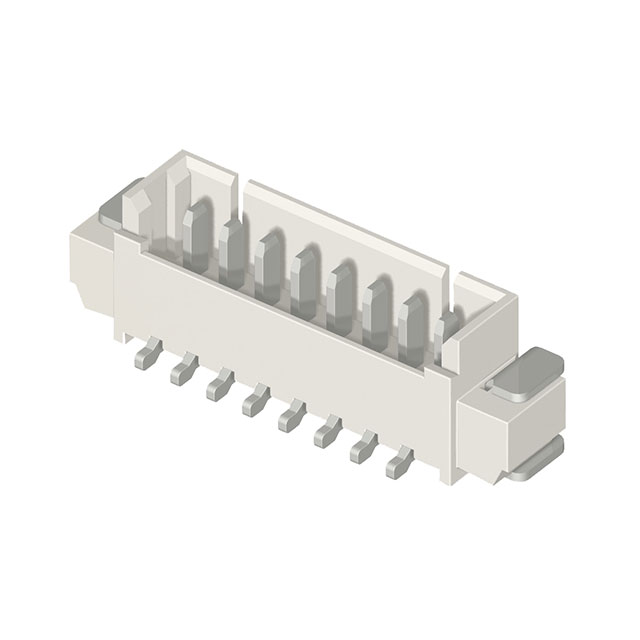

 Cvilux USA | Phosphor Bronze | Board to Cable/Wire | Solder | Tab | 125 VAC | Detent Lock | 85 °C | -40 C | Halogen Free Nylon 6T Polyamide (PA6T) | Header | Shrouded - 3 Wall | 4.8 mm | 0.189 in | UL94 V-0 | 1 | All | Surface Mount | Tin | Solder Retention | Natural | 0.049 in | 1.25 mm | Rectangular |

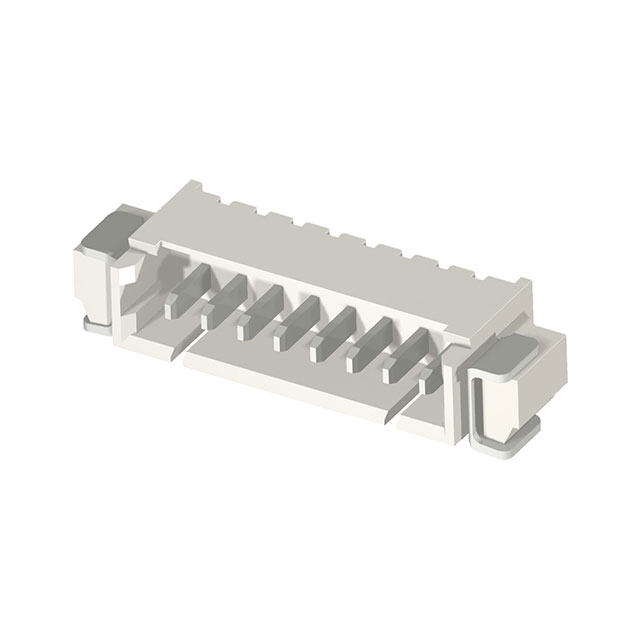

 Cvilux USA | Phosphor Bronze | Board to Cable/Wire | Solder | Tab | 125 VAC | Detent Lock | 85 °C | -40 C | Halogen Free Nylon 6T Polyamide (PA6T) | Header | Shrouded - 3 Wall | 3.4 mm | 0.134 in | UL94 V-0 | 1 | All | Right Angle Surface Mount | Tin | Solder Retention | Natural | 0.049 in | 1.25 mm | Rectangular |
