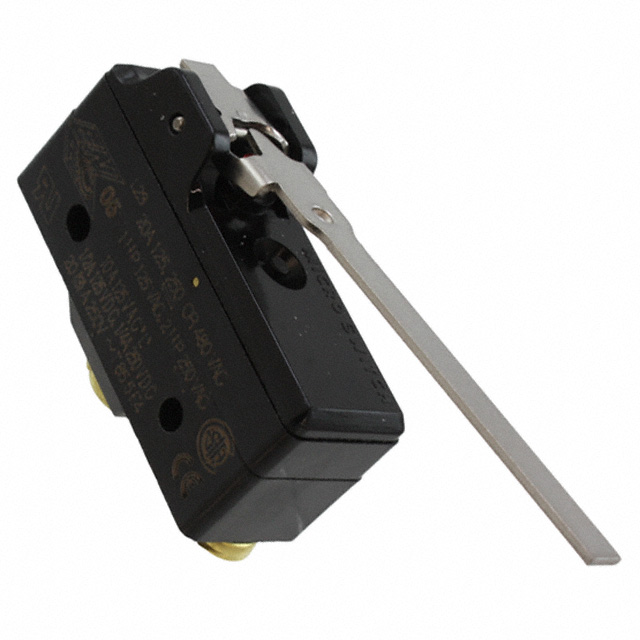

BA-2RV Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 20A 125V
| Part | Termination Style | Mechanical Life | Mounting Type | Release Force | Voltage Rating - AC | Pretravel | Pretravel | Operating Position | Operating Position | Voltage Rating - DC | Overtravel [x] | Overtravel [x] | Operating Force | Circuit | Current Rating (Amps) | Actuator Type | Differential Travel | Differential Travel | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Overtravel | Overtravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Screw Terminal | 20000000 Cycles | Chassis Mount | 15 gf | 125 V | 16 mm | 0.63 " | 0.75 " | 19.1 mm | 125 VDC | 0.077 in | 1.96 mm | 71 gf | SPDT | 20 A 500 mA | Lever Straight | 2.8 mm | 0.11 in | On-Mom | 85 °C | -55 °C | ||
Honeywell Sensing and Productivity Solutions | Screw Terminal | 20000000 Cycles | Chassis Mount | 125 V | 0.75 " | 19.1 mm | 125 VDC | 42 gf | SPDT | 20 A 500 mA | Lever Straight | 4.5 mm | 0.177 in | On-Mom | 85 °C | -55 °C | 0.224 in | 5.7 mm |
