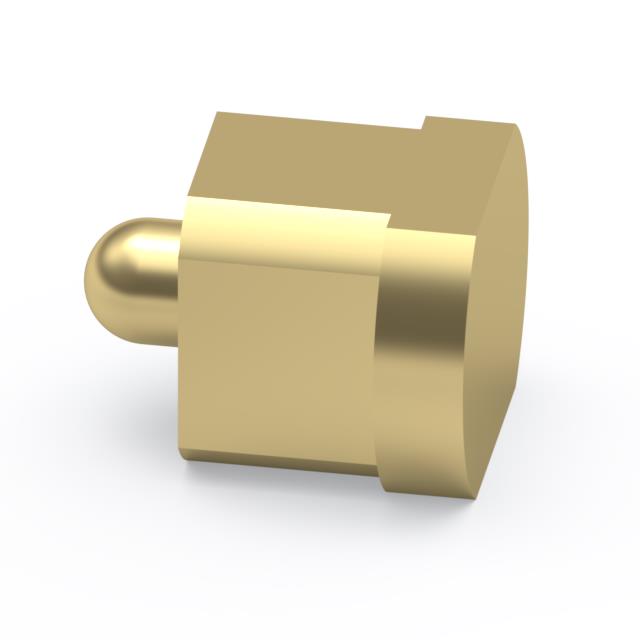

0968-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
HORIZONTAL SURFACE MOUNT (HSMT)
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension | Pad Layout Dimension | Minimum Working Height | Minimum Working Height | Mating Cycles | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Mounting Type | Operating Force - Mid Compression | Current Rating (Amps) | Contact Finish | Operating Force - Initial | Contact Material | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 3.18 mm | 0.125 in | 2.5 mm | 0.098 in | 1000000 | 0.042 in | 1.07 mm | 20 µin | 0.51 µm | Sleeve & Plunger (Pogo Pins) | 0.137 in | 3.48 mm | Surface Mount | 60 gf | 6.4 A | Gold | 15 gf | Brass Alloy | 0.117 in | 2.98 mm |
