ADC-033 Series

Manufacturer: Adam Tech

Catalog

DC POWER JACK

Part	Housing Material	Contact Material - Plating	Body Color	Contact Material	Connector Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Industry Recognized Mating Diameter [diameter]	Termination	Internal Switch(s)	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Insulation Color	Mounting Type	Voltage - Rated	Shielding	Material Flammability Rating	Gender	Current Rating (Amps)	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]

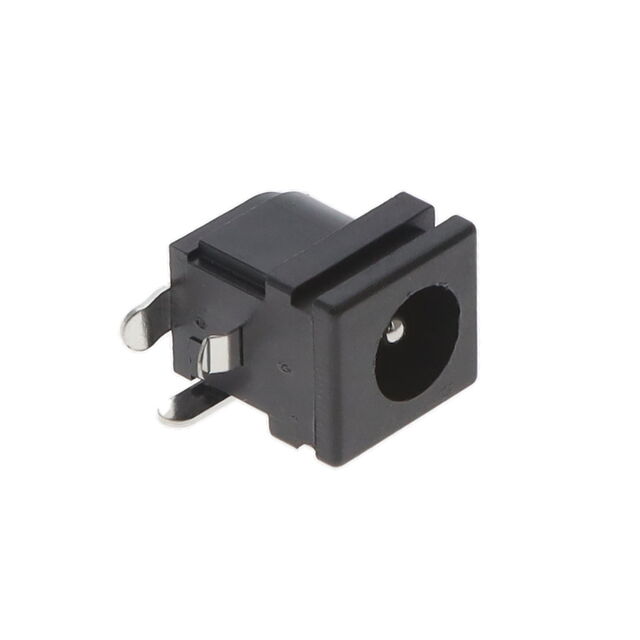

Adam Tech ADC-033-1	Polybutylene Terephthalate (PBT)	Tin	Black	Brass	Jack	0.079 in 0.287 in	2 mm 7.3 mm	85 °C	-25 °C	2 mm 5.5 mm	Kinked Pin	Single Switch Normally Closed	2	3	Black	Right Angle Through Hole	18 VDC	Unshielded	UL94 V-0	Male	2.5 A

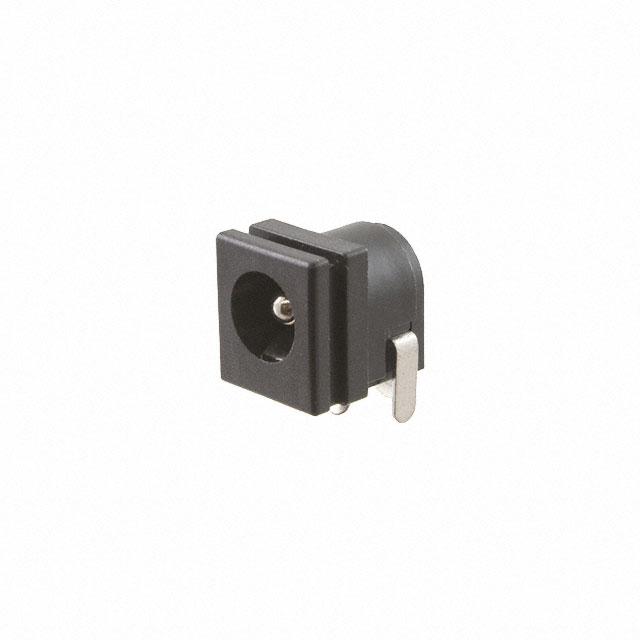

Adam Tech ADC-033-10	Polybutylene Terephthalate (PBT)	Tin	Black	Brass	Jack	0.118 in 0.287 in	3 mm 7.3 mm	85 °C	-25 °C		Kinked Pin	Single Switch Normally Closed	2	3	Black	Right Angle Through Hole	18 VDC	Unshielded	UL94 V-0	Male	2.5 A	6.5 mm	0.256 in	0.118 in	3 mm

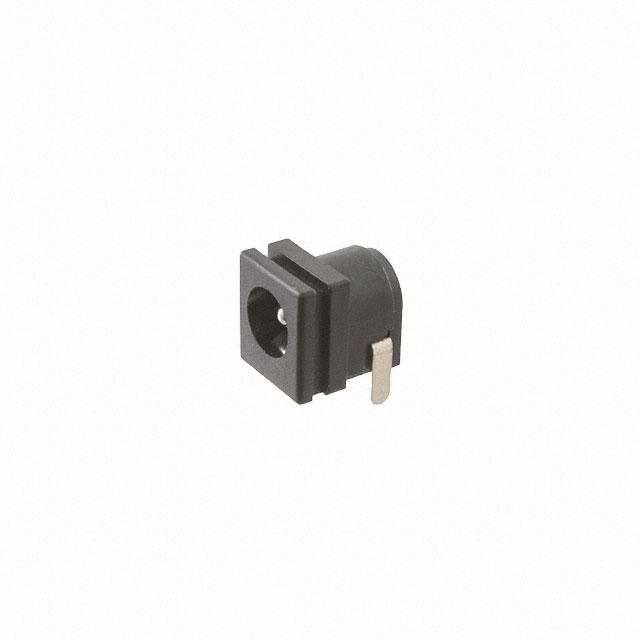

Adam Tech ADC-033-2	Polybutylene Terephthalate (PBT)	Tin	Black	Brass	Jack			85 °C	-25 °C		Kinked Pin	Single Switch Normally Closed	2	3	Black	Right Angle Through Hole	18 VDC	Unshielded	UL94 V-0	Male	2.5 A	5.5 mm	0.217 in	0.098 in	2.5 mm	0.287 in	0.098 in	7.3 mm	2.5 mm
