391-037 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 37POS 0.100

Part	Material - Insulation	Termination Rows	Number of Rows	Gender	Card Thickness [Max]	Card Thickness [Min]	Color	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Contact Material	Read Out	Card Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Positions	Mounting Type	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

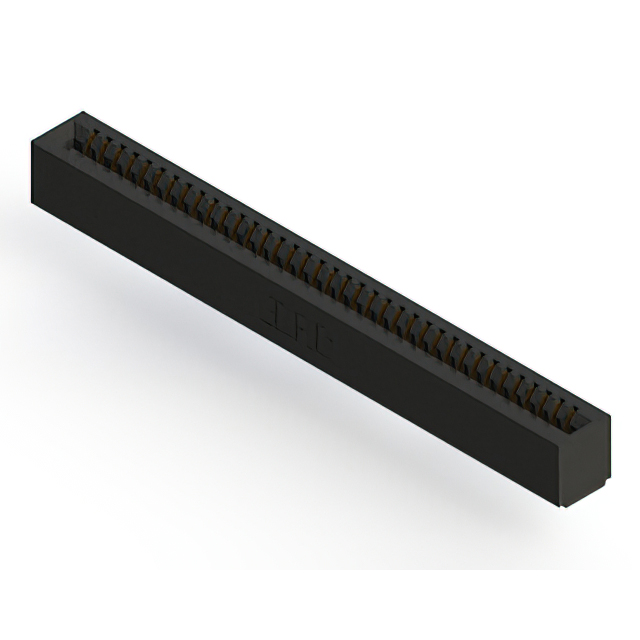

EDAC Inc. 391-037-520-101	Polyester Thermoplastic	1	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	37	0.25 Ám	10 Áin	0.1 "	2.54 mm	Copper Alloy	Single	Non Specified - Single Edge	Solder	-40 C	105 ░C	Gold	37	Through Hole	Semi Bellows
EDAC Inc. 391-037-522-108	Polyester Thermoplastic	1	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	37	0.25 Ám	10 Áin	0.1 "	2.54 mm	Copper Alloy	Single	Non Specified - Single Edge	Solder	-40 C	105 ░C	Gold	37	Through Hole	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 391-037-522-104	Polyester Thermoplastic	1	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	37	0.25 Ám	10 Áin	0.1 "	2.54 mm	Copper Alloy	Single	Non Specified - Single Edge	Solder	-40 C	105 ░C	Gold	37	Through Hole	Semi Bellows	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm

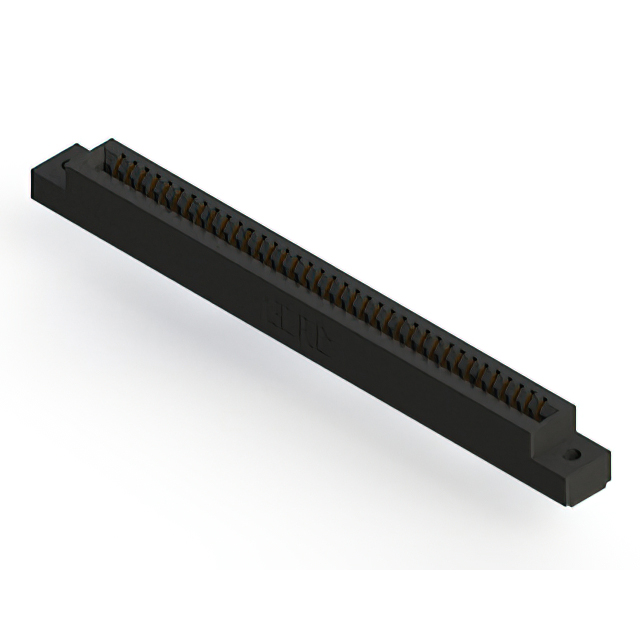

EDAC Inc. 391-037-524-102	Polyester Thermoplastic	1	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	37	0.25 Ám	10 Áin	0.1 "	2.54 mm	Copper Alloy	Single	Non Specified - Single Edge	Solder	-40 C	105 ░C	Gold	37	Through Hole	Semi Bellows	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 391-037-524-104	Polyester Thermoplastic	1	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	37	0.25 Ám	10 Áin	0.1 "	2.54 mm	Copper Alloy	Single	Non Specified - Single Edge	Solder	-40 C	105 ░C	Gold	37	Through Hole	Semi Bellows	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 391-037-520-107	Polyester Thermoplastic	1	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	37	0.25 Ám	10 Áin	0.1 "	2.54 mm	Copper Alloy	Single	Non Specified - Single Edge	Solder	-40 C	105 ░C	Gold	37	Through Hole	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening

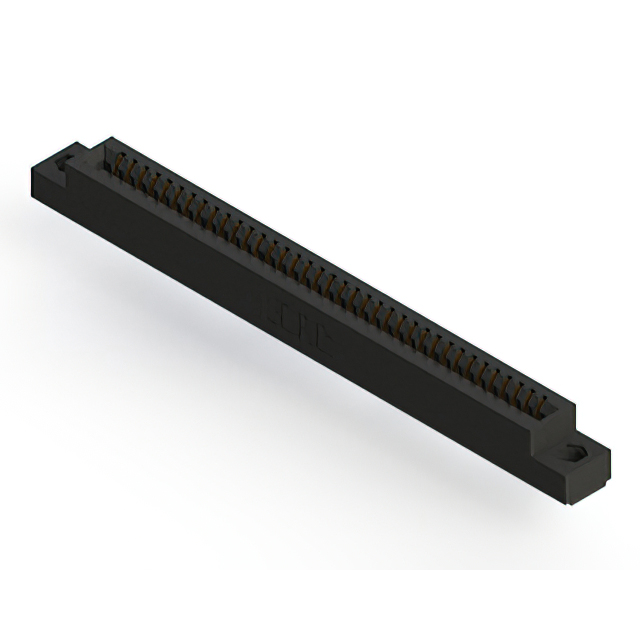

EDAC Inc. 391-037-520-104	Polyester Thermoplastic	1	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	37	0.25 Ám	10 Áin	0.1 "	2.54 mm	Copper Alloy	Single	Non Specified - Single Edge	Solder	-40 C	105 ░C	Gold	37	Through Hole	Semi Bellows	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 391-037-522-103	Polyester Thermoplastic	1	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	37	0.25 Ám	10 Áin	0.1 "	2.54 mm	Copper Alloy	Single	Non Specified - Single Edge	Solder	-40 C	105 ░C	Gold	37	Through Hole	Semi Bellows	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 391-037-522-101	Polyester Thermoplastic	1	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	37	0.25 Ám	10 Áin	0.1 "	2.54 mm	Copper Alloy	Single	Non Specified - Single Edge	Solder	-40 C	105 ░C	Gold	37	Through Hole	Semi Bellows
EDAC Inc. 391-037-524-101	Polyester Thermoplastic	1	1	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	37	0.25 Ám	10 Áin	0.1 "	2.54 mm	Copper Alloy	Single	Non Specified - Single Edge	Solder	-40 C	105 ░C	Gold	37	Through Hole	Semi Bellows
