R22264 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

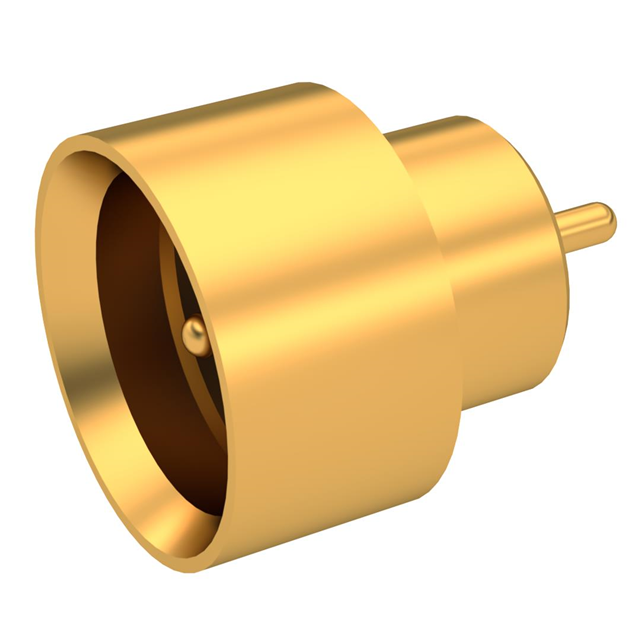

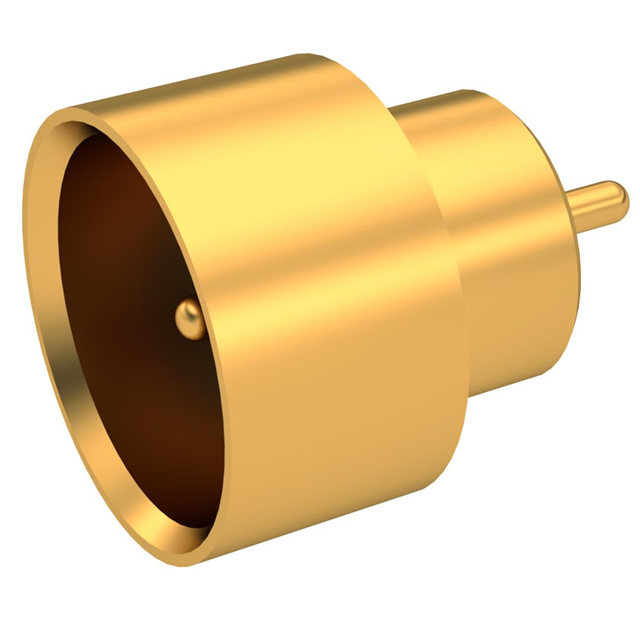

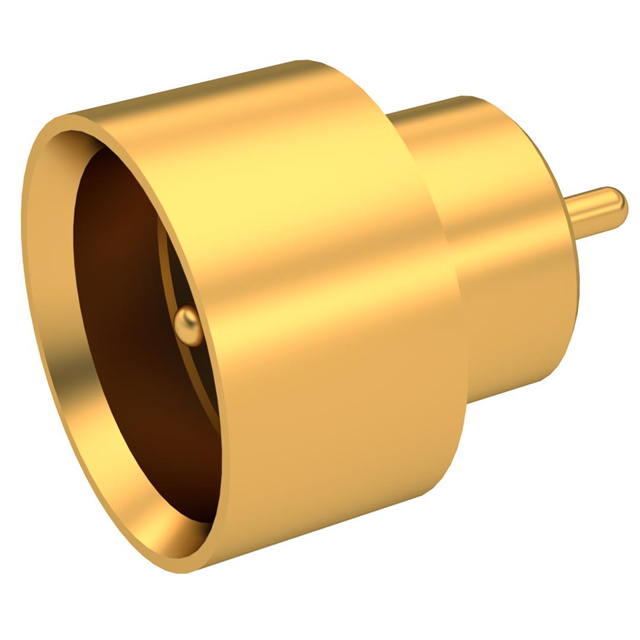

SMP / HERMETIC STRAIGHT MALE REC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Body Finish | Features | Housing Color | Mounting Type | Number of Ports | Frequency - Max [Max] | Fastening Type | Shield Termination | Connector Type | Contact Termination | Impedance | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Gold | Gold | Full Detent | Gold | Through Hole | 1 | 40 GHz | Snap-On | Solder | Receptacle Male Pin | Solder | 50 Ohms | |
 Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Gold | Gold | Limited Detent | Gold | Through Hole | 1 | 18 GHz | Snap-On | Solder | Receptacle Male Pin | Solder | 50 Ohms | 500 |
 Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Gold | Gold | Limited Detent | Gold | Through Hole | 1 | 40 GHz | Snap-On | Solder | Receptacle Male Pin | Solder | 50 Ohms | 500 |
 Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Gold | Gold | Smooth Bore | Gold | Through Hole | 1 | 18 GHz | Snap-On | Solder | Receptacle Male Pin | Solder | 50 Ohms | 1000 |
Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Gold | Gold | Limited Detent | Gold | Through Hole | 1 | 18 GHz | Snap-On | Solder | Receptacle Male Pin | Solder | 50 Ohms | 500 |
Radiall USA, Inc. | -65 ░C | 165 °C | 335 V | Gold | Gold | Smooth Bore | Gold | Through Hole | 1 | 18 GHz | Snap-On | Solder | Receptacle Male Pin | Solder | 50 Ohms | 1000 |
