KGC2CNB1 Series
Manufacturer: ZF Electronics
Beta
⌘K

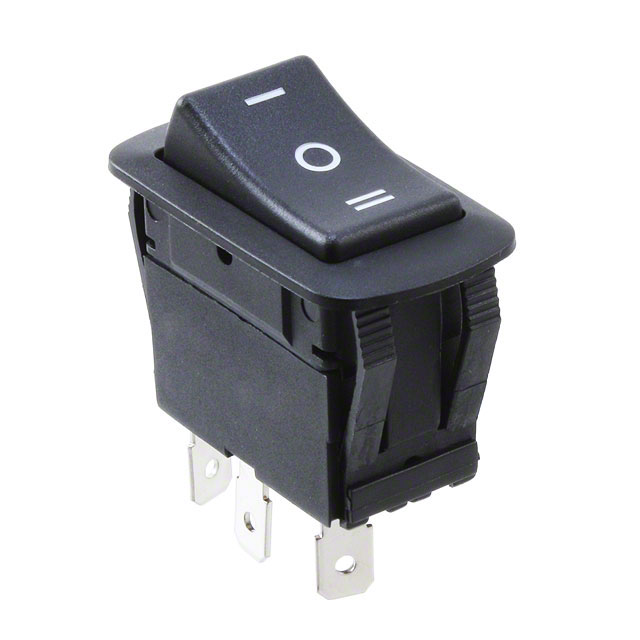

ROCKER SWITCH, NON ILLUMINATED, SPDT, ON-OFF-ON, BLACK, PANEL MOUNT, 20 A
| Part | Electrical Life | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Termination Style | Ingress Protection | Actuator Marking | Color - Actuator/Cap | Mounting Type | Circuit | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating (Amps) | Switch Function | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 6000 Cycles | 100000 Cycles | 85 °C | -20 ░C | Concave (Curved) | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected Water Resistant | I O II | Black | Panel Mount Snap-In | SPDT | 125 V | 21.2 mm | 36.6 mm | 20 A 21 A | On-Off-On | 14 V |
