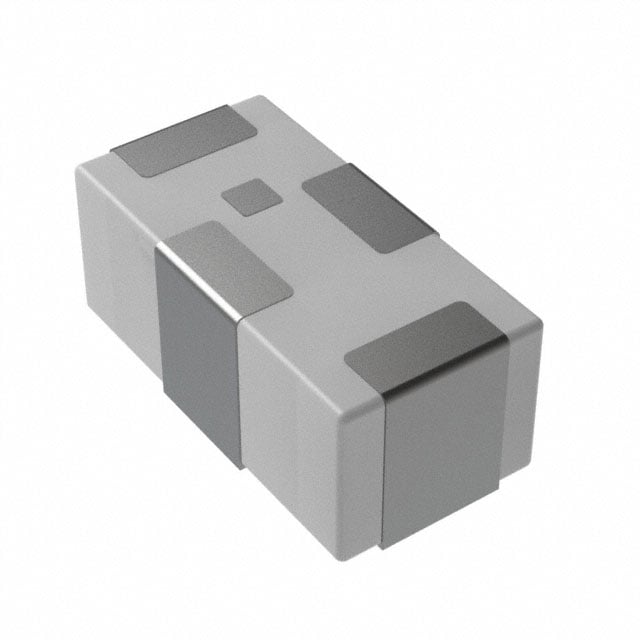

RFBLN1005 Series

Catalog

RF BALUN TRANSFORMER 900MHZ LTE

Part	Frequency Range [Min]	Frequency Range [Max]	Phase Difference	Insertion Loss (Max)	Impedance - Unbalanced/Balanced [custom]	Impedance - Unbalanced/Balanced [custom]	Mounting Type	Package / Case	Insertion Loss (Max) [Max]
Walsin Technology Corporation RFBLN10050G9D0T	699 MHz	960 MHz	180 °	1.3 dB	100 Ohm	50 Ohm	Surface Mount	0402 (1005 Metric) 4 PC Pad
Walsin Technology Corporation RFBLN1005040K5T	4.9 GHz	5.95 GHz	180 °		100 Ohm	50 Ohm	Surface Mount	0402 (1005 Metric) 4 PC Pad	0.75 dB
Walsin Technology Corporation RFBLN1005040F0T	1.805 GHz	2.17 GHz	180 °		100 Ohm	50 Ohm	Surface Mount	0402 (1005 Metric) 4 PC Pad	1.2 dB
