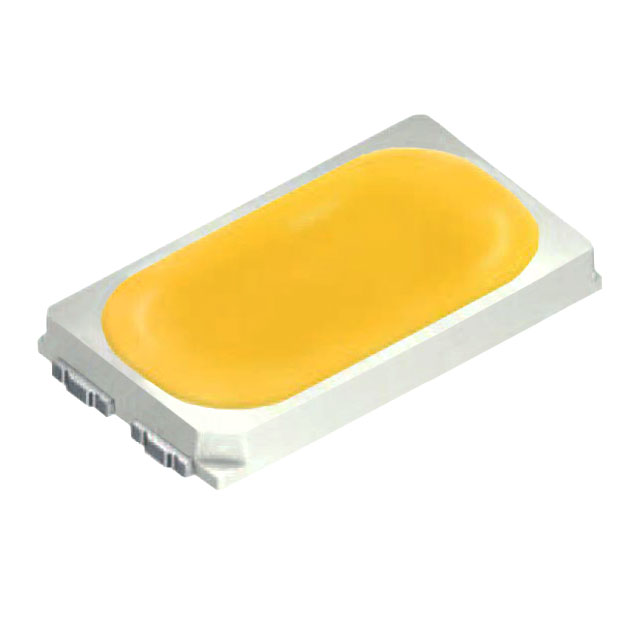

GW JDSTS2.EM Series

Catalog

LED DURIS E5 COOL WHT 5700K 5630

...

Part	Thermal Resistance of Package	Mounting Type	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Viewing Angle	Color	Lumens/Watt @ Current - Test	Current - Max [Max]	CCT (K)	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	CRI (Color Rendering Index)	Package / Case	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Current - Test	Supplier Device Package
ams-OSRAM USA INC. GW JDSTS2.EM-H4H7-XX52-1-65-C-R18	41.78 °C/W	Surface Mount	2.87 V	5.3 mm	0.209 "	0.118 in	3 mm	120 °	Cool White	193 lm/W	180 mA	5700 K	5630	0.6 mm	0.024 in	80	4-SMD Flat Leads	33 lm	36 lm	39 lm	65 mA
ams-OSRAM USA INC. GW JDSTS2.EM-H5H8-A131-1-65-B-2-R33	16 °C/W	Surface Mount	2.84 V	5.3 mm	0.209 "	0.118 in	3 mm	120 °	Cool White	206 lm/W	180 mA	6500 K		0.6 mm	0.024 in	80	4-SMD Flat Leads		38 lm		65 mA	4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-H3H6-XX53-1-65-C-R33	41.78 °C/W	Surface Mount	2.87 V	5.3 mm	0.209 "	0.118 in	3 mm	120 °	Cool White	187 lm/W	180 mA	5000 K	5630	0.6 mm	0.024 in	80	4-SMD Flat Leads	32 lm		38 lm	65 mA
ams-OSRAM USA INC. GW JDSTS2.EM-H2H4-XX38-K2L1-65-R33-XX		Surface Mount		5.3 mm	0.209 "	0.118 in	3 mm	120 °	White		180 mA			0.6 mm	0.024 in	80	4-SMD Flat Leads		33 lm		65 mA	4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-H4H7-XX35-K2L1-65-R33-STE		Surface Mount		5.3 mm	0.209 "	0.118 in	3 mm	120 °	White		180 mA			0.6 mm	0.024 in	80	4-SMD Flat Leads	33 lm	36 lm	39 lm	65 mA	4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-H5H7-XX32-K2L2-65-R33-XX		Surface Mount		5.3 mm	0.209 "	0.118 in	3 mm	120 °	White		180 mA			0.6 mm	0.024 in	80	4-SMD Flat Leads	35 lm	37 lm	39 lm	65 mA	4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-H4H6-XX55-1-65-C-R33-SA	41.78 °C/W	Surface Mount	2.87 V	5.3 mm	0.209 "	0.118 in	3 mm	120 °	Neutral White	193 lm/W	180 mA	4000 K		0.6 mm	0.024 in	80	4-SMD Flat Leads	33 lm	36 lm	38 lm	65 mA	4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-H1H4-A838-1-65-C-R33	41.78 °C/W	Surface Mount	2.87 V	5.3 mm	0.209 "	0.118 in	3 mm	120 °	Warm White	172 lm/W	180 mA	2700 K		0.6 mm	0.024 in	80	4-SMD Flat Leads		32 lm		65 mA	4-SMD
ams-OSRAM USA INC. GW JDSTS2.EM-HPHR-A535-1-65-R18	18 °C/W	Surface Mount	2.85 V	5.3 mm	0.209 "	0.118 in	3 mm	120 °	Neutral White	173 lm/W	180 mA	4000 K	5630	0.87 mm	0.034 in	80	4-SMD Flat Leads	28 lm	32 lm	36 lm	65 mA
ams-OSRAM USA INC. GW JDSTS2.EM-H3H6-XX55-1-65-C-R18	41.78 °C/W	Surface Mount	2.87 V	5.3 mm	0.209 "	0.118 in	3 mm	120 °	Neutral White	188 lm/W	180 mA	4000 K		0.6 mm	0.024 in	80	4-SMD Flat Leads	32 lm		38 lm	65 mA	4-SMD
