501461 Series

Manufacturer: Molex

Catalog

0.50MM PITCH EASY-ON BACK FLIP FPC CONNECTOR, RIGHT-ANGLE, SURFACE MOUNT, BOTTOM CONTACT STYLE, 0.80MM MATED HEIGHT, 6 CIRCUITS

Part	Mating Cycles	Housing Color	Current Rating (Amps)	Actuator Color	Voltage Rating	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness	Cable End Type	Actuator Material	Material Flammability Rating	Connector/Contact Type	Mounting Type	Flat Flex Type	Number of Positions	Termination	Housing Material	Pitch	Pitch	Locking Feature	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish

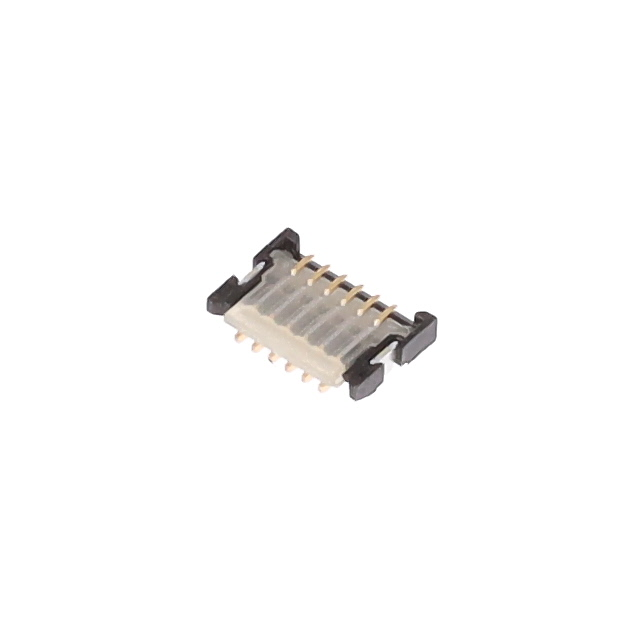

Molex 5014610691	20	Black	0.3 A	White	50 V	0.8 mm	0.031 in	0.12 mm	Notched	Glass Filled Nylon 4/6 Polyamide (PA46)	UL94 HB	Contacts Bottom	Right Angle Surface Mount	FPC	6	Solder	Glass Filled Nylon Polyamide (PA)	0.02 "	0.5 mm	Backlock Flip Lock	Phosphor Bronze	85 °C	-40 C	Gold
Molex 5014610591	20	Black	0.3 A	White	50 V	0.8 mm	0.031 in	0.12 mm	Notched	Glass Filled Nylon 4/6 Polyamide (PA46)	UL94 HB	Contacts Bottom	Right Angle Surface Mount	FPC	5	Solder	Glass Filled Nylon Polyamide (PA)	0.02 "	0.5 mm	Backlock Flip Lock	Phosphor Bronze	85 °C	-40 C	Gold
Molex 5014610802	20		0.3 A		50 V	0.8 mm	0.031 in	0.12 mm	Notched	Polymer Glass Filled	UL94 V-0	Contacts Bottom	Right Angle Surface Mount	FPC	8	Solder	Polymer Glass Filled	0.02 "	0.5 mm	Backlock Flip Lock	Copper Alloy	85 °C	-40 C	Gold
Molex 5014610401	20		0.3 A		50 V	0.8 mm	0.031 in	0.12 mm	Notched	Polymer Glass Filled	UL94 V-0	Contacts Bottom	Right Angle Surface Mount	FPC	4	Solder	Polymer Glass Filled	0.02 "	0.5 mm	Backlock Flip Lock	Copper Alloy	85 °C	-40 C	Gold

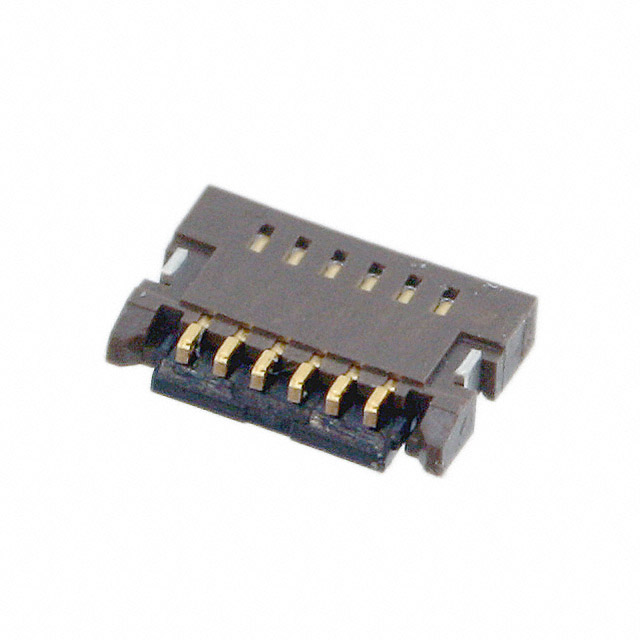

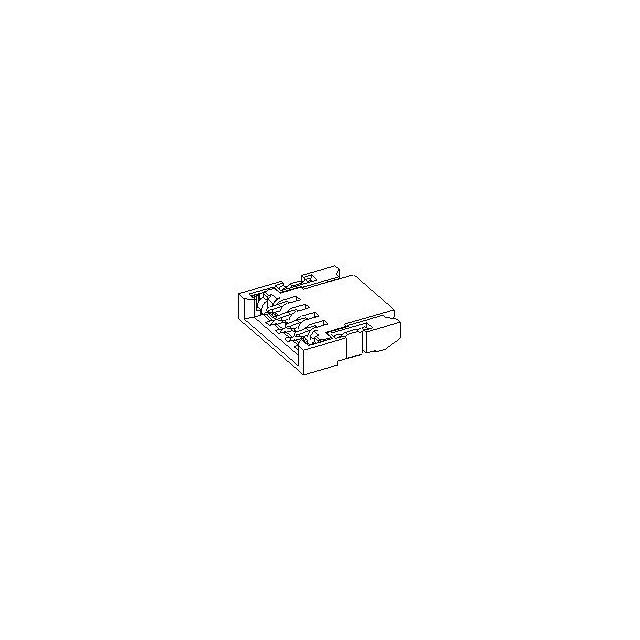

Molex 5014610601	20		0.3 A		50 V	0.8 mm	0.031 in	0.12 mm	Notched	Polymer Glass Filled	UL94 V-0	Contacts Bottom	Right Angle Surface Mount	FPC	6	Solder	Polymer Glass Filled	0.02 "	0.5 mm	Backlock Flip Lock	Copper Alloy	85 °C	-40 C	Gold
Molex 5014610891	20	Black	0.3 A	White	50 V	0.8 mm	0.031 in	0.12 mm	Notched	Glass Filled Nylon 4/6 Polyamide (PA46)	UL94 HB	Contacts Bottom	Right Angle Surface Mount	FPC	8	Solder	Glass Filled Nylon Polyamide (PA)	0.02 "	0.5 mm	Backlock Flip Lock	Phosphor Bronze	85 °C	-40 C	Gold
Molex 5014610501	20		0.3 A		50 V	0.8 mm	0.031 in	0.12 mm	Notched	Polymer Glass Filled	UL94 V-0	Contacts Bottom	Right Angle Surface Mount	FPC	5	Solder	Polymer Glass Filled	0.02 "	0.5 mm	Backlock Flip Lock	Copper Alloy	85 °C	-40 C	Gold
