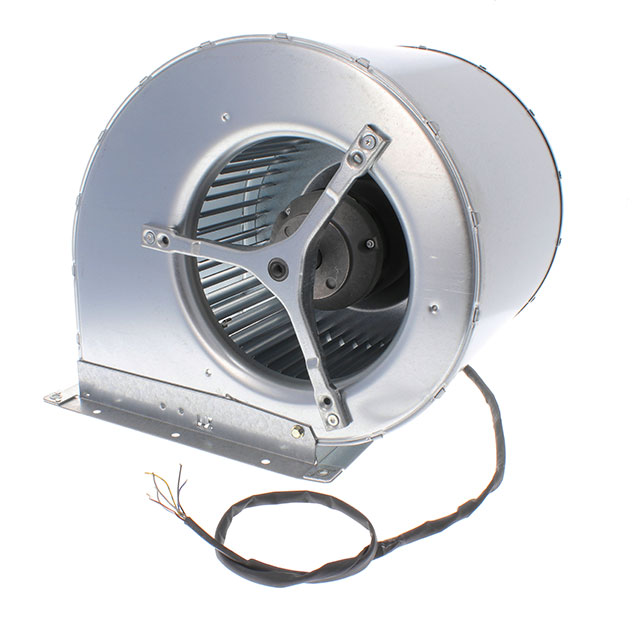

D4E225 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
AC BLOWER CENTRIFUGAL BALL BEARING 230V 327 X 370 X 341MM
| Part | Material - Frame | Material - Blade | Current Rating (Amps) | Fan Type | Bearing Type | RPM | Air Flow | Air Flow | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Static Pressure | Static Pressure | Ingress Protection | Features | Termination | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension | Voltage - Rated | Width [y] | Size / Dimension [y] | Approval Agency | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Steel | Steel | 2.84 A | Blower Centrifugal | Ball | 1150 RPM | 32.38 m³/min | 1156.6 CFM | 650 W | -25 °C | 30 °C | 100 Pa | 0.401 in H2O | IP22 | Capacitor Thermal Overload Protection (TOP) | 6 Wire Leads | 327 mm | 370 mm | Rectangular/Rounded | 230 VAC | 341 mm | ||||
 ebm-papst Inc. | Steel | Steel | 2.8 A | Blower Centrifugal | Ball | 1300 RPM | 670 W | -25 °C | 30 °C | 249.1 Pa | 1 in H2O | IP22 | Capacitor Thermal Overload Protection (TOP) | 4 Wire Leads | 328 mm | Rectangular/Rounded | 230 VAC | 341 mm | 370 mm | CE CSA UL | 28 lbs | 12.7 kg |
