Zms0 Series Series

Catalog

SWITCH SNAP ACTION N.O./N.C. SPDT PIN PLUNGER 3A 125VAC 12VDC 1.27N THRU-HOLE PC PINS BULK

Part	Operating Temperature [Max]	Operating Temperature [Min]	Release Force	Differential Travel	Differential Travel	Circuit	Features	Voltage Rating - DC	Electrical Life	Mounting Type	Switch Function	Mechanical Life	Ingress Protection	Current Rating (Amps)	Actuator Type	Operating Position	Operating Position	Termination Style	Voltage Rating - AC	Overtravel [custom]	Overtravel [custom]	Pretravel	Pretravel	Operating Force
LITTELFUSE ZMSH03130P00LLC	85 °C	-40 C	13 gf	0.012 in	0.3 mm	SPDT	Support Posts	12 V	100000 Cycles	Right Angle Through Hole	On-Mom	500000 Cycles	IP65 - Dust Tight Water Resistant	3 A	Round (Pin Plunger)	10.55 mm	0.415 in	PC Pin	125 V	0.065 "	1.7 mm	0.8 mm	0.03 "	130 gf

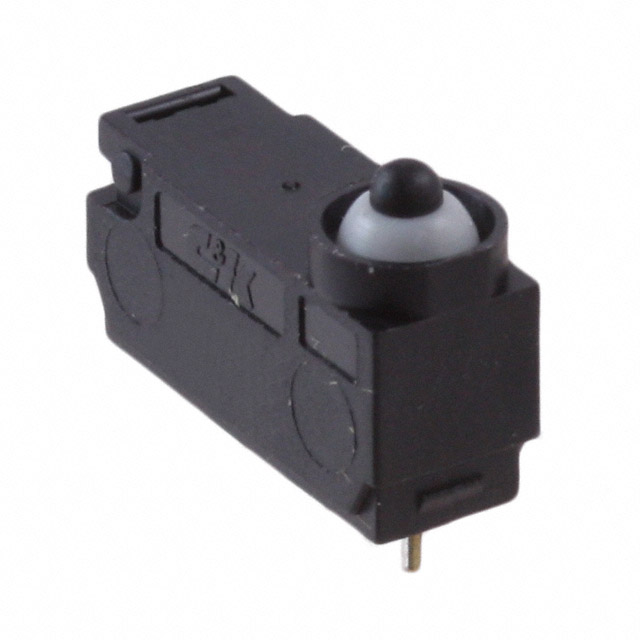

LITTELFUSE ZMSH03130P00SSC	85 °C	-40 C	13 gf	0.012 in	0.3 mm	SPDT		12 V	100000 Cycles	Chassis Mount	On-Mom	500000 Cycles	IP65 - Dust Tight Water Resistant	3 A	Round (Pin Plunger)	10.55 mm	0.415 in	Solder Lug	125 V	0.065 "	1.7 mm	0.8 mm	0.03 "	130 gf
LITTELFUSE ZMSH00130T11LLC	85 °C	-40 C	45 gf	0.03 in	0.76 mm	SPDT	Support Posts	12 V	300000 Cycles	Right Angle Through Hole	On-Mom	500000 Cycles	IP65 - Dust Tight Water Resistant	100 mA	Lever Simulated Roller	13.7 mm	0.539 in	PC Pin		0.101 "	2.57 mm	4.8 mm	0.188 in	160 gf
LITTELFUSE ZMSH00130T11JSC	85 °C	-40 C	45 gf	0.03 in	0.76 mm	SPDT		12 V	300000 Cycles	Chassis Mount	On-Mom	500000 Cycles	IP67 - Dust Tight Waterproof	100 mA	Lever Simulated Roller	18.2 mm	0.715 "	Wire Leads		0.101 "	2.57 mm	4.8 mm	0.188 in	160 gf
LITTELFUSE ZMSH03130P00JSC	85 °C	-40 C	13 gf	0.012 in	0.3 mm	SPDT		12 V	100000 Cycles	Chassis Mount	On-Mom	500000 Cycles	IP67 - Dust Tight Waterproof	3 A	Round (Pin Plunger)	13.7 mm	0.539 in	Wire Leads	125 V	0.065 "	1.7 mm	0.8 mm	0.03 "	130 gf
LITTELFUSE ZMSH03130P00PSC	85 °C	-40 C	13 gf	0.012 in	0.3 mm	SPDT		12 V	100000 Cycles	Through Hole	On-Mom	500000 Cycles	IP65 - Dust Tight Water Resistant	3 A	Round (Pin Plunger)	10.55 mm	0.415 in	PC Pin	125 V	0.065 "	1.7 mm	0.8 mm	0.03 "	130 gf
LITTELFUSE ZMSH03130T10SSC	85 °C	-40 C	55 gf	0.02 in	0.5 mm	SPDT		12 V	100000 Cycles	Chassis Mount	On-Mom	500000 Cycles	IP65 - Dust Tight Water Resistant	3 A	Lever Straight	11.2 mm	0.44 in	Solder Lug	125 V	0.084 "	2.14 mm	3.85 mm	0.152 in	195 gf
LITTELFUSE ZMSH00130T10LLC	85 °C	-40 C	55 gf	0.02 in	0.5 mm	SPDT	Support Posts	12 V	300000 Cycles	Right Angle Through Hole	On-Mom	500000 Cycles	IP65 - Dust Tight Water Resistant	100 mA	Lever Straight	11.2 mm	0.44 in	PC Pin		0.084 "	2.14 mm	3.85 mm	0.152 in	195 gf

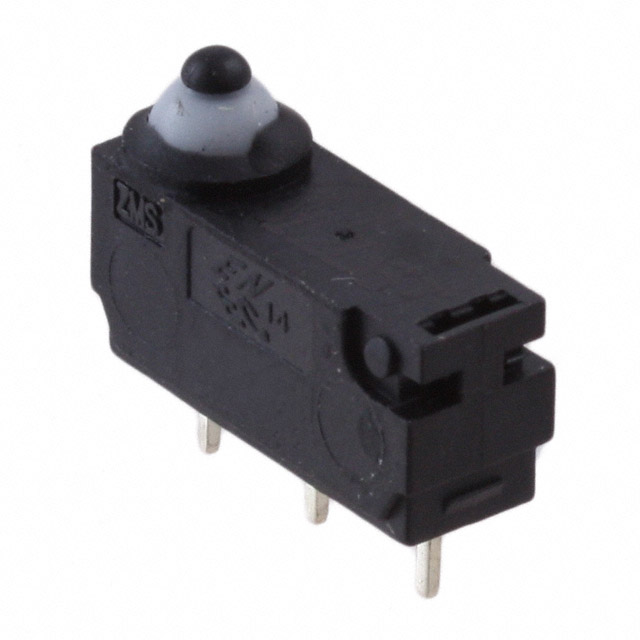

LITTELFUSE ZMSH00130P00PSC	85 °C	-40 C	13 gf	0.012 in	0.3 mm	SPDT		12 V	300000 Cycles	Through Hole	On-Mom	500000 Cycles	IP65 - Dust Tight Water Resistant	100 mA	Round (Pin Plunger)	10.55 mm	0.415 in	PC Pin		0.065 "	1.7 mm	0.8 mm	0.03 "	130 gf
LITTELFUSE ZMSH00130P00LLC	85 °C	-40 C	13 gf	0.012 in	0.3 mm	SPDT		12 V	300000 Cycles	Right Angle Through Hole	On-Mom	500000 Cycles	IP65 - Dust Tight Water Resistant	100 mA	Round (Pin Plunger)	10.6 mm	0.415 in	PC Pin		0.068 "	1.73 mm	0.8 mm	0.031 in	130 gf
