A-DS 37 Series

Catalog

CONN D-SUB PLUG 37POS VERT SLDR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Color	Dielectric Material	Contact Material	Contact Type	Termination	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish	Connector Type	Contact Finish Thickness	Current Rating (Amps)	Connector Style	Features	Number of Positions	Flange Feature	Number of Rows [custom]	Mounting Type	Material Flammability Rating	Backset Spacing	Backset Spacing

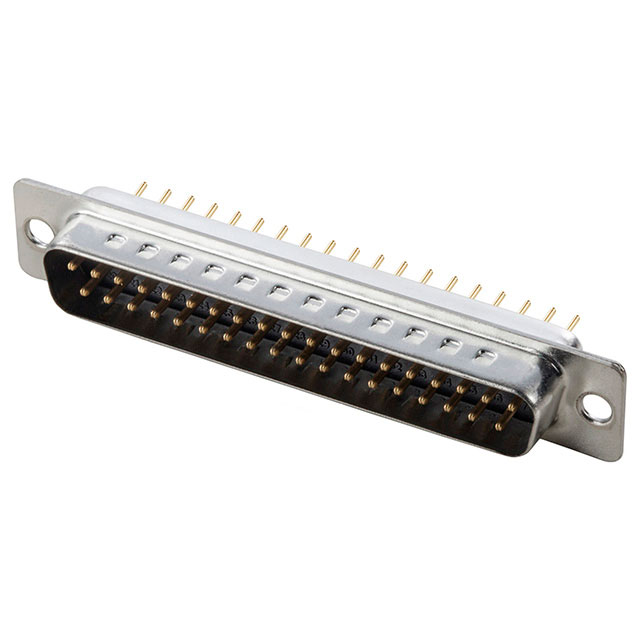

Assmann WSW Components A-DS 37 PP/Z-BK	-55 C	105 ░C	250 VAC	Black	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Signal	Solder	4	DC C	Gold	Plug Male Pins	Flash	3 A	D-Sub	Grounding Indents	37	Housing/Shell (Unthreaded)	2	Through Hole	UL94 V-0

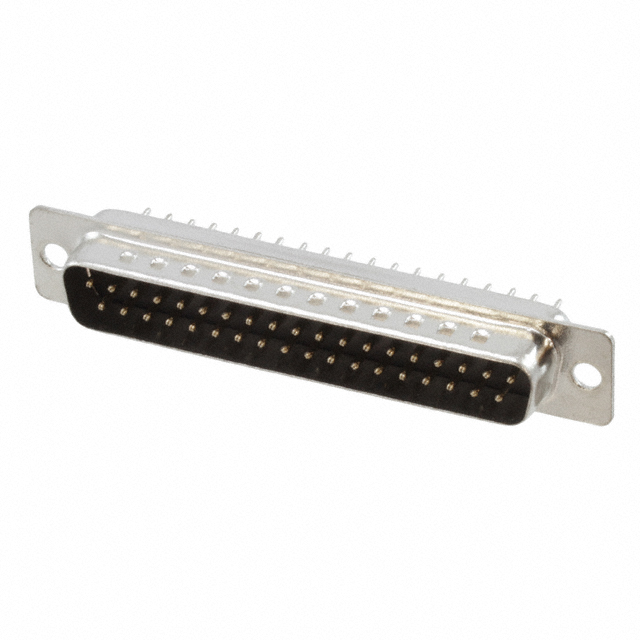

Assmann WSW Components A-DS 37 PP/Z	-20 ░C	105 ░C	250 V	Gray	Polybutylene Terephthalate (PBT) Glass Filled	Brass	Signal	Solder	4	DC C	Gold	Plug Male Pins	Flash	3 A	D-Sub	Grounding Indents	37	Housing/Shell (Unthreaded)	2	Through Hole	UL94 V-0

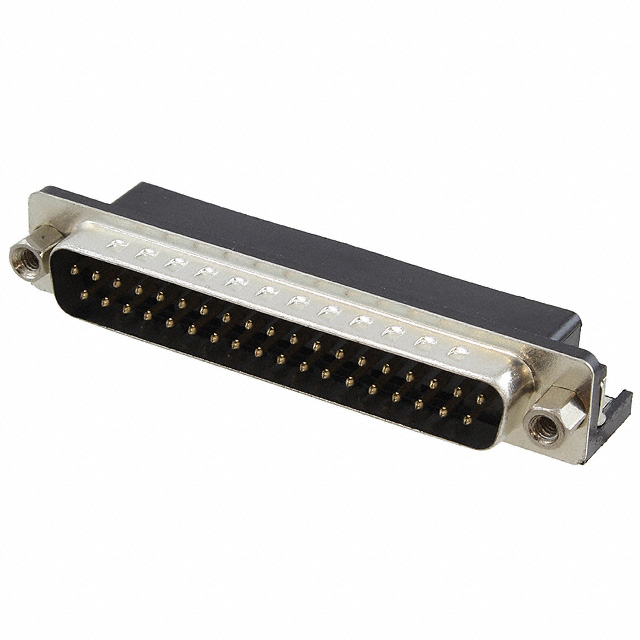

Assmann WSW Components A-DS 37 A/KG-T2S	-55 C	105 ░C	250 V	Black	Polybutylene Terephthalate (PBT) Glass Filled	Brass	Signal	Solder	4	DC C	Gold	Plug Male Pins	Flash	3 A	D-Sub	Board Lock Grounding Indents	37	4-40 Mating Side Female Screwlock	2	Right Angle Through Hole	UL94 V-0	0.319 in	8.1 mm
