BR246D-32 Series

Catalog

RELAY GEN PURPOSE DPDT 10A 28V

Part	Coil Resistance	Must Release Voltage	Must Operate Voltage	Coil Type	Coil Voltage	Coil Current	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage [Max]	Termination Style	Mounting Type	Contact Rating (Current)	Release Time	Relay Type	Load - Max Switching	Operate Time
Microsemi Corporation BR246D-320C2-28V	320 Ohms	5.1 VDC	18 VDC	Non Latching	28 VDC	87.5 mA	DPDT (2 Form C)	-70 °C	125 °C	28 VDC 208 VAC	Plug In	Chassis Mount	10 A	15 ms	General Purpose	280 W 2080 VA	15 ms
Microsemi Corporation BR246D-320C1-28V-019M	320 Ohms	5.1 VDC	18 VDC	Non Latching	28 VDC	87.5 mA	DPDT (2 Form C)	-70 °C	125 °C	28 VDC 208 VAC	Plug In	Socketable	10 A	15 ms	General Purpose	280 W 2080 VA	15 ms

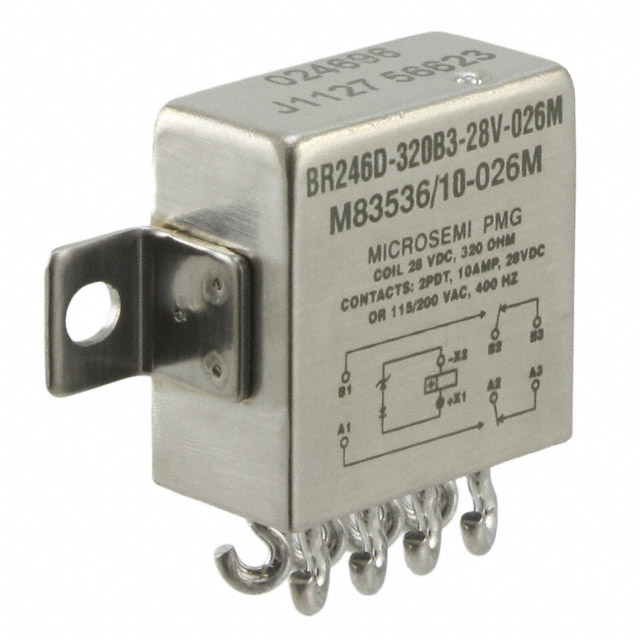

Microsemi Corporation BR246D-320B3-28V-026M	320 Ohms	5.1 VDC	18 VDC	Non Latching	28 VDC	87.5 mA	DPDT (2 Form C)	-70 °C	125 °C	28 VDC 208 VAC	Solder Hook	Chassis Mount	10 A	15 ms	General Purpose	280 W 2080 VA	15 ms
Microsemi Corporation BR246D-320B2-28V-023M	320 Ohms	5.1 VDC	18 VDC	Non Latching	28 VDC	87.5 mA	DPDT (2 Form C)	-70 °C	125 °C	28 VDC 208 VAC	Solder Hook	Chassis Mount	10 A	15 ms	General Purpose	280 W 2080 VA	15 ms
Microsemi Corporation BR246D-320C3-28V-025M	320 Ohms	5.1 VDC	18 VDC	Non Latching	28 VDC	87.5 mA	DPDT (2 Form C)	-70 °C	125 °C	28 VDC 208 VAC	Plug In	Chassis Mount	10 A	15 ms	General Purpose	280 W 2080 VA	15 ms
Microsemi Corporation BR246D-320A2-28V-024L	320 Ohms	5.1 VDC	18 VDC	Non Latching	28 VDC	87.5 mA	DPDT (2 Form C)	-70 °C	125 °C	28 VDC 208 VAC	Plug In	Chassis Mount	10 A	15 ms	General Purpose	280 W 2080 VA	15 ms
Microsemi Corporation BR246D-320B3-28V-026L	320 Ohms	5.1 VDC	18 VDC	Non Latching	28 VDC	87.5 mA	DPDT (2 Form C)	-70 °C	125 °C	28 VDC 208 VAC	Solder Hook	Chassis Mount	10 A	15 ms	General Purpose	280 W 2080 VA	15 ms
Microsemi Corporation BR246D-320B2-28V-023L	320 Ohms	5.1 VDC	18 VDC	Non Latching	28 VDC	87.5 mA	DPDT (2 Form C)	-70 °C	125 °C	28 VDC 208 VAC	Solder Hook	Chassis Mount	10 A	15 ms	General Purpose	280 W 2080 VA	15 ms
Microsemi Corporation BR246D-320G3-28V-027M	320 Ohms	5.1 VDC	18 VDC	Non Latching	28 VDC	87.5 mA	DPDT (2 Form C)	-70 °C	125 °C	28 VDC 208 VAC		Chassis Mount	10 A	15 ms	General Purpose	280 W 2080 VA	15 ms
