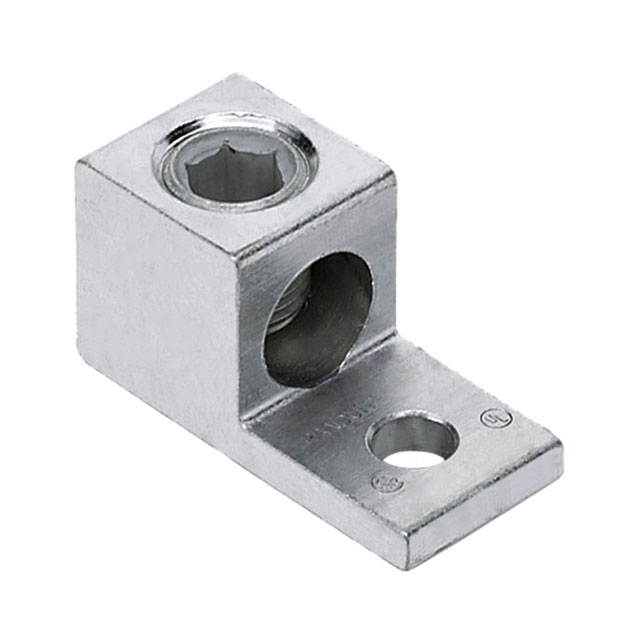

LAMA2 Series
Manufacturer: Panduit Corp
Beta
⌘K

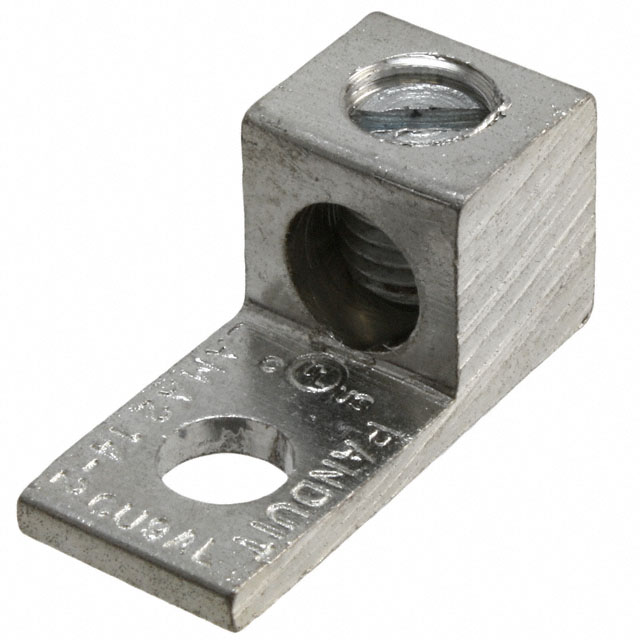

CONN TERM RECT LUG 2-14 AWG #1/4
| Part | Contact Finish | Contact Material | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Insulation | Tab Thickness | Tab Thickness | Terminal Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Termination | Length - Overall [x] | Length - Overall [x] | Features | Stud/Tab Size | Terminal Style | Wire Gauge | Tab Thickness [custom] | Tab Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Tin | Aluminum | 14 AWG | 2 AWG | Free Hanging (In-Line) | Non-Insulated | 2.54 mm | 0.1 in | Lug Grounding | 12.7 mm | 0.5 in | Screw | 29.46 mm | 1.16 in | With Screw | 0.25 Stud | Single Stud Hole | |||
 Panduit Corp | Tin | Aluminum | Free Hanging (In-Line) | Non-Insulated | Lug Grounding | 25.4 mm | 1 in | Screw | 51.05 mm | 2.01 " | With Screw | 0.3125 Stud | Single Stud Hole | 6 AWG 250 kcmil | 0.25 in | 6.35 mm |
