NDM2Z Series

Manufacturer: CUI Inc.

Catalog

NOVUM NDM2Z-50HT BRD W/O DONGLE

Part	Current - Output	Supplied Contents	Outputs and Type	Outputs and Type	Power - Output	Board Type	Regulator Topology	Main Purpose	Voltage - Output	Utilized IC / Part	Frequency - Switching	Voltage - Input (Max) [Max]	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Current - Output (Max) [Max]	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Applications	Mounting Type

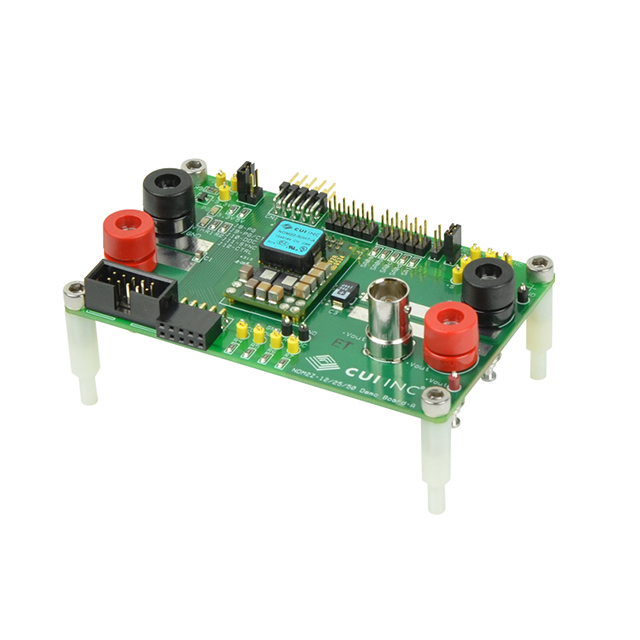

CUI Inc. NDM2Z-50HT-DEMO	50 A	Board(s)	1	Non-Isolated	165 W	Fully Populated	Buck	DC/DC Step Down	1.2 V	NDM2Z-50	320 kHz

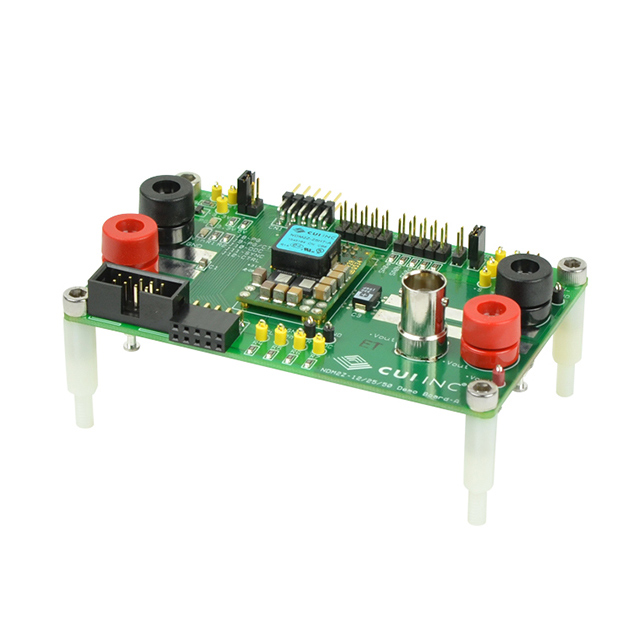

CUI Inc. NDM2Z-25HT-DEMO-D	25 A	Board(s)	1	Non-Isolated	82.5 W	Fully Populated	Buck	DC/DC Step Down	1.2 V	NDM2Z-25	320 kHz
CUI Inc. NDM2Z-50HT-DEMO-D	50 A	Board(s)	1	Non-Isolated	165 W	Fully Populated	Buck	DC/DC Step Down	1.2 V	NDM2Z-50	320 kHz

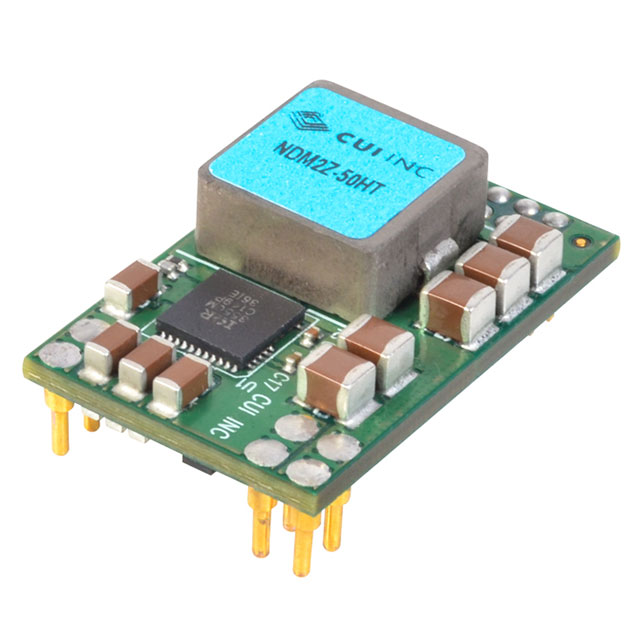

CUI Inc. NDM2Z-50HT-A-001												14 V	1	20-DIP Module	4.5 V	0.6 V	3.3 V	50 A	Digital	Non-Isolated PoL Module Digital	125 °C	-40 C	0.32 "	8.2 mm	30.9 mm	1.22 in	0.79 in	20 mm	94.6 %	ITE (Commercial)	Through Hole

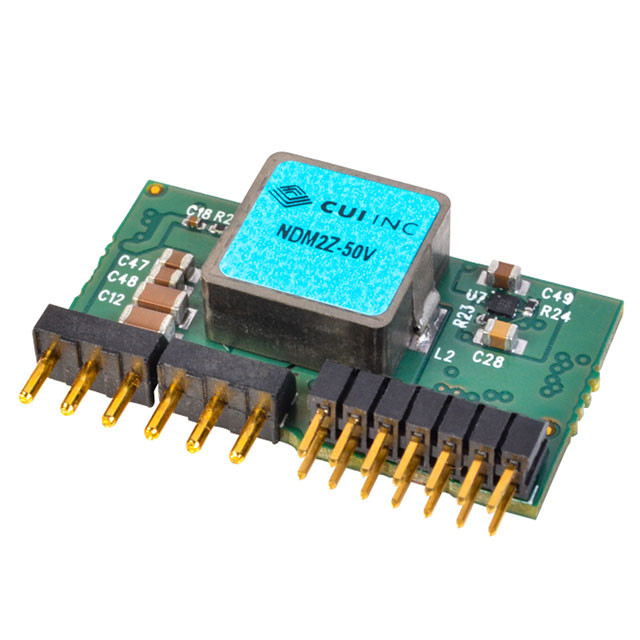

CUI Inc. NDM2Z-50V-A-001												14 V	1	20-SIP Module	4.5 V	0.6 V	3.3 V	50 A	Digital	Non-Isolated PoL Module Digital	125 °C	-40 C	0.71 in	18.1 mm	34 mm	1.34 "	0.3 "	7.6 mm	94.6 %	ITE (Commercial)	Through Hole
