74VCX00 Series

Low Voltage Quad 2-Input NAND Gate with 3.6V Tolerant Inputs and Outputs

Catalog

Low Voltage Quad 2-Input NAND Gate with 3.6V Tolerant Inputs and Outputs

Part	Current - Output High, Low	Supplier Device Package	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Logic Type	Package / Case [custom]	Package / Case [custom]	Package / Case	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Propagation Delay @ V, Max CL	Number of Circuits	Current - Quiescent (Max) [Max]	Number of Inputs	Package / Case [x]	Package / Case [y]
ON Semiconductor 74VCX00MTC	24 mA	14-TSSOP	2 V	1.6 V	0.8 V	0.7 V	85 °C	-40 °C	NAND Gate	0.173 "	4.4 mm	14-TSSOP	Surface Mount	1.2 V	3.6 V	2.8 ns	4	20 µA	2

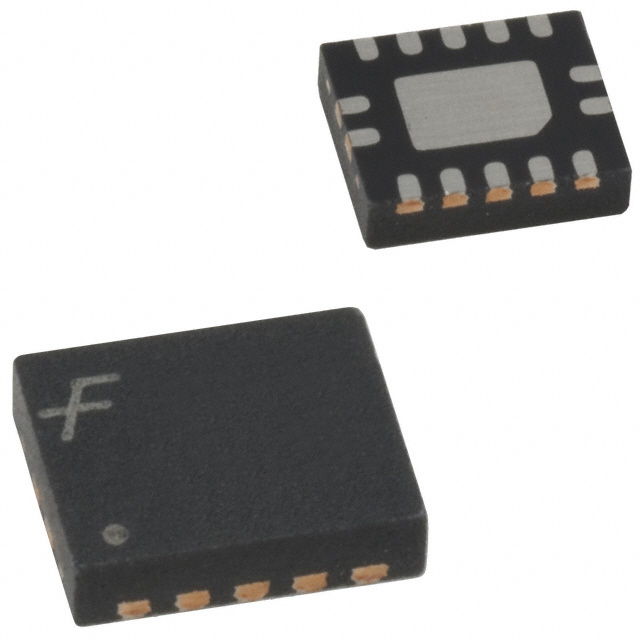

ON Semiconductor 74VCX00BQX	24 mA	14-DQFN (3x2.5)	2 V	1.6 V	0.8 V	0.7 V	85 °C	-40 °C	NAND Gate			14-VFQFN Exposed Pad	Surface Mount	1.2 V	3.6 V	2.8 ns	4	20 µA	2
ON Semiconductor 74VCX00MTCX	24 mA	14-TSSOP	2 V	1.6 V	0.8 V	0.7 V	85 °C	-40 °C	NAND Gate	0.173 "	4.4 mm	14-TSSOP	Surface Mount	1.2 V	3.6 V	2.8 ns	4	20 µA	2
ON Semiconductor 74VCX00MX	24 mA		2 V	1.6 V	0.8 V	0.7 V	85 °C	-40 °C	NAND Gate			14-SOIC	Surface Mount	1.2 V	3.6 V	2.8 ns	4	20 µA	2	0.154 in	3.9 mm
ON Semiconductor 74VCX00BQX	24 mA	14-DQFN (3x2.5)	2 V	1.6 V	0.8 V	0.7 V	85 °C	-40 °C	NAND Gate			14-VFQFN Exposed Pad	Surface Mount	1.2 V	3.6 V	2.8 ns	4	20 µA	2
ON Semiconductor 74VCX00MX	24 mA		2 V	1.6 V	0.8 V	0.7 V	85 °C	-40 °C	NAND Gate			14-SOIC	Surface Mount	1.2 V	3.6 V	2.8 ns	4	20 µA	2	0.154 in	3.9 mm

Catalog

Low Voltage Quad 2-Input NAND Gate with 3.6V Tolerant Inputs and Outputs

Key Features

• 1.2V to 3.6V VCCsupply operation

• 3.6V tolerant inputs and outputs

• tPD2.8 ns max for 3.0V to 3.6V VCC

• Power-off high impedance inputs and outputs

• Static Drive (IOH/IOL) ±24 mA @ 3.0V VCC

• Uses patented noise/EMI reduction circuitry

• Latchup performance exceeds JEDEC 78 conditions

• ESD performance: Human body model > 2000V Machine model > 250V

• Leadless Pb-Free DQFN package

Description

The VCX00 contains four 2-input NAND gates. This product is designed for low voltage (1.2V to 3.6V) VCCapplications with I/O compatibility up to 3.6V. The VCX00 is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation.
