SPMWHT327 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

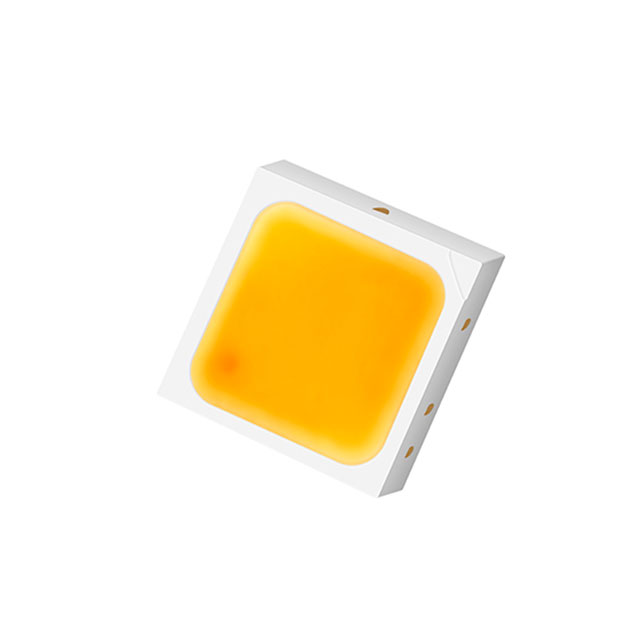

LED LM302A NEUT WHT 4000K 3030

Part	Thermal Resistance of Package	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Viewing Angle	CRI (Color Rendering Index)	CCT (K)	Package / Case	Package / Case	Flux @ 25°C, Current - Test	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Test	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]
Samsung Semiconductor, Inc. SPMWHT327FD5GBTMS4	12 °C/W	200 mA	0.03 "	0.75 mm	3030	120 °	80	4000 K	3030 Metric	1212	129 lm	137 lm/W	3 mm	0.118 in	3 mm	0.118 "	Neutral White	6.3 V	Surface Mount	150 mA
Samsung Semiconductor, Inc. SPMWHT327FD5GBW0S4	12 °C/W	200 mA	0.03 "	0.75 mm	3030	120 °	80	2700 K	3030 Metric	1212	122 lm	129 lm/W	3 mm	0.118 in	3 mm	0.118 "	Warm White	6.3 V	Surface Mount	150 mA	118 lm	126 lm
Samsung Semiconductor, Inc. SPMWHT327FD5GBQMS2	12 °C/W	200 mA	0.03 "	0.75 mm	3030	120 °	80	5700 K	3030 Metric	1212	115 lm	122 lm/W	3 mm	0.118 in	3 mm	0.118 "	Cool White	6.3 V	Surface Mount	150 mA
Samsung Semiconductor, Inc. SPMWHT327FD3GBQMS4	12 °C/W	200 mA	0.03 "	0.75 mm	3030	120 °	70	5700 K	3030 Metric	1212	131 lm	139 lm/W	3 mm	0.118 in	3 mm	0.118 "	Cool White	6.3 V	Surface Mount	150 mA
Samsung Semiconductor, Inc. SPMWHT327FD3GBTMS3	12 °C/W	200 mA	0.03 "	0.75 mm	3030	120 °	70	4000 K	3030 Metric	1212		128 lm/W	3 mm	0.118 in	3 mm	0.118 "	Neutral White	6.3 V	Surface Mount	150 mA	117 lm	125 lm
Samsung Semiconductor, Inc. SPMWHT327FD5GBP0S3	12 °C/W	200 mA	0.03 "	0.75 mm	3030	120 °	80	6500 K	3030 Metric	1212		128 lm/W	3 mm	0.118 in	3 mm	0.118 "	Cool White	6.3 V	Surface Mount	150 mA	117 lm	125 lm
Samsung Semiconductor, Inc. SPMWHT327FD5GBWMS3	12 °C/W	200 mA	0.03 "	0.75 mm	3030	120 °	80	2700 K	3030 Metric	1212	114 lm	121 lm/W	3 mm	0.118 in	3 mm	0.118 "	Warm White	6.3 V	Surface Mount	150 mA	110 lm	118 lm
Samsung Semiconductor, Inc. SPMWHT327FD5GBQ0S3	12 °C/W	200 mA	0.03 "	0.75 mm	3030	120 °	80	5700 K	3030 Metric	1212	123 lm	130 lm/W	3 mm	0.118 in	3 mm	0.118 "	Cool White	6.3 V	Surface Mount	150 mA
Samsung Semiconductor, Inc. SPMWHT327FD3GBVMS3	12 °C/W	200 mA	0.03 "	0.75 mm	3030	120 °	70	3000 K	3030 Metric	1212		123 lm/W	3 mm	0.118 in	3 mm	0.118 "	Warm White	6.3 V	Surface Mount	150 mA	112 lm	120 lm
Samsung Semiconductor, Inc. SPMWHT327FD5GBTMS3	12 °C/W	200 mA	0.03 "	0.75 mm	3030	120 °	80	4000 K	3030 Metric	1212		128 lm/W	3 mm	0.118 in	3 mm	0.118 "	Neutral White	6.3 V	Surface Mount	150 mA	117 lm	125 lm
