T350B Series

Manufacturer: KEMET

Catalog

CAP TANT SOLID 4.7UF 16V 10% (4.5 X 7.6MM) RADIAL 2.54MM 125°C BAG

Part	Lead Spacing	Lead Spacing	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Tolerance	Package / Case	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Height - Seated (Max) [Max]	Height - Seated (Max)
KEMET T350B475K016AS	2.54 mm	0.1 in	4.7 µF	4.5 mm	0.177 "	Through Hole	10 %	Radial	5 Ohm	B	-55 C	125 °C	General Purpose	16 V	0.299 in	7.6 mm	Conformal Coated

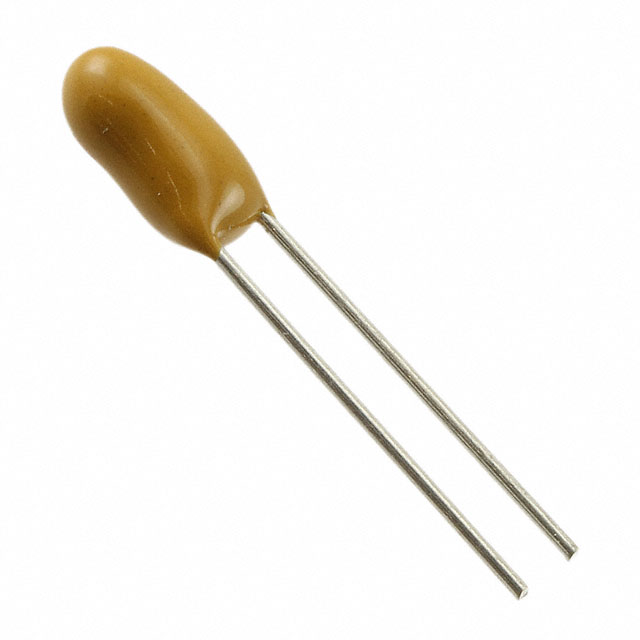

KEMET T350B225M025AT	2.54 mm	0.1 in	2.2 µF	4.45 mm	0.175 in	Through Hole	20 %	Radial	6 Ohms	B	-55 C	125 °C	General Purpose	25 VDC			Conformal Coated	0.3 in	7.62 mm
KEMET T350B475M016AT	2.54 mm	0.1 in	4.7 µF	4.5 mm	0.177 "	Through Hole	20 %	Radial		B	-55 C	125 °C	General Purpose	16 V	0.299 in	7.6 mm	Conformal Coated
KEMET T350B684K050AS	2.54 mm	0.1 in	0.68 µF	4.5 mm	0.177 "	Through Hole	10 %	Radial	10 Ohm	B	-55 C	125 °C	General Purpose	50 VDC	0.299 in	7.6 mm	Conformal Coated
KEMET T350B474K050AT	2.54 mm	0.1 in	0.47 µF	4.5 mm	0.177 "	Through Hole	10 %	Radial	13 Ohm	B	-55 C	125 °C	General Purpose	50 VDC	0.299 in	7.6 mm	Conformal Coated
KEMET T350B105K050AT	2.54 mm	0.1 in	1 µF	4.5 mm	0.177 "	Through Hole	10 %	Radial	8 Ohm	B	-55 C	125 °C	General Purpose	50 VDC	0.299 in	7.6 mm	Conformal Coated
KEMET T350B474K050AS	2.54 mm	0.1 in	0.47 µF	4.5 mm	0.177 "	Through Hole	10 %	Radial	13 Ohm	B	-55 C	125 °C	General Purpose	50 VDC	0.299 in	7.6 mm	Conformal Coated
KEMET T350B225K025AS7301	2.54 mm	0.1 in	2.2 µF	4.5 mm	0.177 "	Through Hole	10 %	Radial	6 Ohms	B	-55 C	125 °C	General Purpose	25 VDC	0.299 in	7.6 mm	Conformal Coated
KEMET T350B106K006AT	2.54 mm	0.1 in	10 µF	4.5 mm	0.177 "	Through Hole	10 %	Radial	6 Ohms	B	-55 C	125 °C	General Purpose	6.3 VDC	0.299 in	7.6 mm	Conformal Coated
