9WP1212 Series

Catalog

FAN AXIAL 120X38MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Ingress Protection	Power (Watts)	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Weight [custom]	Weight [custom]	Voltage - Rated	Bearing Type	Air Flow	Air Flow	Static Pressure	Static Pressure	RPM	Features	Approval Agency	Termination	Width [y]	Noise	Size / Dimension [z]	Size / Dimension [x]
Sanyo Denki America Inc. 9WP1212H101	0.38 A	Plastic	Plastic	13.8 VDC	7 V	40000 Hrs	IP68 - Dust Tight Waterproof	4.56 W	Tubeaxial	-20 ░C	70 °C	0.794 lb	360.15 g	12 VDC	Ball	2.77 m³/min	99 CFM	0.283 in H2O	70.5 Pa	2600 RPM	Speed Sensor (Tach)	CSA TUV UL	3 Wire Leads	38 mm	39 dB(A)	120 mm	120 mm

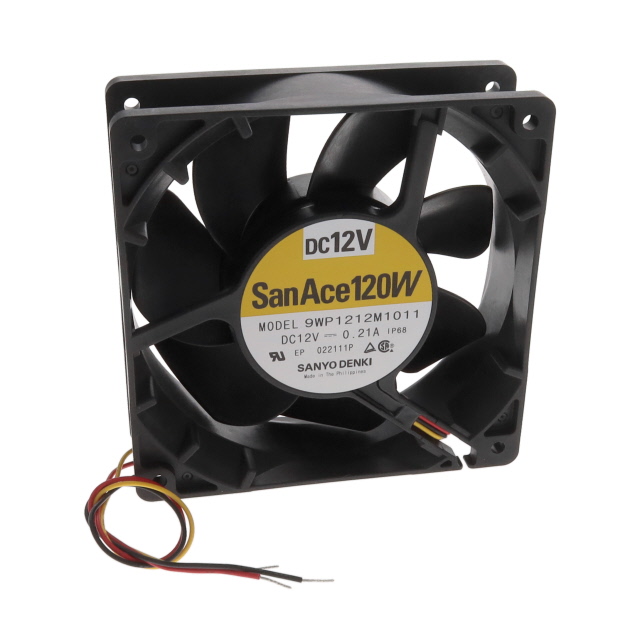

Sanyo Denki America Inc. 9WP1212M1011		Plastic	Plastic				IP68 - Dust Tight Waterproof	2.52 W	Tubeaxial					12 VDC	Ball						Locked Rotor Protection Speed Sensor (Tach)		3 Wire Leads	38 mm		120 mm	120 mm

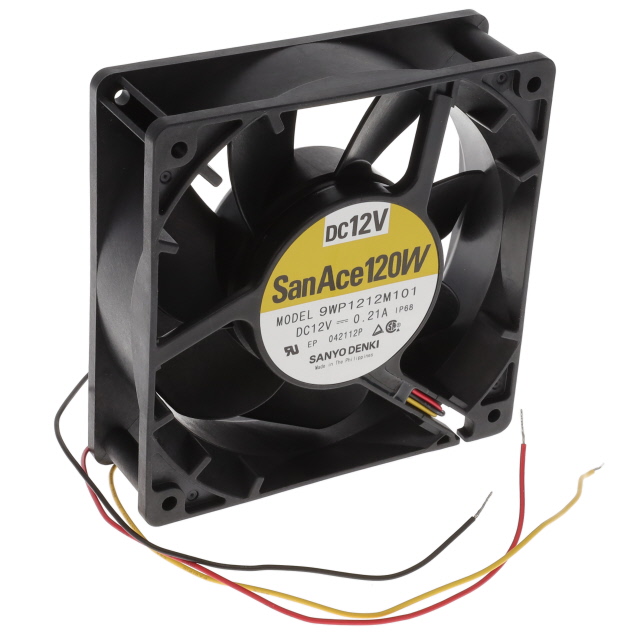

Sanyo Denki America Inc. 9WP1212M101		Plastic	Plastic				IP68 - Dust Tight Waterproof	2.52 W	Tubeaxial					12 VDC	Ball						Locked Rotor Protection Speed Sensor (Tach)		3 Wire Leads	38 mm		120 mm	120 mm
