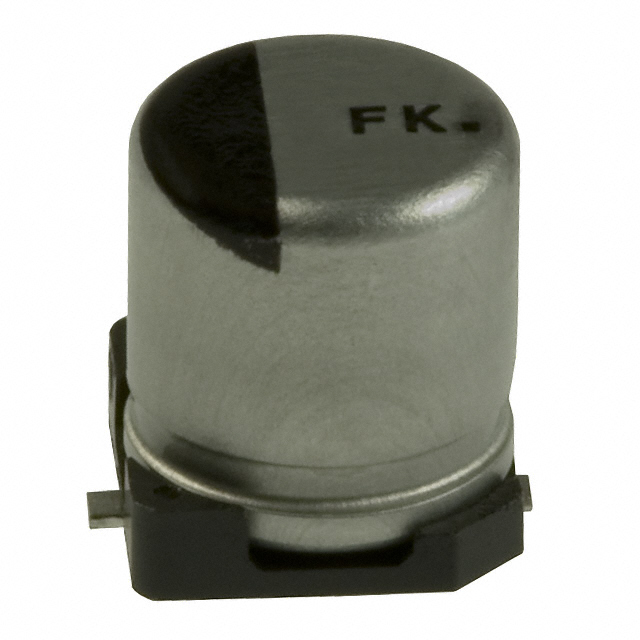

EEE-FKJ Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 470UF 20% 6.3V SMD

Part	Ripple Current @ Low Frequency	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Package / Case	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Lifetime @ Temp.	Capacitance	Polarization	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Voltage - Rated	Impedance
Panasonic Industrial Automation Sales EEE-FKJ471XSL	182 mA	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	Surface Mount	0.248 in	6.3 mm	Automotive	8 mm	0.315 in	340 mOhm	280 mA	2000 Hrs	470 µF	Polar	20 %	105 ░C	-55 °C	AEC-Q200	6.3 V
Panasonic Industrial Automation Sales EEE-FKJ101UAR	104 mA	0.209 in	5.3 mm	5.3 mm	0.209 in	Radial Can - SMD	Surface Mount	0.197 "	5 mm	Automotive High Temperature Reflow	6.1 mm	0.24 in		160 mA	2000 Hrs	100 µF	Polar	20 %	105 ░C	-55 °C	AEC-Q200	6.3 V	700 mOhms
Panasonic Industrial Automation Sales EEE-FKJ331XAL	182 mA	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	Surface Mount	0.248 in	6.3 mm	Automotive High Temperature Reflow	8 mm	0.315 in		280 mA	2000 Hrs	330 µF	Polar	20 %	105 ░C	-55 °C	AEC-Q200	6.3 V	340 mOhms
Panasonic Industrial Automation Sales EEE-FKJ331XAP	182 mA	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	Surface Mount	0.248 in	6.3 mm	Automotive High Temperature Reflow	8 mm	0.315 in		280 mA	2000 Hrs	330 µF	Polar	20 %	105 ░C	-55 °C	AEC-Q200	6.3 V	340 mOhms
Panasonic Industrial Automation Sales EEE-FKJ471XSV	182 mA	0.26 in	6.6 mm	6.6 mm	0.26 in	Radial Can - SMD	Surface Mount	0.248 in	6.3 mm	Automotive High Temperature Reflow	8.3 mm	0.327 in	340 mOhm	280 mA	2000 Hrs	470 µF	Polar	20 %	105 ░C	-55 °C	AEC-Q200	6.3 V
