BGC10 Series

Catalog

CONN RCPT HSG MALE 6P PNL MT RA

Part	Shielding	Contact Shape	Shell Size - Insert	Shell Finish	Fastening Type	Mounting Feature	Features	Type	Mounting Type	Insert Material	Note	Operating Temperature (Min)	Operating Temperature (Max)	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Position Types	Connector Type	Orientation	Includes Total Count	Includes	Material Flammability Rating	Housing Color
TE Intercontec BGC106N00001116000	Unshielded	Circular	M23-6	Chromate	Push-Twist	Flange	Backshell Rotatable	For Male Pins	Panel Mount Right Angle	Nylon 6/6 PA66 Polyamide	Contacts Not Included	-20 °C	130 °C	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	6	PE Power	Receptacle Housing	Keyed	3 pcs	Backshell Connector O-Ring	UL94 V-0	Silver

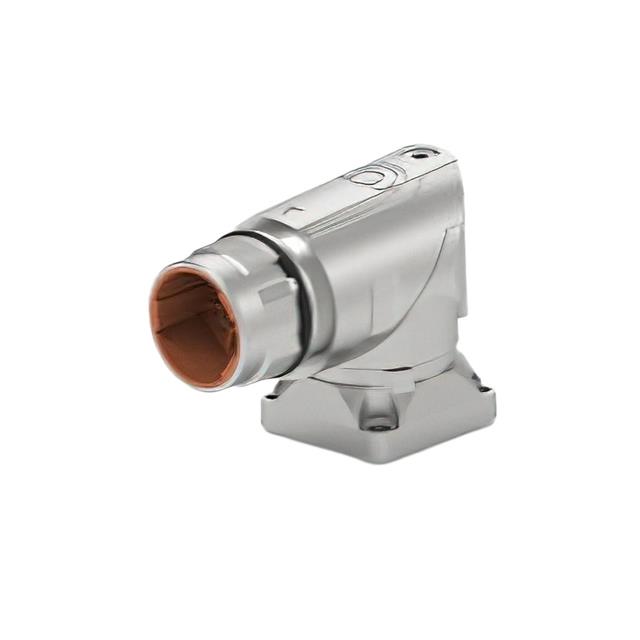

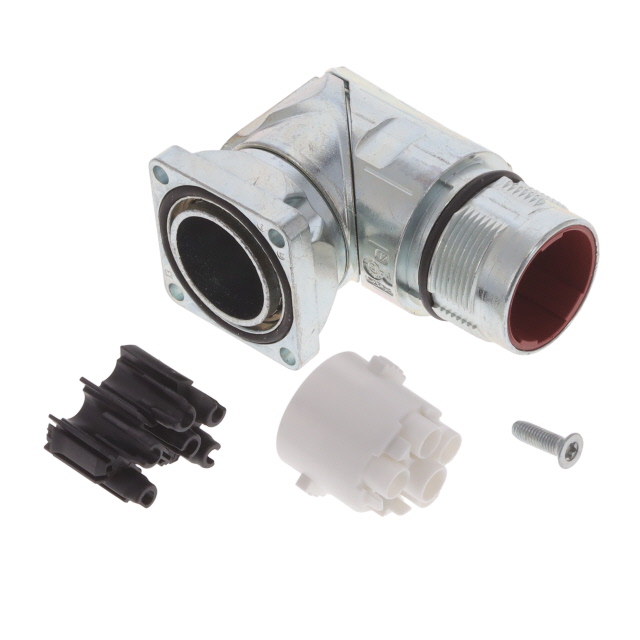

TE Intercontec BGC106N00001200000	Unshielded	Circular	M23-6	Chromate	Push-Twist	Flange	Backshell Rotatable	For Male Pins	Panel Mount Right Angle	Nylon 6/6 PA66 Polyamide	Contacts Not Included	-20 °C	130 °C	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	6	PE Power	Receptacle Housing	Keyed	3 pcs	Backshell Connector O-Ring	UL94 V-0	Silver
TE Intercontec BGC106N00001216000	Unshielded	Circular	M23-6	Chromate	Push-Twist	Flange	Backshell Rotatable	For Male Pins	Panel Mount Right Angle	Nylon 6/6 PA66 Polyamide	Contacts Not Included	-20 °C	130 °C	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	6	PE Power	Receptacle Housing	Keyed	3 pcs	Backshell Connector O-Ring	UL94 V-0	Silver
