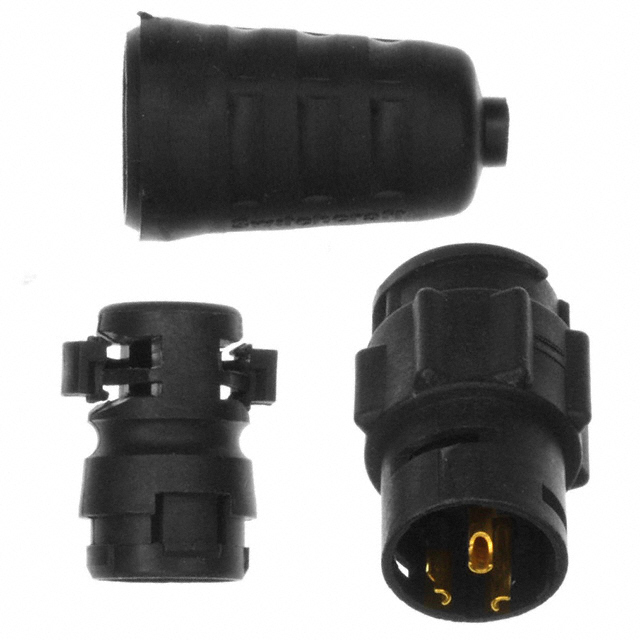

EN3L3M Series

Catalog

CONN RCPT MALE 3POS GOLD CRIMP

Part	Orientation	Mounting Type	Color	Features	Termination	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Material Flammability Rating	Applications	Shielding	Insert Material	Current Rating (Amps)	Contact Finish - Mating	Connector Type	Backshell Material, Plating	Primary Material	Ingress Protection	Voltage Rating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. EN3L3MCKX	Keyed	Free Hanging (In-Line)	Black	Backshell Cable Clamp	Crimp	Copper Alloy	4.06 mm 6.73 mm	0.16 in 0.265 in	UL94 V-0	General Purpose Instrumentation Marine Medical	Unshielded	Elastomer	7.5 A	Gold	Male Pins Receptacle	Thermoplastic	Plastic	IP66/IP68	250 VAC	Bayonet Lock	65 °C	-40 °C
Switchcraft Inc. EN3L3M16X	Keyed	Free Hanging (In-Line)	Black	Backshell Cable Clamp		Copper Alloy	4.06 mm 6.73 mm	0.16 in 0.265 in	UL94 V-0	General Purpose Instrumentation Marine Medical	Unshielded	Elastomer	13 A	Gold	Male Pins Receptacle	Thermoplastic	Plastic	IP66/IP68	250 VAC	Bayonet Lock	65 °C	-40 °C

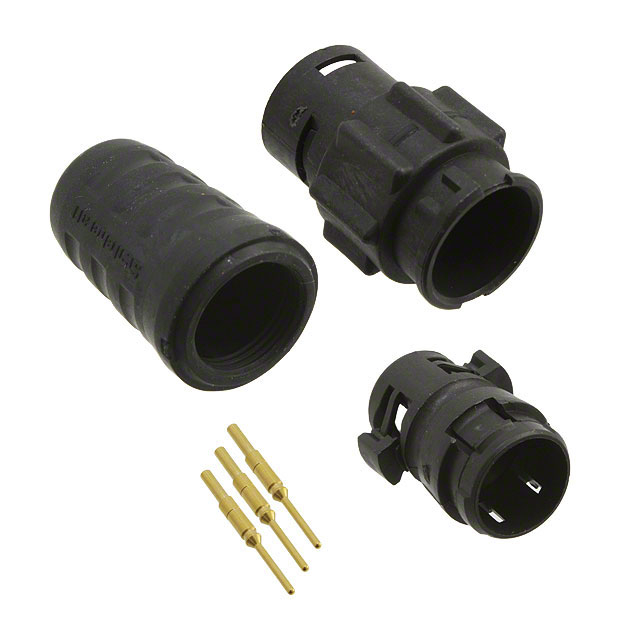

Switchcraft Inc. EN3L3MCX	Keyed	Free Hanging (In-Line)	Black	Backshell Cable Clamp	Crimp	Copper Alloy	4.06 mm 6.73 mm	0.16 in 0.265 in	UL94 V-0	General Purpose Instrumentation Marine Medical	Unshielded	Elastomer	7.5 A	Gold	Male Pins Receptacle	Thermoplastic	Plastic	IP66/IP68	250 VAC	Bayonet Lock	65 °C	-40 °C
Switchcraft Inc. EN3L3M16KX	Keyed	Free Hanging (In-Line)	Black	Backshell Cable Clamp		Copper Alloy	4.06 mm 6.73 mm	0.16 in 0.265 in	UL94 V-0	General Purpose Instrumentation Marine Medical	Unshielded	Elastomer	13 A	Gold	Male Pins Receptacle	Thermoplastic	Plastic	IP66/IP68	250 VAC	Bayonet Lock	65 °C	-40 °C
