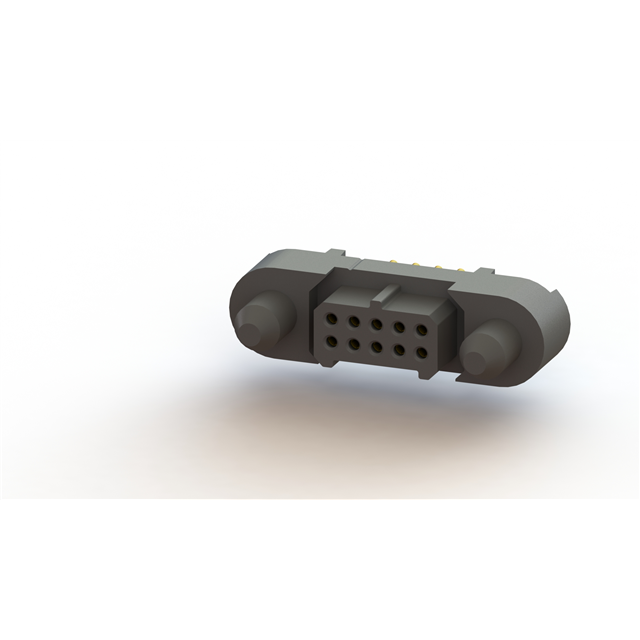

A222Y10 Series
Manufacturer: Nicomatic
Beta
⌘K
FEM. 10POS STRAIGHT TRGH 1.27MM
| Part | Insulation Material | Contact Material | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Row Spacing - Mating | Row Spacing - Mating | Connector Type | Voltage Rating | Insulation Color | Mounting Type | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Number of Positions | Features | Contact Type | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Fastening Type | Material Flammability Rating | Number of Positions Loaded | Contact Finish - Post | Termination | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | Liquid Crystal Polymer (LCP) | Copper Alloy | Circular | 0.15 µm | 5.9 µin | 4.4 mm | 0.173 in | 0.039 in | 1 mm | Receptacle | 600 VAC | Black | Through Hole | 5.9 µin | 0.15 µm | 10 | Guide Pin Mating Guide | Female Socket | 1 mm | 0.039 in | 2.5 A | -65 ░C | 200 °C | Gold | 0.122 in | 3.1 mm | Push-Pull | UL94 V-0 | All | Gold | Solder | 2 |
 Nicomatic | Liquid Crystal Polymer (LCP) | Copper Alloy | Circular | 0.15 µm | 5.9 µin | 4.4 mm | 0.173 in | 0.039 in | 1 mm | Receptacle | 600 VAC | Black | Through Hole | 5.9 µin | 0.15 µm | 10 | Jackscrews Mating Flange Mounting Flange Polarizing Key | Female Socket | 1 mm | 0.039 in | 2.5 A | -65 ░C | 200 °C | Gold | 0.122 in | 3.1 mm | UL94 V-0 | All | Gold | Solder | 2 |
