859-008 Series
Manufacturer: NorComp Inc.
Beta
⌘K

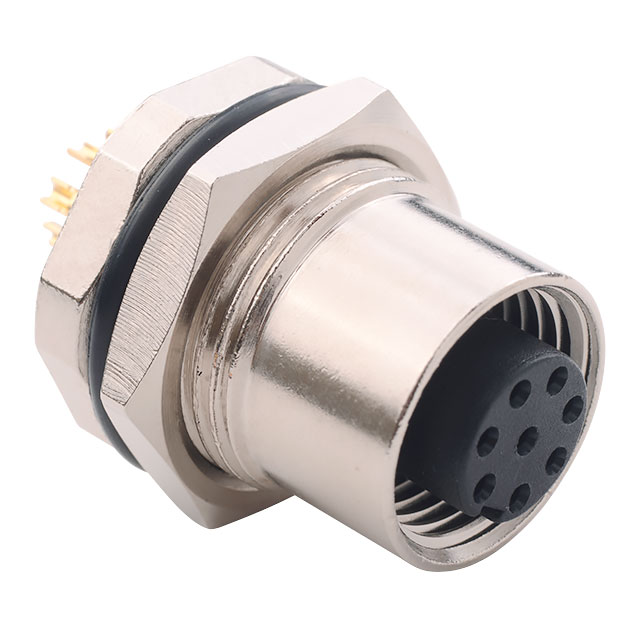

SENSOR CONNECTOR, SHIELDED, VULCON SERIES, M12, FEMALE, 8 POSITIONS, SOLDER SOCKET
| Part | Insert Material | Contact Material | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Orientation | Shielding | Mounting Feature | Contact Finish - Mating | Number of Positions | Shell Material | Shell Size - Insert | Mounting Type | Material Flammability Rating | Fastening Type | Voltage Rating | Current Rating (Amps) | Shell Finish | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | Industrial Medical | 0.25 µm | 10 µin | Plug Female Sockets | Metal | 85 °C | -40 C | IP67 - Dust Tight Waterproof | A | Shielded | Bulkhead - Front Side Nut | Gold | 8 | Brass | M12-8 | Panel Mount | UL94 V-0 | Threaded | 30 VDC | 2 A | Nickel | Silver |
