726-036 Series
Manufacturer: EDAC Inc.
Beta
⌘K

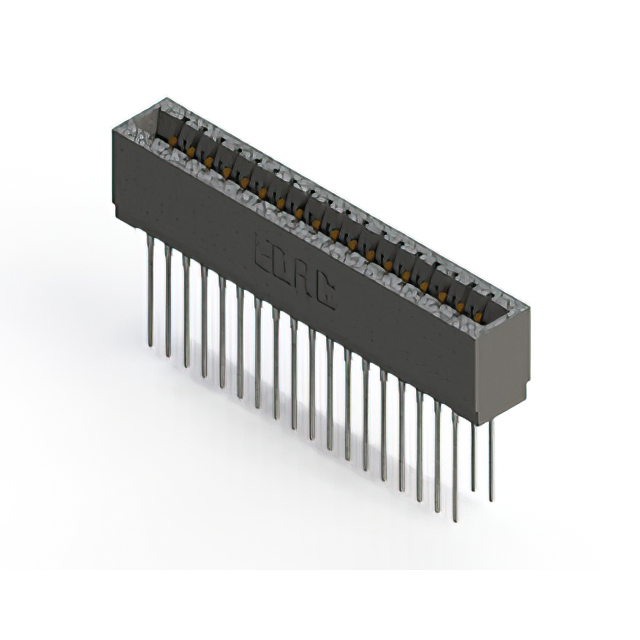

CONN EDGE DUAL FMALE 36POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Color | Contact Finish | Card Type | Contact Material | Number of Positions/Bay/Row [custom] | Read Out | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Type | Termination Rows | Number of Rows | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Gold | Non Specified - Dual Edge | Copper Alloy | 18 | Dual | Press-Fit Wire Wrap | Through Hole | 30 Áin | 0.76 Ám | 2 | 36 | -40 C | 105 ░C | Female | Cantilever | |||
 EDAC Inc. | Polyester Thermoplastic | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Gold | Non Specified - Single Edge | Copper Alloy | Single | Press-Fit Wire Wrap | Through Hole | 30 Áin | 0.76 Ám | 36 | -40 C | 105 ░C | Female | Cantilever | 1 | 1 | 36 |
