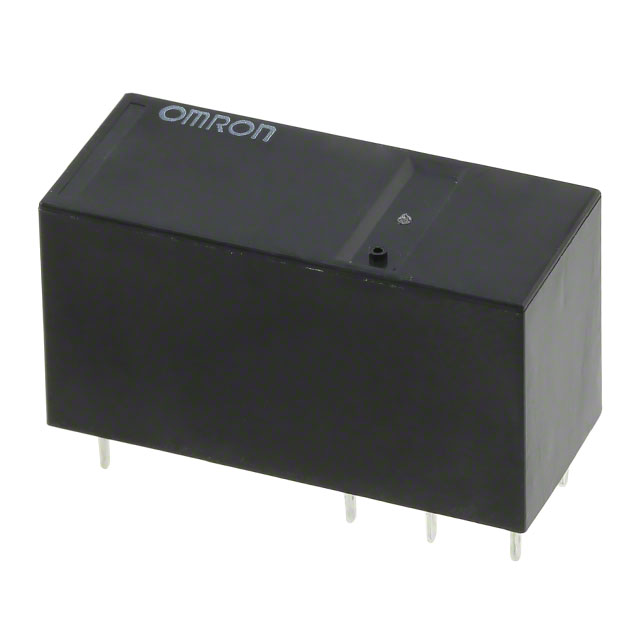

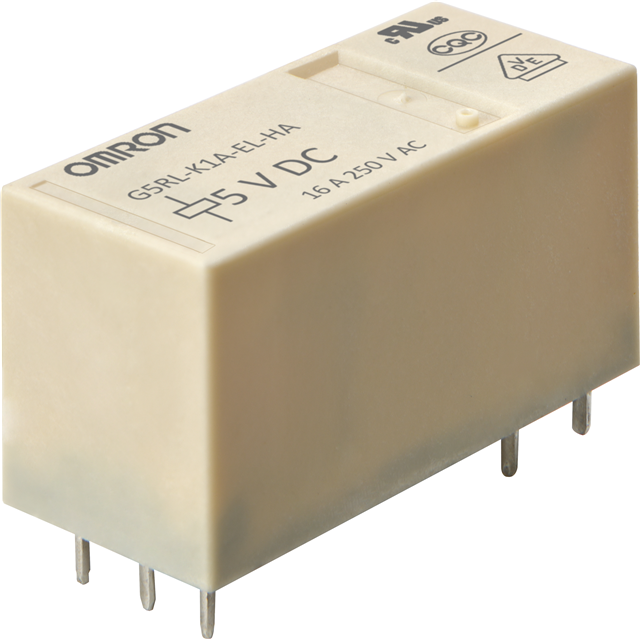

G5RL-K1 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 5V
| Part | Coil Voltage | Coil Resistance | Contact Material | Switching Voltage | Coil Current | Release Time | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Load - Max Switching | Approval Agency | Seal Rating | Termination Style | Coil Type | Contact Rating (Current) | Must Operate Voltage | Operate Time | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 5 VDC | 33.3 Ohms | Cadmium Free Silver Alloy | 24 VDC 250 VAC | 150 mA | 10 ms | General Purpose | 85 °C | -40 °C | SPST-NO (1 Form A) | 384 W 4000 VA | CQC CSA cURus UR VDE | Sealed - Flux Protection | PC Pin | Latching Dual Coil | 16 A | 3.5 VDC | 10 ms | Through Hole |
 Omron Electronics Inc-EMC Div | 5 VDC | 33 Ohms | Cadmium Free Silver Alloy | 24 VDC 250 VAC | 150 mA | 15 ms | General Purpose | 85 °C | -40 °C | SPDT (1 Form C) | 384 W 4000 VA | CQC CSA cURus UR VDE | Sealed - Flux Protection | PC Pin | Latching Dual Coil | 16 A | 3.5 VDC | 15 ms | Through Hole |
 Omron Electronics Inc-EMC Div | 24 VDC | 686 Ohms | Cadmium Free Silver Alloy | 24 VDC 250 VAC | 35 mA | 15 ms | General Purpose | 85 °C | -40 °C | SPST-NO (1 Form A) | 384 W 4000 VA | CQC CSA cURus UR VDE | Sealed - Flux Protection | PC Pin | Latching Dual Coil | 16 A | 16.8 VDC | 15 ms | Through Hole |
Omron Electronics Inc-EMC Div | 12 VDC | 192 Ohms | Cadmium Free Silver Alloy | 24 VDC 250 VAC | 62.5 mA | 15 ms | General Purpose | 85 °C | -40 °C | SPDT (1 Form C) | 384 W 4000 VA | CQC CSA cURus UR VDE | Sealed - Flux Protection | PC Pin | Latching Dual Coil | 16 A | 8.4 VDC | 15 ms | Through Hole |
