BR1111 Series
Manufacturer: Stanley Electric Co
Beta
⌘K

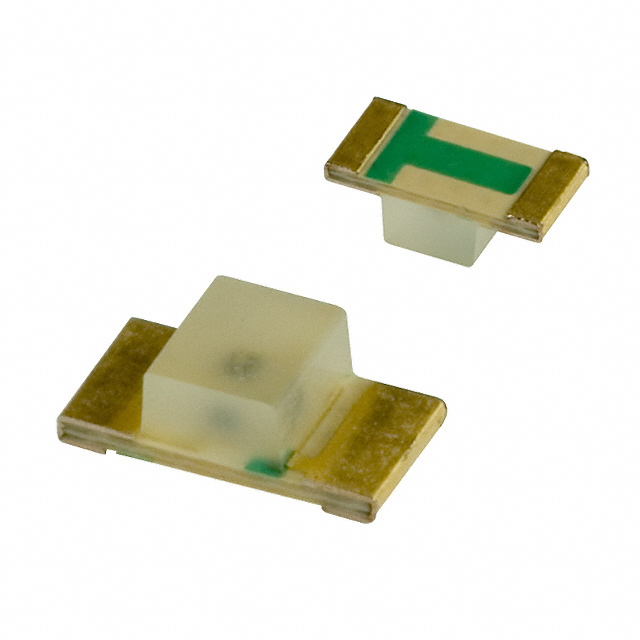

LED RED DIFF 3216 SMD BOTTOM ENT
| Part | Configuration | Supplier Device Package | Lens Transparency | Wavelength - Peak | Viewing Angle | Millicandela Rating | Lens Size [x] | Lens Size [y] | Mounting Type | Wavelength - Dominant | Size / Dimension [y] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Height (Max) [Max] [z] | Current - Test | Package / Case | Lens Color | Lens Style | Color | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | Standard | 3216 Type | Diffused | 660 nm | 149 ° 151 ° | 12.7 mcd | 1.4 mm | 1.6 mm | Surface Mount Bottom Entry | 647 nm | 1.6 mm | 3.2 mm | 1.7 V | 1.3 mm | 20 mA | 1206 (3216 Metric) | White | Rectangle with Flat Top | Red | |
 Stanley Electric Co | Standard | 1608 | Diffused | 660 nm | 136 ° 141 ° | 11.7 mcd | 1.1 mm | 0.8 mm | Surface Mount | 647 nm | 0.8 mm | 1.6 mm | 1.7 V | 0.8 mm | 20 mA | 0603 | White | Rectangle with Flat Top | Red | 1608 Metric |
