1986370 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PLUGGABLE TERMINAL BLOCK, 3.5 MM, 7 POSITIONS, 30 AWG, 14 AWG, 2 MM², SCREW

Part	Number of Levels	Plug Wire Entry	Operating Temperature [Min]	Operating Temperature [Max]	Color	Type	Voltage - UL	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Screw Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Material	Positions Per Level	Termination Style	Mounting Type	Pitch [x]	Pitch [x]	Current - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Positions	Features	Material Flammability Rating	Insulation Height	Insulation Height	Contact Mating Finish	Number of Positions
TE Connectivity Raychem Cable Protection 1986370-7	1	90 °	-40 °C	110 °C	Green	Plug Female Sockets	300 V	2 mm˛	0.05 mm˛	M2	0.05 mm²	2 mm²	Phosphor Bronze	7	Screw - Rising Cage Clamp	Free Hanging (In-Line)	3.5 mm	0.138 in	11 A	14 AWG	30 AWG	7	Side Stacking	UL94 V-0	0.756 in	19.2 mm	Tin
TE Connectivity Raychem Cable Protection 1-1986370-3	1	90 °	-40 °C	110 °C	Green	Plug Female Sockets	300 V			M2	0.05 mm²	2 mm²	Phosphor Bronze	13	Screw - Rising Cage Clamp	Free Hanging (In-Line)	3.5 mm	0.138 in	11 A	14 AWG	30 AWG	13	Side Stacking	UL94 V-0	0.756 in	19.2 mm	Tin

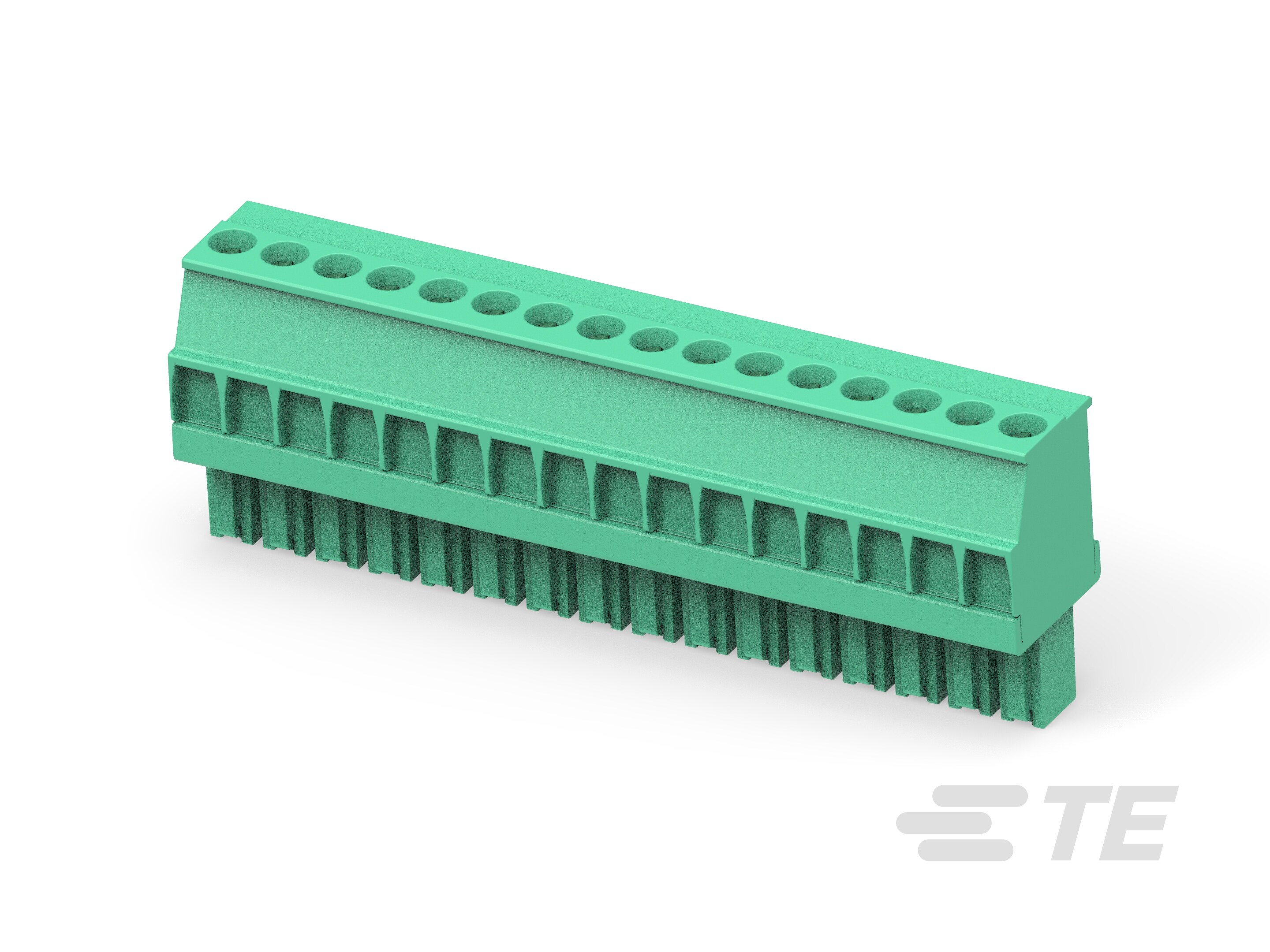

TE Connectivity Raychem Cable Protection 1-1986370-6	1	90 °	-40 °C	110 °C	Green	Plug Female Sockets	300 V			M2	0.05 mm²	2 mm²	Phosphor Bronze	16	Screw - Rising Cage Clamp	Free Hanging (In-Line)	3.5 mm	0.138 in	11 A	14 AWG	30 AWG		Side Stacking	UL94 V-0	0.756 in	19.2 mm	Tin	16
TE Connectivity Raychem Cable Protection 1986370-2	1	90 °	-40 °C	110 °C	Green	Plug Female Sockets	300 V	2 mm˛	0.05 mm˛	M2			Phosphor Bronze	2	Screw - Rising Cage Clamp	Free Hanging (In-Line)	3.5 mm	0.138 in	11 A	14 AWG	30 AWG	2	Side Stacking	UL94 V-0	0.756 in	19.2 mm	Tin
TE Connectivity Raychem Cable Protection 1986370-9	1	90 °	-40 °C	110 °C	Green	Plug Female Sockets	300 V			M2	0.05 mm²	2 mm²	Phosphor Bronze	9	Screw - Rising Cage Clamp	Free Hanging (In-Line)	3.5 mm	0.138 in	11 A	14 AWG	30 AWG	9	Side Stacking	UL94 V-0	0.756 in	19.2 mm	Tin
TE Connectivity Raychem Cable Protection 1-1986370-4	1	90 °	-40 °C	110 °C	Green	Plug Female Sockets	300 V			M2	0.05 mm²	2 mm²	Phosphor Bronze	14	Screw - Rising Cage Clamp	Free Hanging (In-Line)	3.5 mm	0.138 in	11 A	14 AWG	30 AWG	14	Side Stacking	UL94 V-0	0.756 in	19.2 mm	Tin
