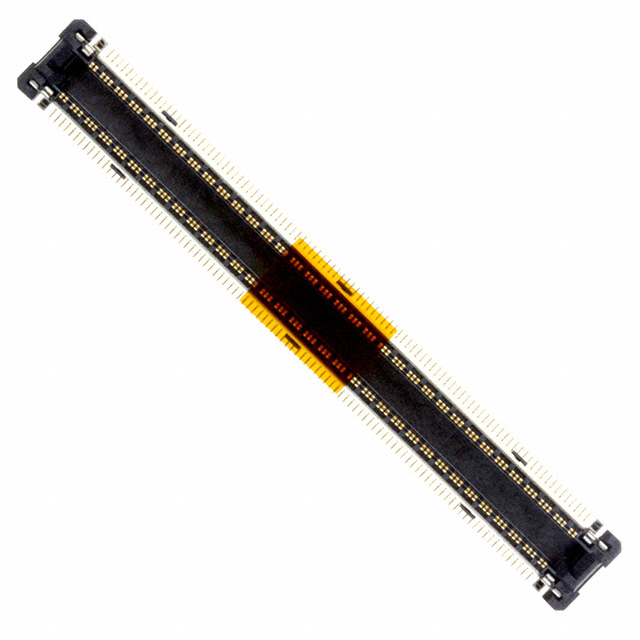

WB3M200 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONNECTOR
| Part | Mated Stacking Heights | Contact Finish | Number of Rows [custom] | Number of Positions | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Features | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | |||||||||||||
JAE Electronics | |||||||||||||
JAE Electronics | 4 mm | Gold | 2 | 200 | 0.02 " | 0.5 mm | 3.7 mm | 0.146 in | Board Guide Solder Retention | Plug Outer Shroud Contacts | 30 Áin | 0.76 Ám | Surface Mount |
 JAE Electronics | 5 mm | Gold | 2 | 200 | 0.02 " | 0.5 mm | 4.7 mm | 0.185 in | Board Guide Solder Retention | Plug Outer Shroud Contacts | 30 Áin | 0.76 Ám | Surface Mount |
