PPPN152 Series

Catalog

CONN HDR 30POS 0.079 GOLD PCB

Part	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Shape	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Fastening Type	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Number of Positions Loaded	Contact Finish - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Finish - Post	Mounting Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Color	Termination

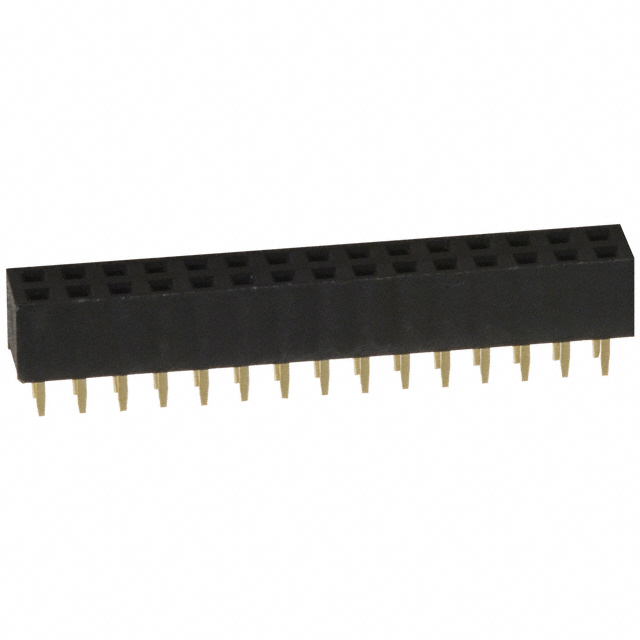

Sullins Connector Solutions PPPN152AFCN	Flash	Polyester	Phosphor Bronze	Square	UL94 V-0	-40 C	105 ░C	30	Push-Pull	Flash	2 mm	0.079 in	Header	All	Gold	Female Socket	0.079 "	2 mm	2	Gold	Through Hole	4.3 mm	0.169 "	2.4 mm	0.094 in	Black	Solder
