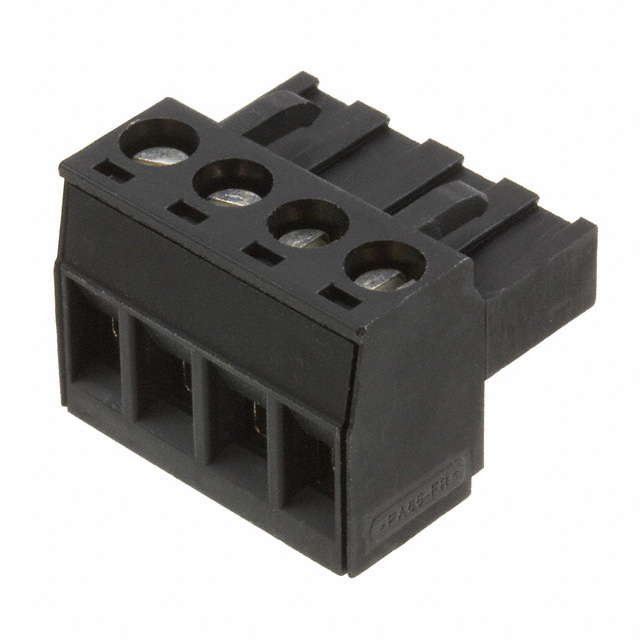

MSTBT Series

Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12 AWG Screw

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12 AWG Screw

Catalog

Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12 AWG Screw

Part	Wire Strip Length	Insulation Height [custom]	Insulation Height [custom]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Screw Size	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Color	Type	Plug Wire Entry	Current - IEC	Termination Style	Features	Positions Per Level	Mounting Type	Pitch	Pitch	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Mating Finish	Material Flammability Rating	Housing Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Voltage - UL
Phoenix Contact 1768075	7 mm	0.591 in	15 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	1	2.5 mm²	0.2 mm²	250 V	Green	Plug Female Sockets	180 °	12 A	Screw - Rising Cage Clamp	Positions Stamped Retention Latches (Non-Wire Side)	4	Free Hanging (In-Line)	0.197 in	5 mm	4	30 AWG	12 AWG	Tin
Phoenix Contact 1700199									1					Plug Female Sockets	180 °		Screw - Rising Cage Clamp	Positions Stamped Retention Latches (Non-Wire Side)	4	Free Hanging (In-Line)	0.197 in	5 mm	4			Tin
Phoenix Contact 1741209	7 mm	0.591 in	15 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	1	2.5 mm²	0.2 mm²	250 V	Green	Plug Female Sockets	180 °	12 A	Screw - Rising Cage Clamp	Positions Stamped Retention Latches (Non-Wire Side)	4	Free Hanging (In-Line)	0.197 in	5 mm	4	30 AWG	12 AWG	Tin	UL94 V-0	Polyamide (PA) Nylon	2.5 mm˛	0.2 mm˛
Phoenix Contact 1771318	7 mm	0.591 in	15 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	1	2.5 mm²	0.2 mm²	250 V	Green	Plug Female Sockets	180 °	12 A	Screw - Rising Cage Clamp		5	Free Hanging (In-Line)	0.2 in	5.08 mm	5	30 AWG	12 AWG	Gold
Phoenix Contact 1805385	7 mm	0.591 in	15 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	1	2.5 mm²	0.2 mm²	630 V	Green	Plug Female Sockets	180 °	12 A	Screw - Rising Cage Clamp	Mating Flange	11	Free Hanging (In-Line)	0.2 in	5.08 mm	11	30 AWG	12 AWG	Tin	UL94 V-0	Polyamide (PA) Nylon			300 V
Phoenix Contact 1779848									1	2.5 mm²	0.2 mm²	630 V	Green	Plug Female Sockets	180 °	12 A	Screw - Rising Cage Clamp		3	Free Hanging (In-Line)	0.197 in	5 mm		30 AWG	12 AWG	Tin					300 V
Phoenix Contact 1893313	7 mm	0.591 in	15 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	1	2.5 mm²	0.2 mm²	630 V	Black	Plug Female Sockets	180 °	12 A	Screw - Rising Cage Clamp		4	Free Hanging (In-Line)	0.197 in	5 mm	4	30 AWG	12 AWG	Tin	UL94 V-2	Polyamide (PA) Nylon	2.5 mm˛	0.2 mm˛	300 V
Phoenix Contact 1971947	7 mm	0.591 in	15 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	1	2.5 mm²	0.2 mm²	630 V	Gray	Plug Female Sockets	180 °	12 A	Screw - Rising Cage Clamp		3	Free Hanging (In-Line)	0.197 in	5 mm		30 AWG	12 AWG	Tin	UL94 V-2	Polyamide (PA) Nylon			300 V

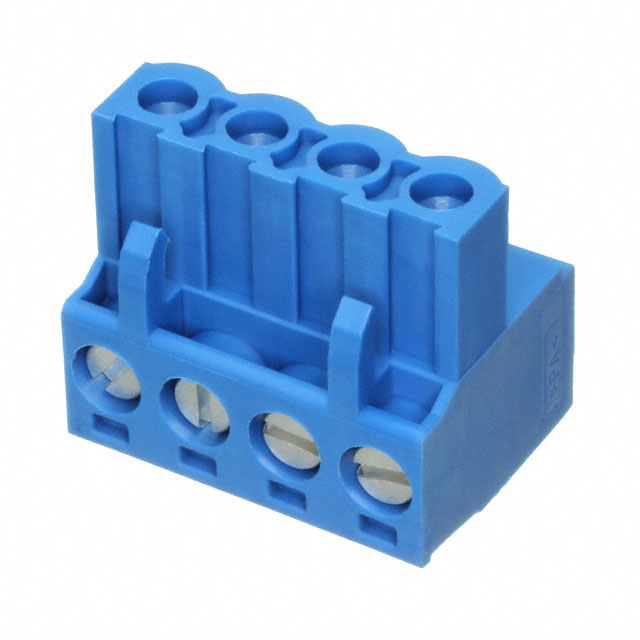

Phoenix Contact 1878040	7 mm	0.591 in	15 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	1	2.5 mm²	0.2 mm²	630 V	Blue	Plug Female Sockets	180 °	12 A	Screw - Rising Cage Clamp		4	Free Hanging (In-Line)	0.197 in	5 mm	4	30 AWG	12 AWG	Tin	UL94 V-2	Polyamide (PA) Nylon	2.5 mm˛	0.2 mm˛	300 V
Phoenix Contact 1974436									1	2.5 mm²	0.2 mm²	250 V	Green	Plug Female Sockets	180 °	12 A	Screw - Rising Cage Clamp	Positions Stamped Retention Latches (Non-Wire Side)	4	Free Hanging (In-Line)	0.197 in	5 mm	4	30 AWG	12 AWG	Tin
