895-006 Series
Manufacturer: EDAC Inc.
Beta
⌘K

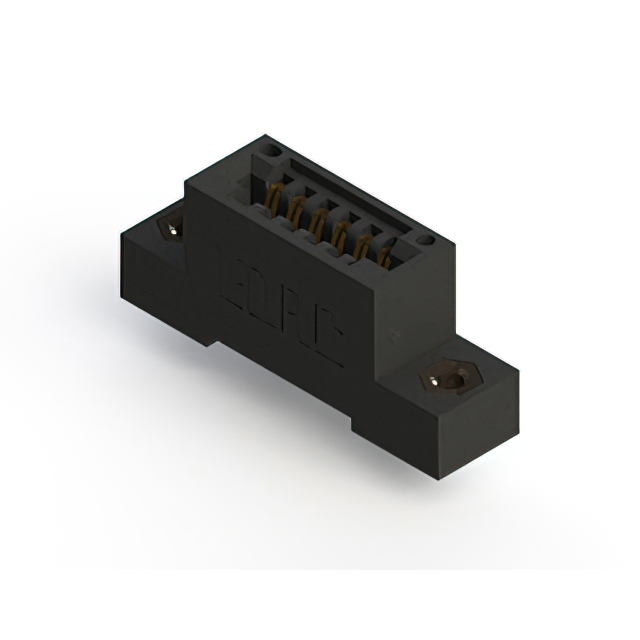

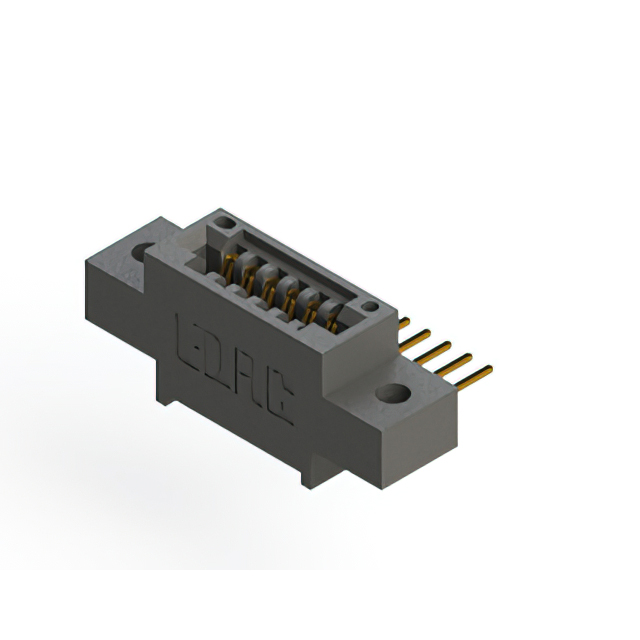

CONN EDGE SINGLE FML 6POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Color | Contact Finish | Read Out | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Number of Rows | Mounting Type | Termination | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Number of Positions | Gender | Contact Material | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | 3.25 mm | 0.128 " | Black | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 1 | Through Hole | Solder Eyelet(s) | Non Specified - Single Edge | 125 °C | -40 C | 0.25 Ám | 10 Áin | 6 | 6 | Female | Copper Alloy | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | 2.95 mm | 0.116 " | Black | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 1 | Through Hole | Solder | Non Specified - Single Edge | 125 °C | -40 C | 0.25 Ám | 10 Áin | 6 | 6 | Female | Copper Alloy | Floating Bobbin Flush Mount |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | 2.95 mm | 0.116 " | Black | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 1 | Through Hole | Solder | Non Specified - Single Edge | 125 °C | -40 C | 0.25 Ám | 10 Áin | 6 | 6 | Female | Copper Alloy | Floating Bobbin Top Mount Opening |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Black | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 1 | Through Hole | Solder Eyelet(s) | Non Specified - Single Edge | 125 °C | -40 C | 0.25 Ám | 10 Áin | 6 | 6 | Female | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Black | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 1 | Through Hole | Solder | Non Specified - Single Edge | 125 °C | -40 C | 0.25 Ám | 10 Áin | 6 | 6 | Female | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | 3.96 mm | 0.156 " | Black | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 1 | Through Hole | Solder | Non Specified - Single Edge | 125 °C | -40 C | 0.25 Ám | 10 Áin | 6 | 6 | Female | Copper Alloy | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | 3.25 mm | 0.128 " | Black | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 1 | Right Angle Through Hole | Solder | Non Specified - Single Edge | 125 °C | -40 C | 0.25 Ám | 10 Áin | 6 | 6 | Female | Copper Alloy | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | 3.25 mm | 0.128 " | Black | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 1 | Through Hole | Solder Eyelet(s) | Non Specified - Single Edge | 125 °C | -40 C | 0.25 Ám | 10 Áin | 6 | 6 | Female | Copper Alloy | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | 3.25 mm | 0.128 " | Black | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 1 | Through Hole | Solder | Non Specified - Single Edge | 125 °C | -40 C | 0.25 Ám | 10 Áin | 6 | 6 | Female | Copper Alloy | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | 2.95 mm | 0.116 " | Black | Gold | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 1 | Through Hole | Solder | Non Specified - Single Edge | 125 °C | -40 C | 0.25 Ám | 10 Áin | 6 | 6 | Female | Copper Alloy | Floating Bobbin Top Mount Opening |
