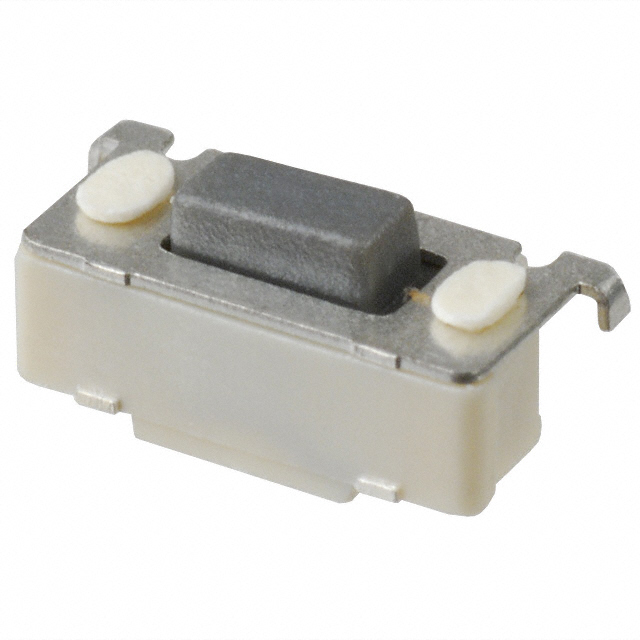

TL3330 Series
Manufacturer: E-Switch
Beta
⌘K
TACTILE SWITCHES 50MA@12VDC 260G OF SILVER CONTACTS
| Part | Termination Style | Contact Rating @ Voltage | Actuator Orientation | Operating Force | Outline [x] | Outline [y] | Mounting Type | Actuator Length, Right Angle | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Illumination | Switch Function | Actuator Material | Switch Travel | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Gull Wing | 0.05 A 12 VDC | Side Actuated | 260 gf | 7.8 mm | 2.5 mm | Right Angle Surface Mount | 3.5 mm | SPST-NO | -30 ░C | 70 °C | Rectangular Button | Non-Illuminated | Off-Mom | |||
 E-Switch | Gull Wing | 0.05 A 12 VDC | Side Actuated | 130 gf | 7.8 mm | 2.5 mm | Right Angle Surface Mount | 3.5 mm | SPST-NO | -30 ░C | 70 °C | Rectangular Button | Non-Illuminated | Off-Mom | Polyamide (PA) Nylon | 0.25 mm | 50000 Cycles |
