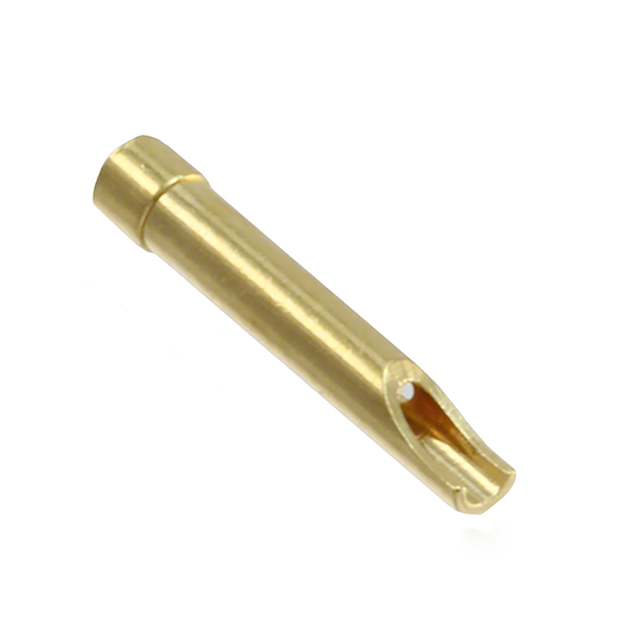

4485-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PIN RCPT .015-.022 SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Length - Overall | Length - Overall [x] | Socket Depth | Socket Depth | Termination | Contact Finish | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Tail Type | Mounting Hole Diameter | Mounting Hole Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.031 in | 0.79 mm | 9.25 mm | 0.364 in | 4.72 mm | 0.186 " | Solder | Gold | 0.38 mm | 0.022 in | 0.015 " | 0.56 mm | 30 Áin | 0.76 Ám | Beryllium Copper | 0.064 " | 1.63 mm | No Tail | 0.059 in | 1.5 mm |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.031 in | 0.79 mm | 9.25 mm | 0.364 in | 4.72 mm | 0.186 " | Solder | Gold | 0.38 mm | 0.022 in | 0.015 " | 0.56 mm | 30 Áin | 0.76 Ám | Beryllium Copper | 0.064 " | 1.63 mm | No Tail | 0.059 in | 1.5 mm |
