2316108 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

28P,2MM,REC,HSG,DR,CRIMP,PLAIN,B

Part	Row Spacing	Row Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Mounting Type	Contact Termination	Contact Type	Number of Rows	Insulation Material	Number of Positions	Connector Type	Color	Fastening Type	Note	Number of Positions

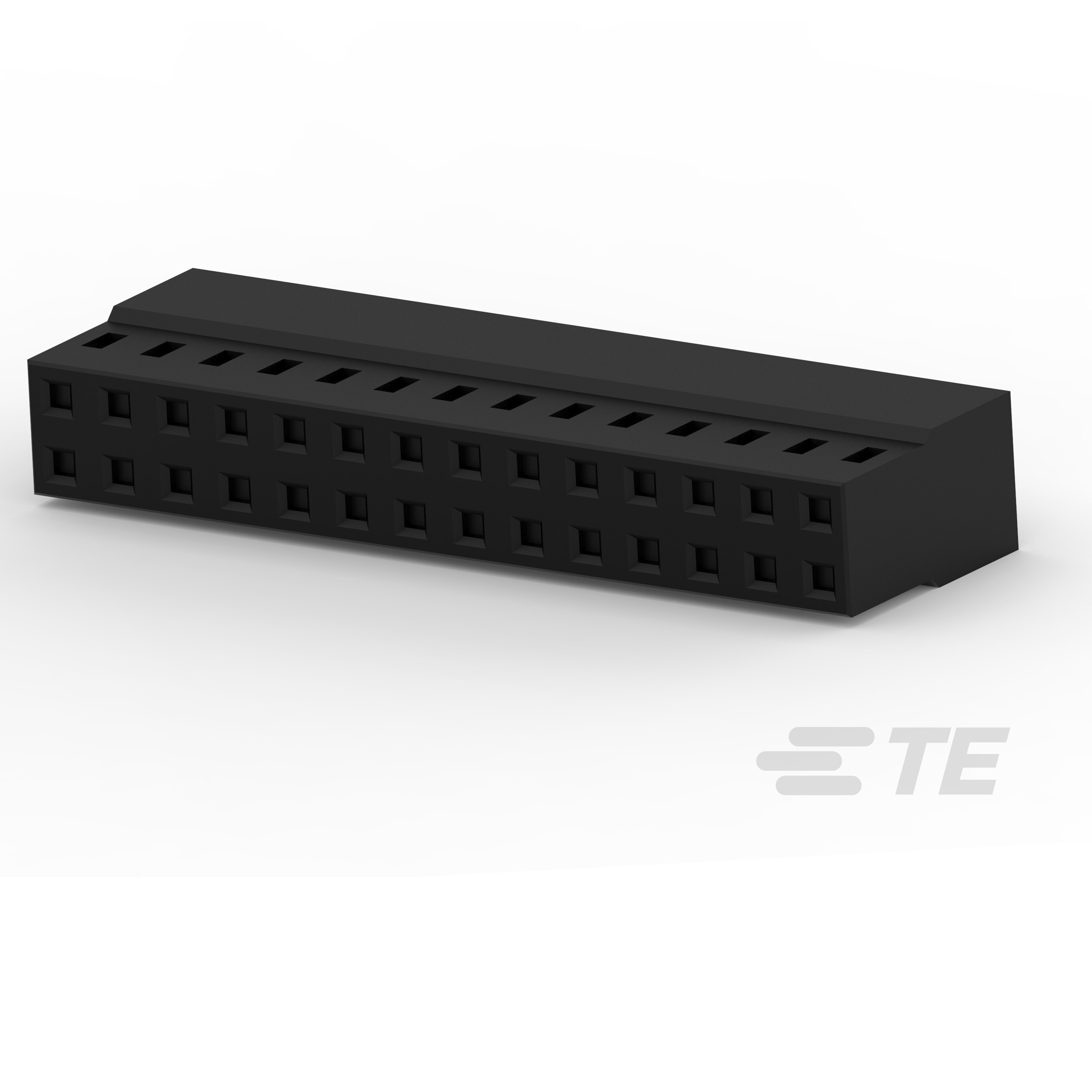

TE Connectivity Raychem Cable Protection 2-2316108-8	2 mm	0.079 in	125 °C	-40 °C	0.079 in	2 mm	Free Hanging (In-Line)	Crimp	Female Socket	2	Liquid Crystal Polymer (LCP)	28	Receptacle	Black	Push-Pull
TE Connectivity Raychem Cable Protection 4-2316108-0	2 mm	0.079 in	125 °C	-40 °C	0.079 in	2 mm	Free Hanging (In-Line)	Crimp	Female Socket	2	Liquid Crystal Polymer (LCP)	40	Receptacle	Black	Push-Pull
TE Connectivity Raychem Cable Protection 4-2316108-8	2 mm	0.079 in	125 °C	-40 °C	0.079 in	2 mm	Free Hanging (In-Line)	Crimp	Female Socket	2	Liquid Crystal Polymer (LCP)	48	Receptacle	Black	Push-Pull

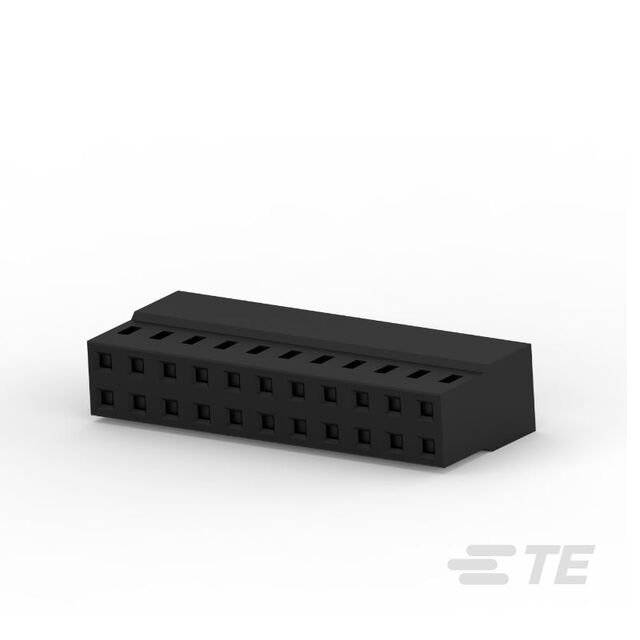

TE Connectivity Raychem Cable Protection 2-2316108-2	2 mm	0.079 in	125 °C	-40 °C	0.079 in	2 mm	Free Hanging (In-Line)	Crimp	Female Socket	2	Liquid Crystal Polymer (LCP)	22 positions	Receptacle	Black	Push-Pull
TE Connectivity Raychem Cable Protection 3-2316108-0	2 mm	0.079 in	125 °C	-40 °C	0.079 in	2 mm	Free Hanging (In-Line)	Crimp	Female Socket	2	Liquid Crystal Polymer (LCP)	30	Receptacle	Black	Push-Pull

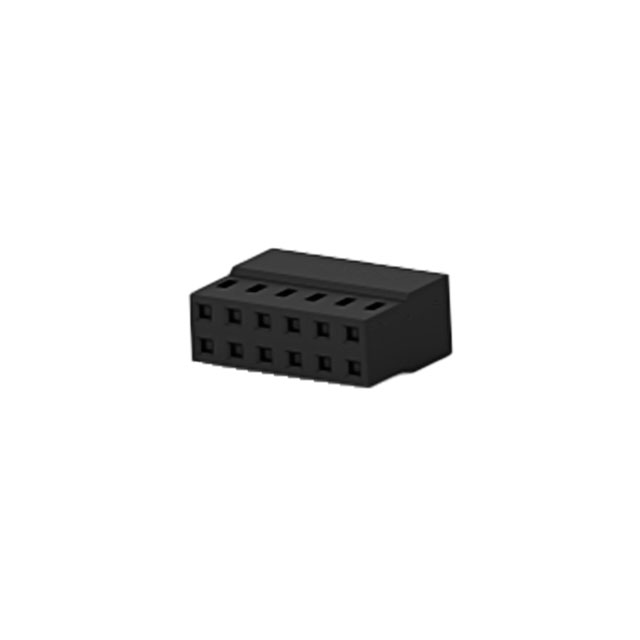

TE Connectivity Raychem Cable Protection 1-2316108-2	2 mm	0.079 in	125 °C	-40 °C	0.079 in	2 mm	Free Hanging (In-Line)	Crimp	Female Socket	2	Liquid Crystal Polymer (LCP)	12	Receptacle	Black		Contacts Not Included

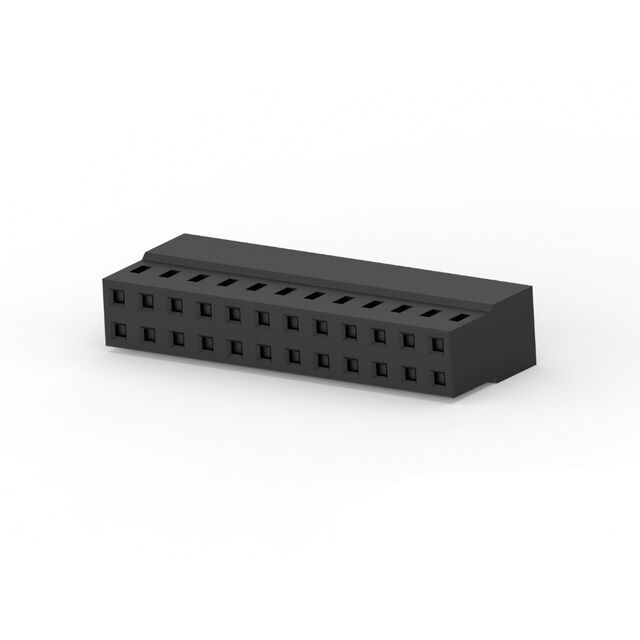

TE Connectivity Raychem Cable Protection 2-2316108-4	2 mm	0.079 in	125 °C	-40 °C	0.079 in	2 mm	Free Hanging (In-Line)	Crimp	Female Socket	2	Liquid Crystal Polymer (LCP)	24	Receptacle	Black	Push-Pull

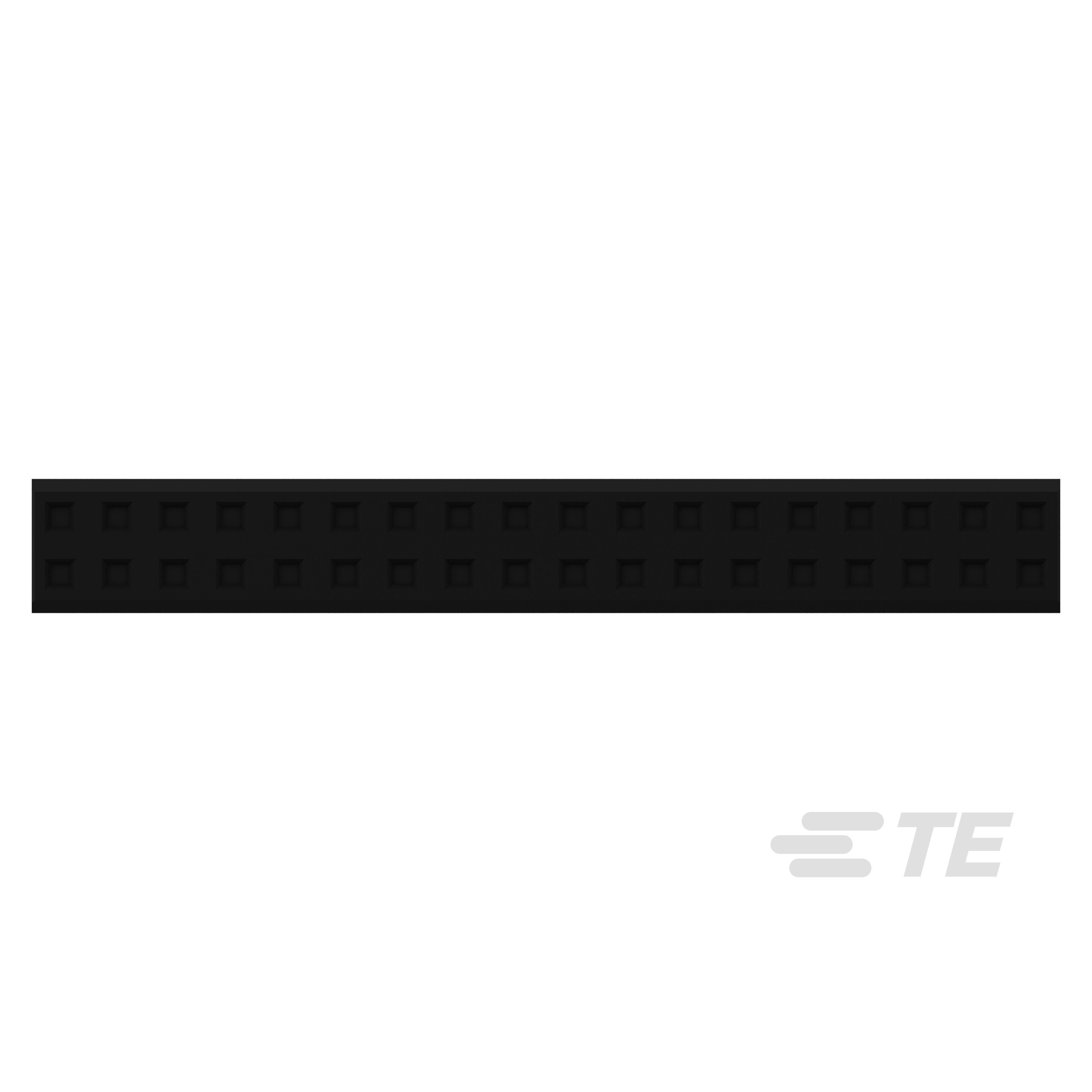

TE Connectivity Raychem Cable Protection 3-2316108-6	2 mm	0.079 in	125 °C	-40 °C	0.079 in	2 mm	Free Hanging (In-Line)	Crimp	Female Socket	2	Liquid Crystal Polymer (LCP)	36	Receptacle	Black	Push-Pull

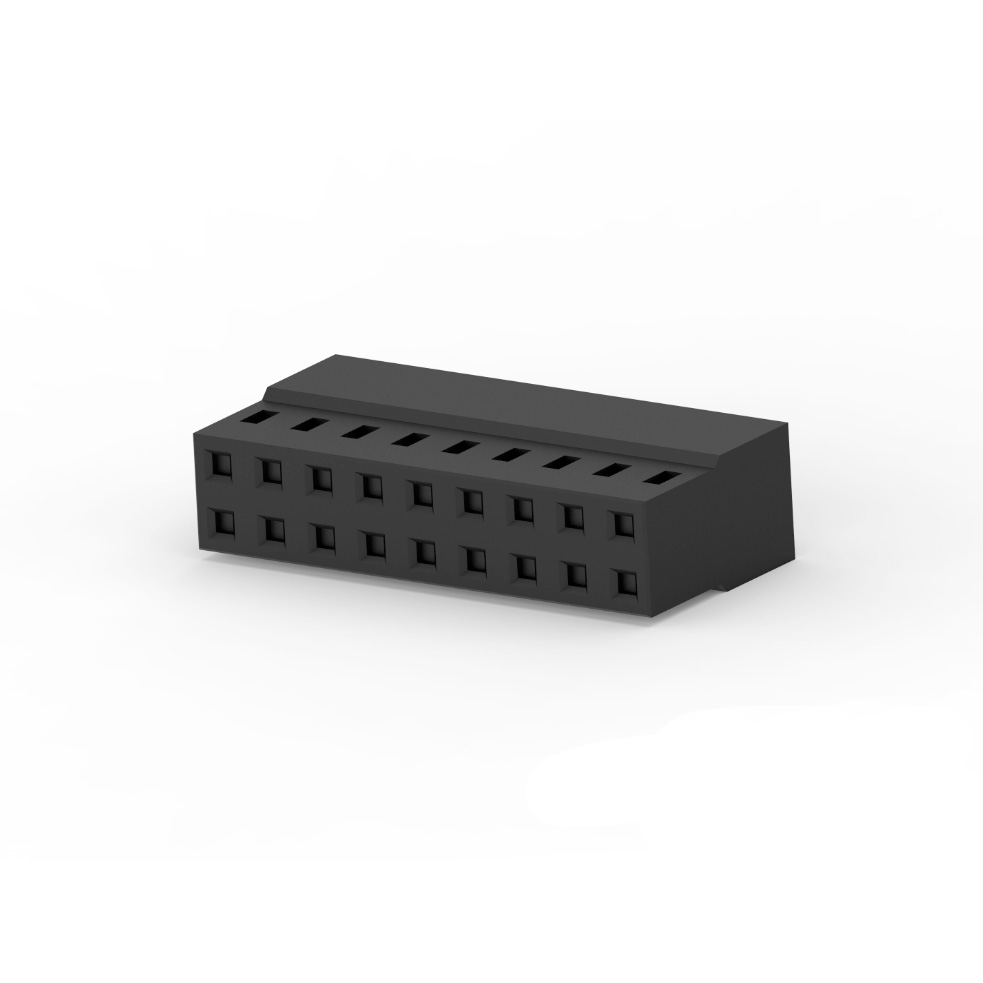

TE Connectivity Raychem Cable Protection 1-2316108-8	2 mm	0.079 in	125 °C	-40 °C	0.079 in	2 mm	Free Hanging (In-Line)	Crimp	Female Socket	2	Liquid Crystal Polymer (LCP)	18	Receptacle	Black	Push-Pull

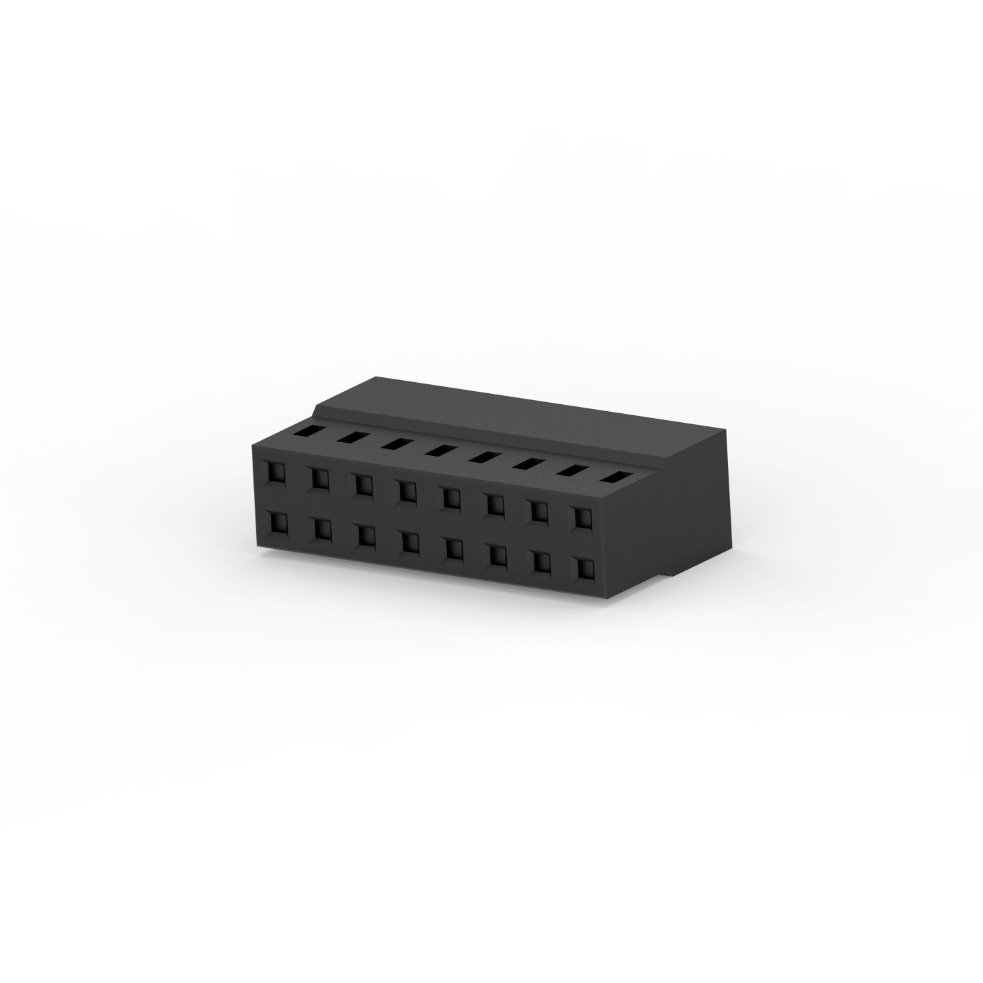

TE Connectivity Raychem Cable Protection 1-2316108-6	2 mm	0.079 in	125 °C	-40 °C	0.079 in	2 mm	Free Hanging (In-Line)	Crimp	Female Socket	2	Liquid Crystal Polymer (LCP)		Receptacle	Black	Push-Pull		16
