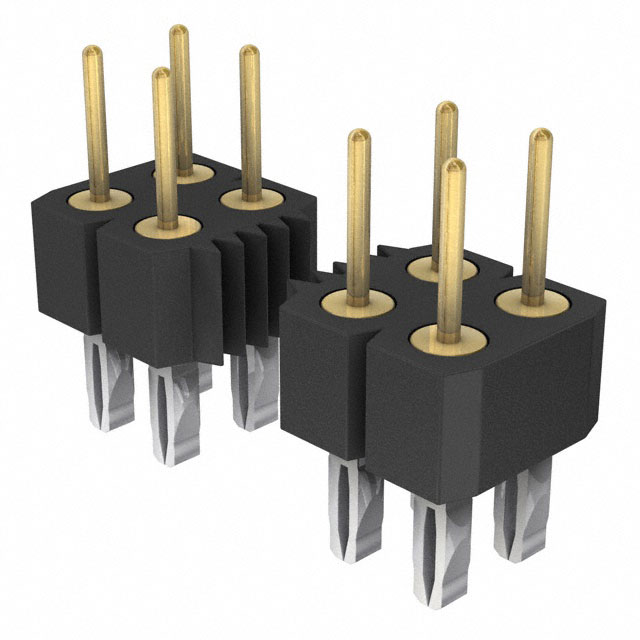

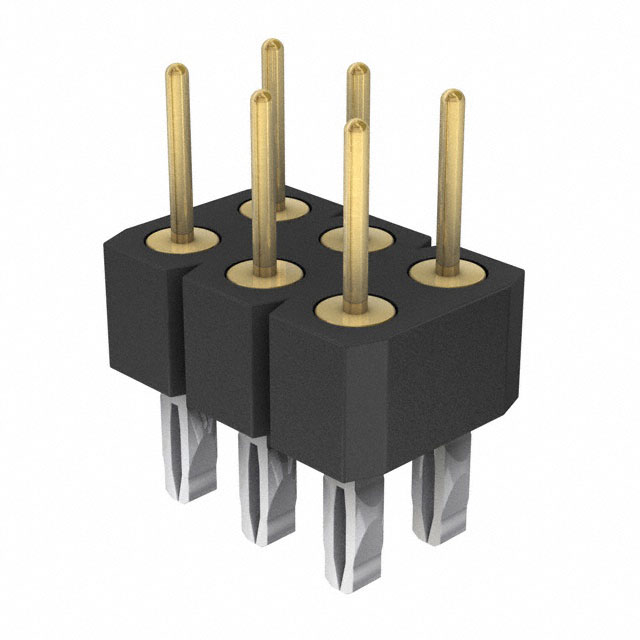

456-V3 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN HEADER VERT 20POS 2.54MM
| Part | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Post | Shrouding | Contact Length - Post [custom] | Contact Length - Post | Contact Type | Connector Type | Number of Positions | Contact Shape | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Termination | Number of Rows [custom] | Overall Contact Length | Overall Contact Length | Insulation Color | Fastening Type | Number of Positions Loaded | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Length - Mating | Contact Length - Mating | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | Gold | 3 A | Through Hole | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Unshrouded | 0.11 in | 2.79 mm | Male Pin | Header | 20 | Circular | 29.5 µin | 0.75 µm | Press-Fit Solder | 2 | 9.6 mm | 0.378 in | Black | Push-Pull | All | 150 VDC | -55 C | 125 °C | Bronze | 0.141 in | 3.6 mm | |
 Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | Gold | 3 A | Through Hole | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Unshrouded | 0.11 in | 2.79 mm | Male Pin | Header | 6 | Circular | 29.5 µin | 0.75 µm | Press-Fit Solder | 2 | 9.6 mm | 0.378 in | Black | Push-Pull | All | 150 VDC | -55 C | 125 °C | Bronze | 0.141 in | 3.6 mm | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | Gold | 3 A | Through Hole | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Unshrouded | 0.11 in | 2.79 mm | Male Pin | Header | 56 | Circular | 29.5 µin | 0.75 µm | Press-Fit Solder | 2 | 9.6 mm | 0.378 in | Black | Push-Pull | All | 150 VDC | -55 C | 125 °C | Bronze | 0.141 in | 3.6 mm | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | Gold | 3 A | Through Hole | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Unshrouded | 0.11 in | 2.79 mm | Male Pin | Header | 22 | Circular | 29.5 µin | 0.75 µm | Press-Fit Solder | 2 | 9.6 mm | 0.378 in | Black | Push-Pull | All | 150 VDC | -55 C | 125 °C | Bronze | 0.141 in | 3.6 mm | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | Gold | 3 A | Through Hole | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Unshrouded | 0.11 in | 2.79 mm | Male Pin | Header | 54 | Circular | 29.5 µin | 0.75 µm | Press-Fit Solder | 2 | 9.6 mm | 0.378 in | Black | Push-Pull | All | 150 VDC | -55 C | 125 °C | Bronze | 0.141 in | 3.6 mm | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | Gold | 3 A | Through Hole | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Unshrouded | 0.11 in | 2.79 mm | Male Pin | Header | 64 | Circular | 29.5 µin | 0.75 µm | Press-Fit Solder | 2 | 9.6 mm | 0.378 in | Black | Push-Pull | All | 150 VDC | -55 C | 125 °C | Bronze | 0.141 in | 3.6 mm | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | Gold | 3 A | Through Hole | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Unshrouded | 0.11 in | 2.79 mm | Male Pin | Header | Circular | 29.5 µin | 0.75 µm | Press-Fit Solder | 2 | 9.6 mm | 0.378 in | Black | Push-Pull | All | 150 VDC | -55 C | 125 °C | Bronze | 0.141 in | 3.6 mm | ||
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | Gold | 3 A | Through Hole | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Unshrouded | 0.11 in | 2.79 mm | Male Pin | Header | 72 | Circular | 29.5 µin | 0.75 µm | Press-Fit Solder | 2 | 9.6 mm | 0.378 in | Black | Push-Pull | All | 150 VDC | -55 C | 125 °C | Bronze | 0.141 in | 3.6 mm | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | Gold | 3 A | Through Hole | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Unshrouded | 0.11 in | 2.79 mm | Male Pin | Header | 26 | Circular | 29.5 µin | 0.75 µm | Press-Fit Solder | 2 | 9.6 mm | 0.378 in | Black | Push-Pull | All | 150 VDC | -55 C | 125 °C | Bronze | 0.141 in | 3.6 mm | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | Gold | 3 A | Through Hole | UL94 V-0 | 0.1 in | 2.54 mm | Tin | Unshrouded | 0.11 in | 2.79 mm | Male Pin | Header | Circular | 29.5 µin | 0.75 µm | Press-Fit Solder | 2 | 9.6 mm | 0.378 in | Black | Push-Pull | All | 150 VDC | -55 C | 125 °C | Bronze | 0.141 in | 3.6 mm | 34 |
