VTP100 Series
Manufacturer: Excelitas Technologies
Beta
⌘K

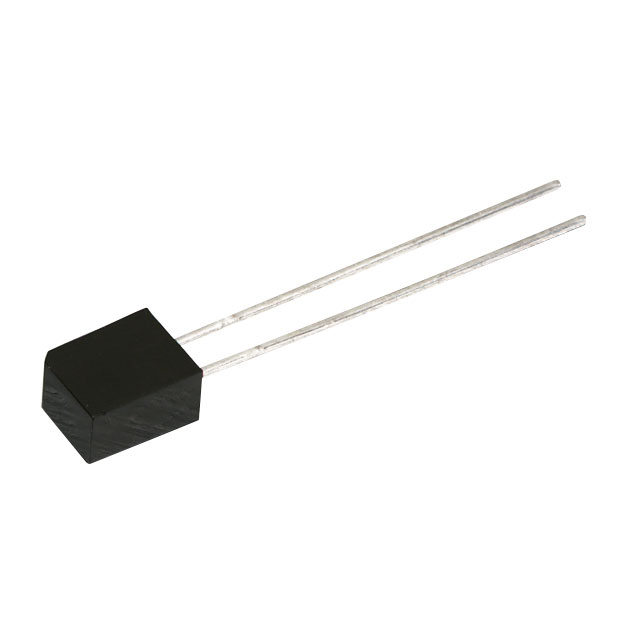

SENSOR PHOTODIODE 925NM RADIAL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Viewing Angle | Mounting Type | Wavelength | Active Area | Package / Case | Current - Dark (Typ) | Voltage - DC Reverse (Vr) (Max) [Max] | Spectral Range [Min] | Spectral Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Excelitas Technologies | -40 C | 100 °C | 140 ° | Through Hole | 925 nm | 7.45 mm² | Radial Side View | 30 nA | 140 V | 725 nm | 1150 nm |
