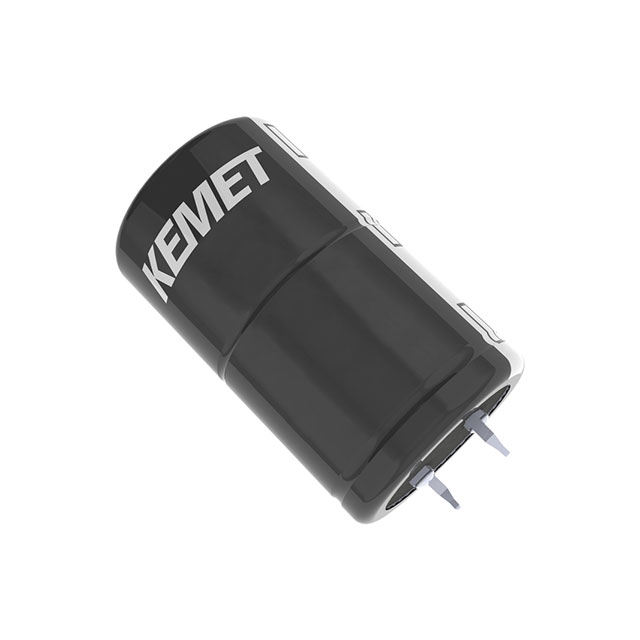

ALA7DA Series

Manufacturer: KEMET

Catalog

CAP ALUM 130UF 20% 600V SNAP TH

Part	Lifetime @ Temp.	Mounting Type	Tolerance	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension	Size / Dimension [diameter]	Ratings	Voltage - Rated	Package / Case	Polarization	Impedance	Ripple Current @ High Frequency	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]
KEMET ALA7DA131CC600	13000 Hrs	Through Hole	20 %	1.4 A	0.394 in	10 mm	37 mm	1.457 in	980 mOhm	Automotive	85 °C	-40 C	30 mm	1.181 "	AEC-Q200	600 V	Radial Can - Snap-In	Polar	676 mOhms	3 A	130 µF
KEMET ALA7DA621CF400	13000 Hrs	Through Hole	20 %	1.52 A					285 mOhm	Automotive	85 °C	-40 C	30 mm	1.181 "	AEC-Q200	400 V	Radial Can - Snap-In	Polar	780.2 mOhms	2.97 A	620 µF	2.047 in	52 mm
KEMET ALA7DA561EF550	18000 Hrs	Through Hole	20 %	3.2 A	0.394 in	10 mm			315 mOhm	Automotive	85 °C	-40 C		1.575 in	AEC-Q200	550 V	Radial Can - Snap-In	Polar	220 mOhms	6.1 A	560 µF	2.047 in	52 mm	40 mm
KEMET ALA7DA241CC500	13000 Hrs	Through Hole	20 %	1.71 A			37 mm	1.457 in	1.032 Ohm	Automotive	85 °C	-40 C	30 mm	1.181 "	AEC-Q200	500 V	Radial Can - Snap-In	Polar		3.96 A	240 µF
KEMET ALA7DA221DD600	15000 Hrs	Through Hole	20 %	2 A	0.394 in	10 mm		1.654 in	585 mOhm	Automotive	85 °C	-40 C		1.378 "	AEC-Q200	600 V	Radial Can - Snap-In	Polar	405 mOhms	4.2 A	220 µF			35 mm	42 mm
KEMET ALA7DA301DD550	15000 Hrs	Through Hole	20 %	2.1 A	0.394 in	10 mm		1.654 in	572 mOhm	Automotive	85 °C	-40 C		1.378 "	AEC-Q200	550 V	Radial Can - Snap-In	Polar	396 mOhms	4.2 A	300 µF			35 mm	42 mm
KEMET ALA7DA181CE600	13000 Hrs	Through Hole	20 %	1.7 A	0.394 in	10 mm			708 mOhm	Automotive	85 °C	-40 C	30 mm	1.181 "	AEC-Q200	600 V	Radial Can - Snap-In	Polar	488 mOhms	3.8 A	180 µF	1.85 in	47 mm
KEMET ALA7DA241DE600	15000 Hrs	Through Hole	20 %	2.2 A	0.394 in	10 mm	77 mm		535 mOhm	Automotive	85 °C	-40 C		1.575 in	AEC-Q200	600 V	Radial Can - Snap-In	Polar	370 mOhms	4.6 A	240 µF	3.031 in		40 mm
KEMET ALA7DA161CD600	13000 Hrs	Through Hole	20 %	1.6 A	0.394 in	10 mm		1.654 in	797 mOhm	Automotive	85 °C	-40 C	30 mm	1.181 "	AEC-Q200	600 V	Radial Can - Snap-In	Polar	550 mOhms	3.5 A	160 µF				42 mm
KEMET ALA7DA271CE550	13000 Hrs	Through Hole	20 %	1.9 A	0.394 in	10 mm			630 mOhm	Automotive	85 °C	-40 C	30 mm	1.181 "	AEC-Q200	550 V	Radial Can - Snap-In	Polar	435 mOhms	3.9 A	270 µF	1.85 in	47 mm
